Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

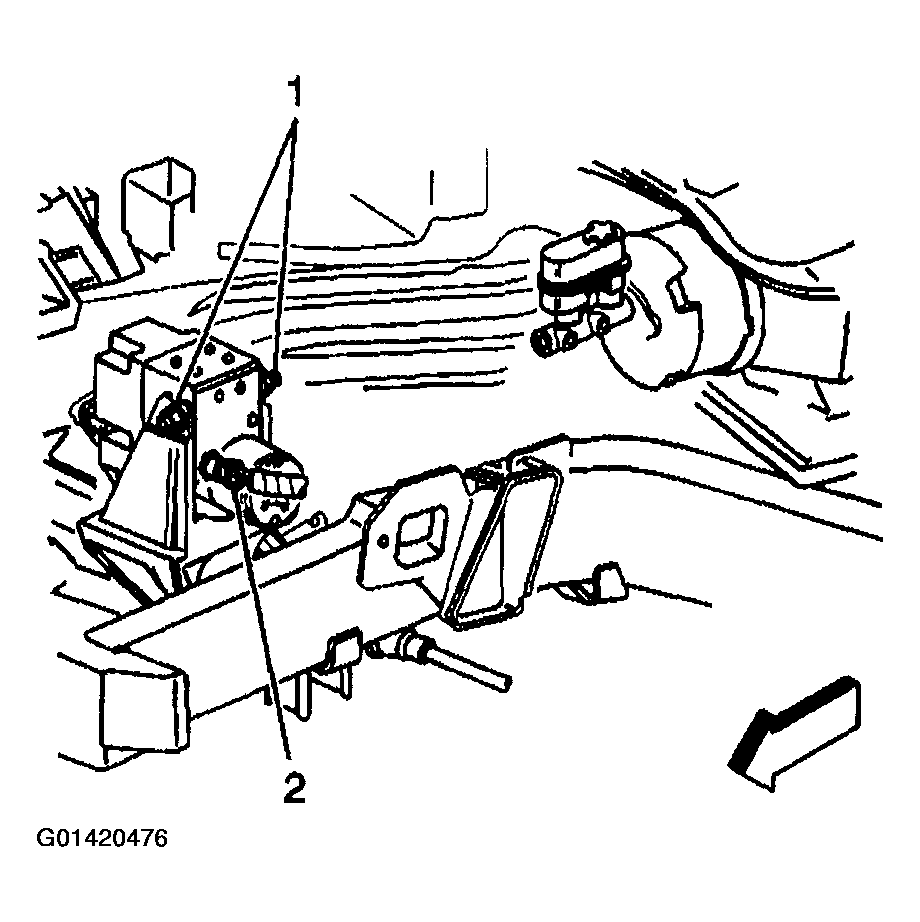

Fig 1: Installing Brake Fluid Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Install the brake fluid pressure sensor to the EBCM in the vehicle.
Tighten

Tighten the switch to 22 N.m (16 lb ft).
Connect the brake pressure sensor electrical connector.
Reposition the EBCM to the support bracket and tighten the insulator nuts (1).
Tighten

Tighten the nuts to 12 N.m (106 lb in).
Install and connect the radiator inlet hose.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
Perform the DIAGNOSTIC SYSTEM CHECK - ABS .
