Circuit Protection Devices
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

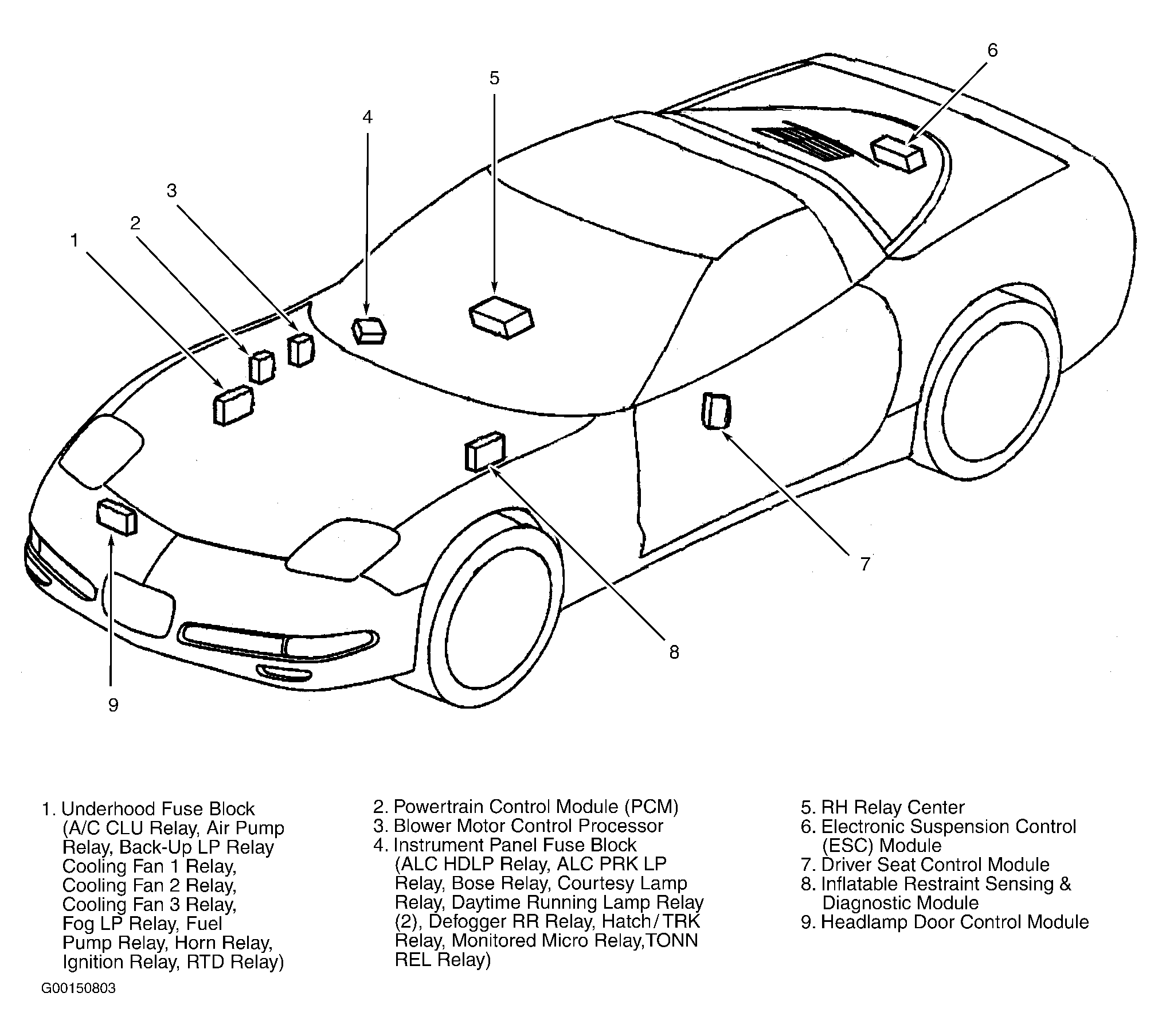

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Instrument Panel Fuse Block | In right front footwell, mounted to toe board. See Figure . |
| LH Relay Center | Under center of left seat. |
| RH Relay Center | Under center of right seat. See Figure . |
| Underhood Fuse Block | On right side of engine compartment. See Figure . |
