Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION in Cautions and Notices.
  1. Install the fog lamp bulb/socket to the fog lamp.

    Rotate the fog lamp bulb/socket clockwise to secure it to the fog lamp.

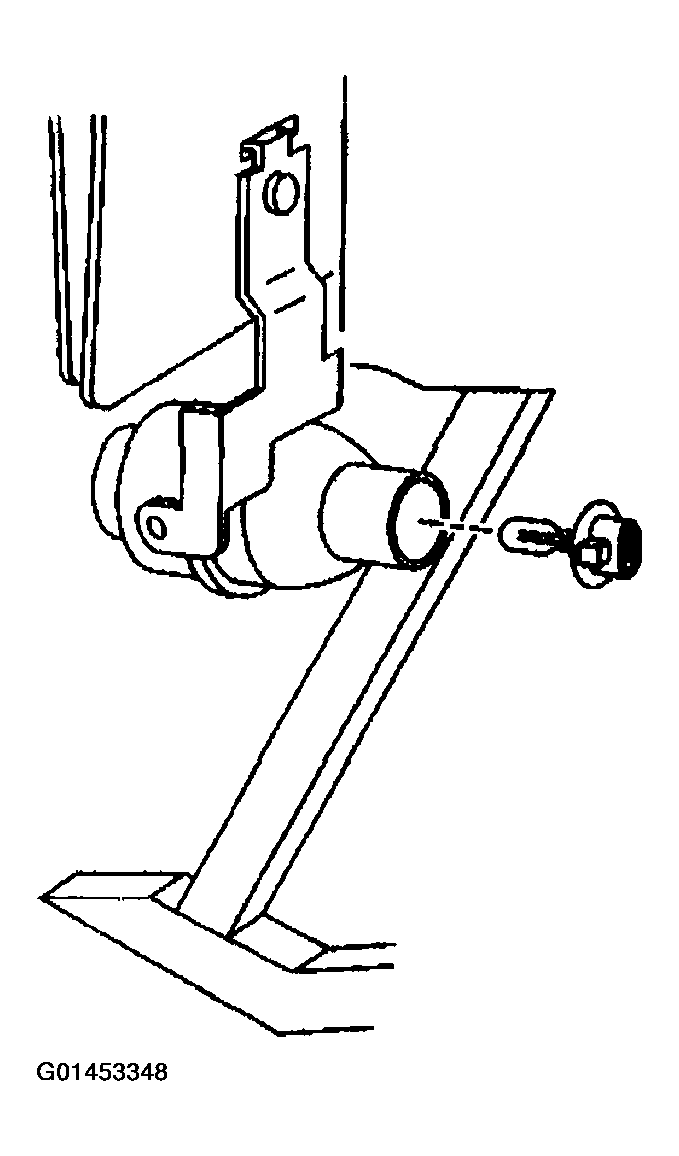

    Fig 1: Installing Fog Lamp Bulb/Socket To Fog Lamp
    G01453348Courtesy of GENERAL MOTORS CORP.
  2. Connect the front fog lamp electrical connector to the fog lamp bulb/socket

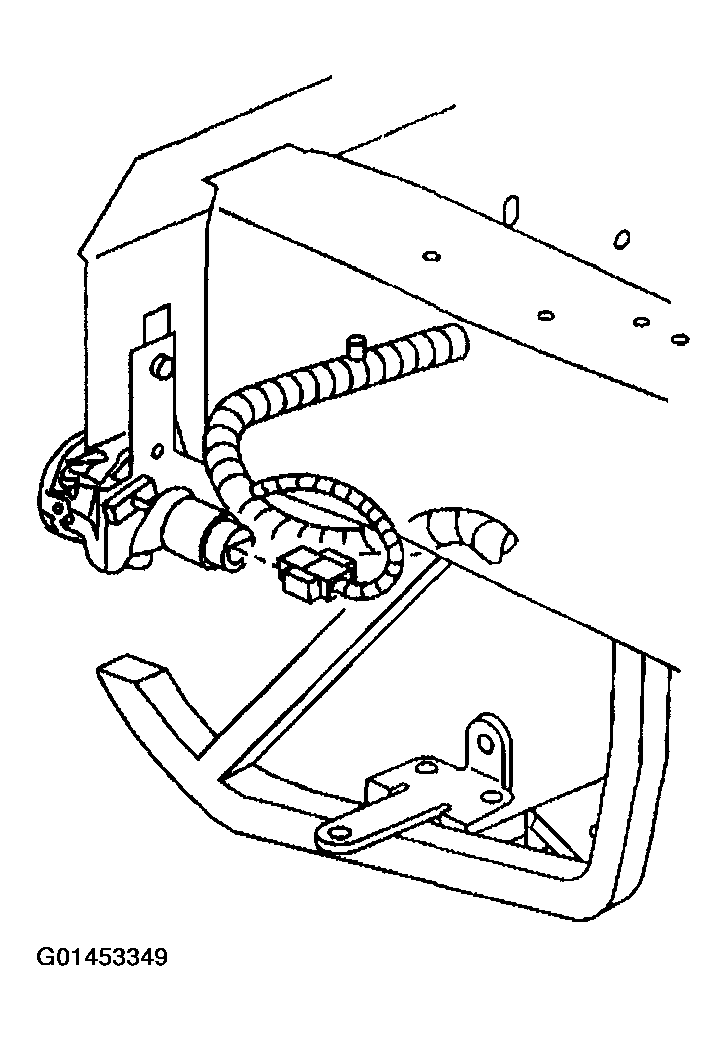

    Fig 2: Connecting Front Fog Lamp Electrical Connector To Fog Lamp Bulb/Socket
    G01453349Courtesy of GENERAL MOTORS CORP.
  3. Position the brake caliper cooling duct to the front fascia, and press to secure.
  4. Install the front fascia lower close out panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER in Bumpers.
  5. Lower the vehicle.
  6. Check and adjust fog lamp aim as necessary. Refer to FOG LAMP AIMING PROCEDURE .
    Fig 3: Positioning Brake Caliper Cooling Duct To Front Fascia
    G01453350Courtesy of GENERAL MOTORS CORP.
