Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp control module into position on the headlamp bracket.
  2. Install the nuts mounting the module to the headlamp bracket.

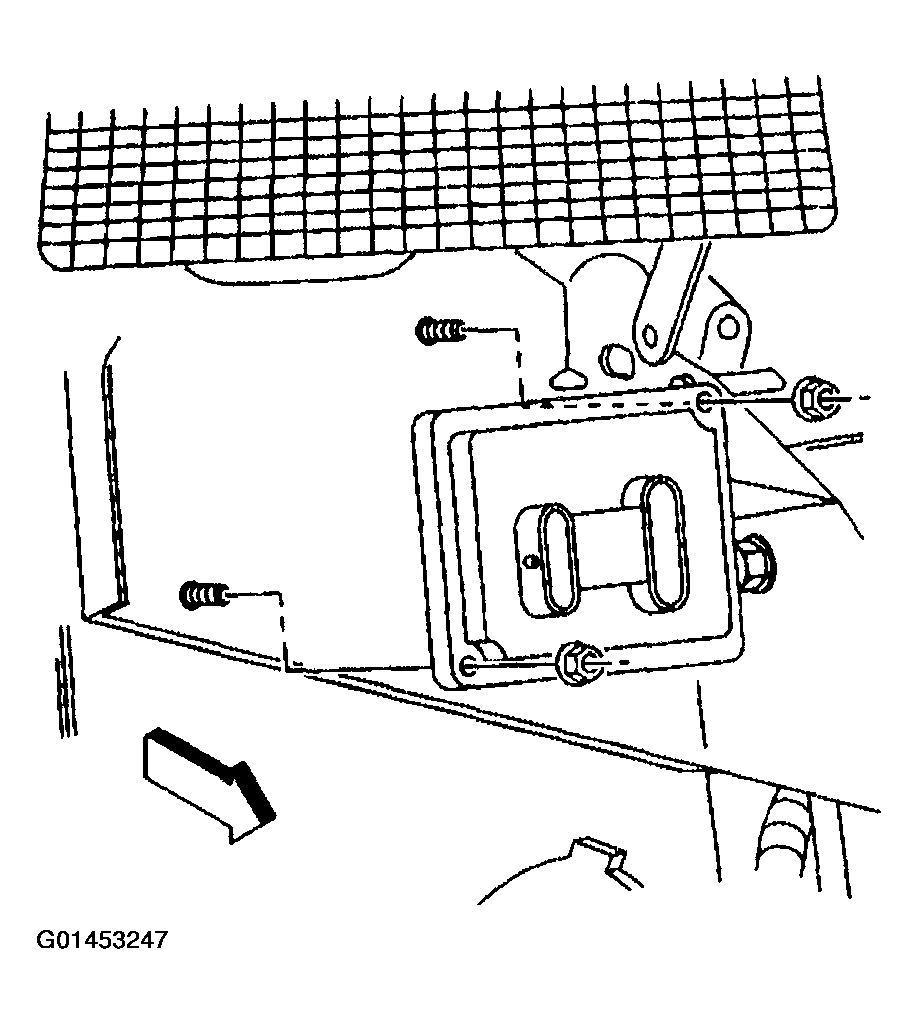

    Fig 1: Installing Headlamp Control Module Into Position On Headlamp Bracket
    G01453247Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors to the module.

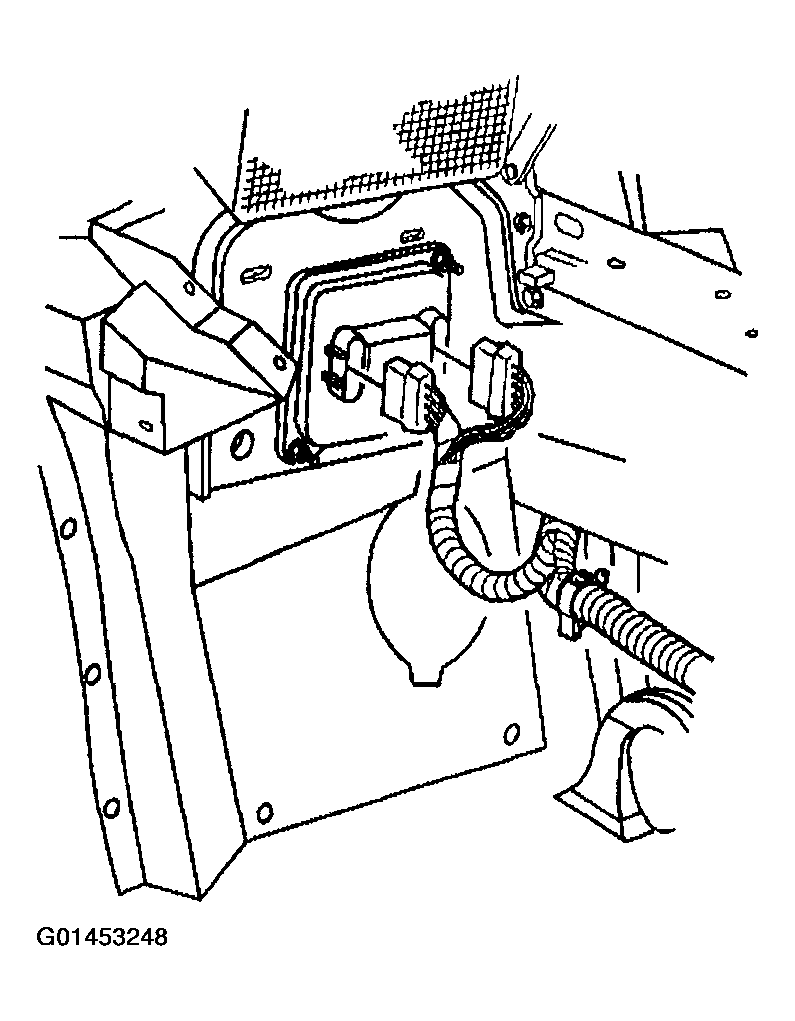

    Fig 2: Connecting Electrical Connectors To Module
    G01453248Courtesy of GENERAL MOTORS CORP.
  4. Position the brake caliper cooling duct to the front fascia and push to secure.
  5. Install the front fascia lower closeout panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER in Bumpers.
  6. Lower the vehicle.

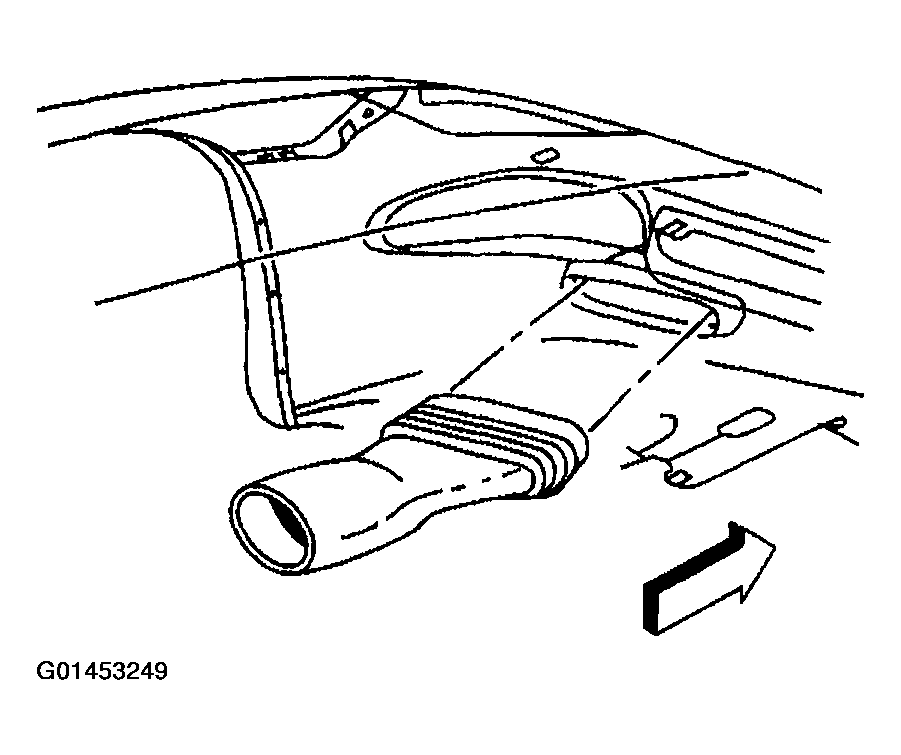

    Fig 3: Positioning Brake Caliper Cooling Duct To Front Fascia
    G01453249Courtesy of GENERAL MOTORS CORP.
  7. Connect the RH headlamp wiring harness electrical connector to the forward lamp wiring harness.
  8. Lower the RH headlamp manually.

    Turn the headlamp motor/actuator manual control knob clockwise to lower the headlamp.

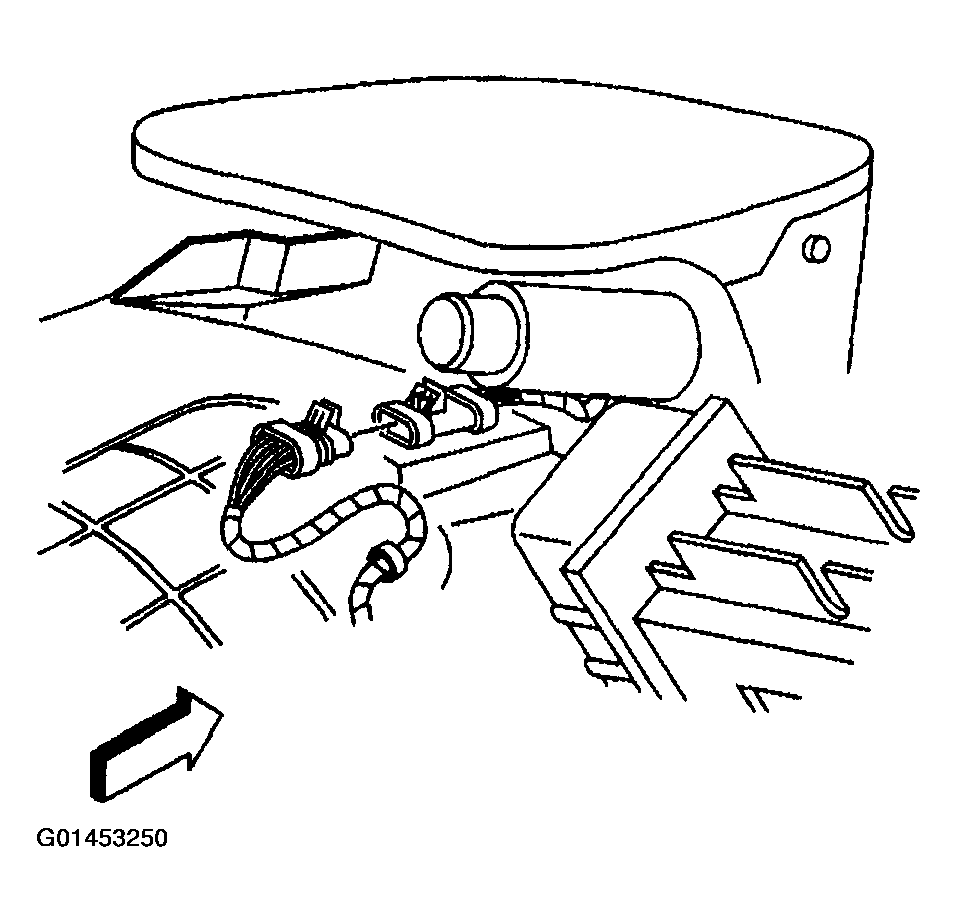

    Fig 4: Connecting RH Headlamp Wiring Harness Electrical Connector
    G01453250Courtesy of GENERAL MOTORS CORP.
  9. Install the headlamp circuit breaker into the IP electrical center.
  10. Install the floor kick up panel covering the IP electrical center.
  11. Close the hood.

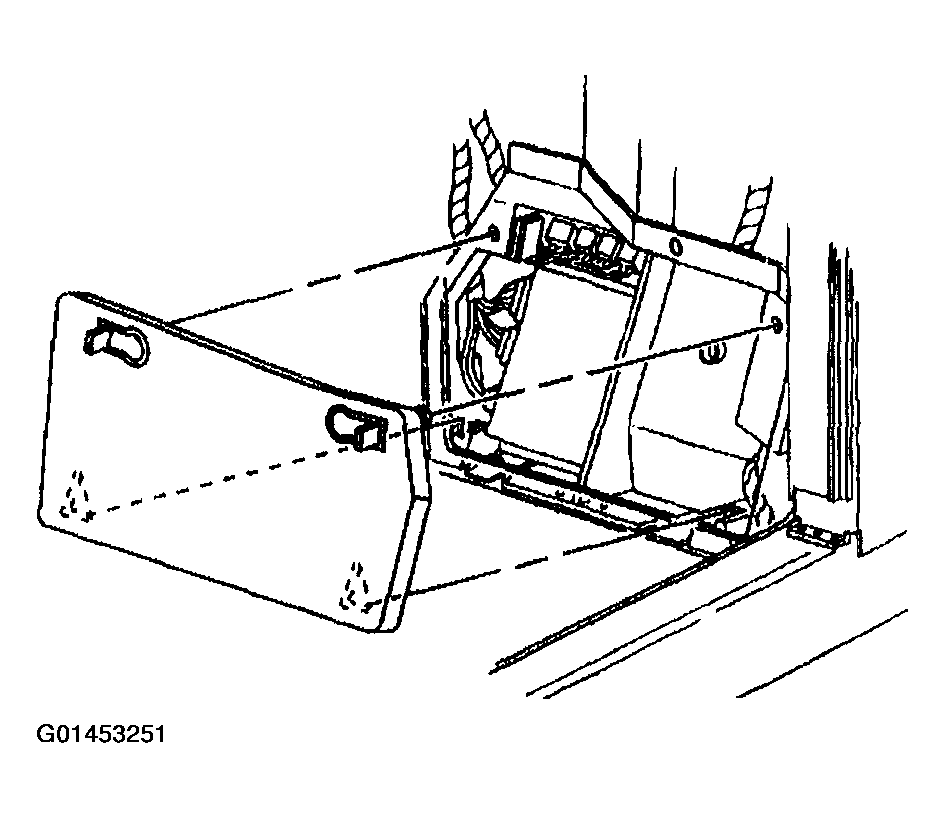

    Fig 5: Installing Floor Kick Up Panel Covering IP Electrical Center
    G01453251Courtesy of GENERAL MOTORS CORP.
