Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the IP compartment lamp and switch unit into the opening in the IP passenger compartment.
  2. Push on the switch snapping the switch into the panel.
  3. Install the IP passenger compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gauges and Console.

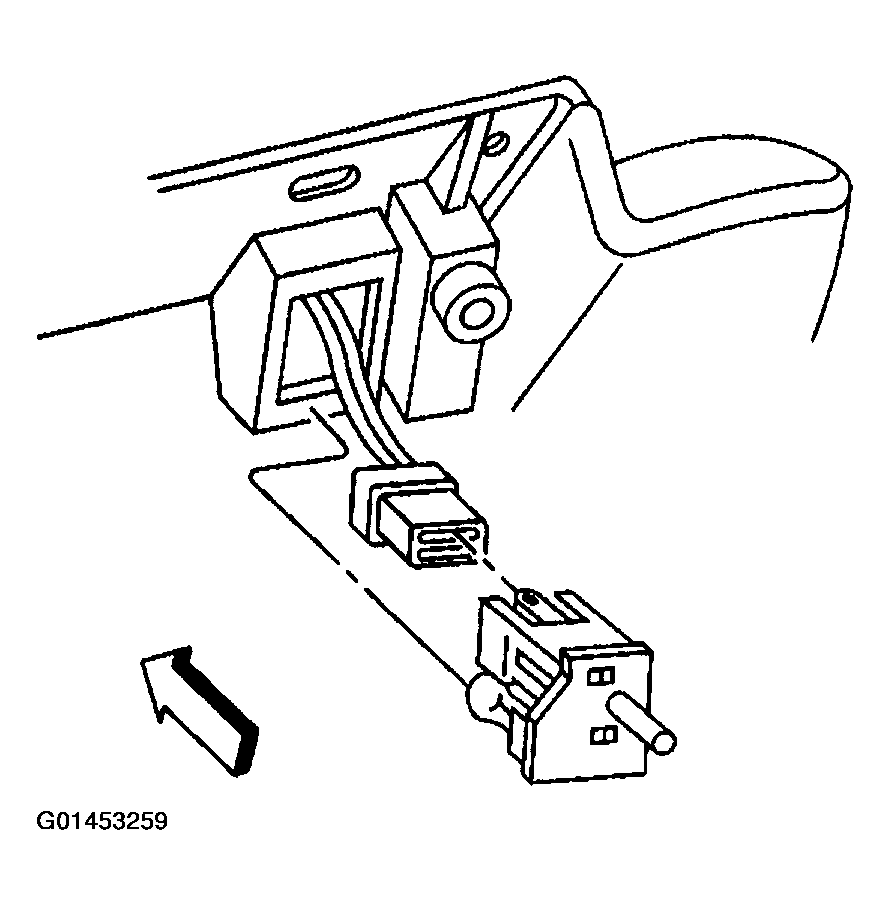

    Fig 1: Positioning IP Compartment Lamp & Switch Unit Into Opening
    G01453259Courtesy of GENERAL MOTORS CORP.
