Cruise Control Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

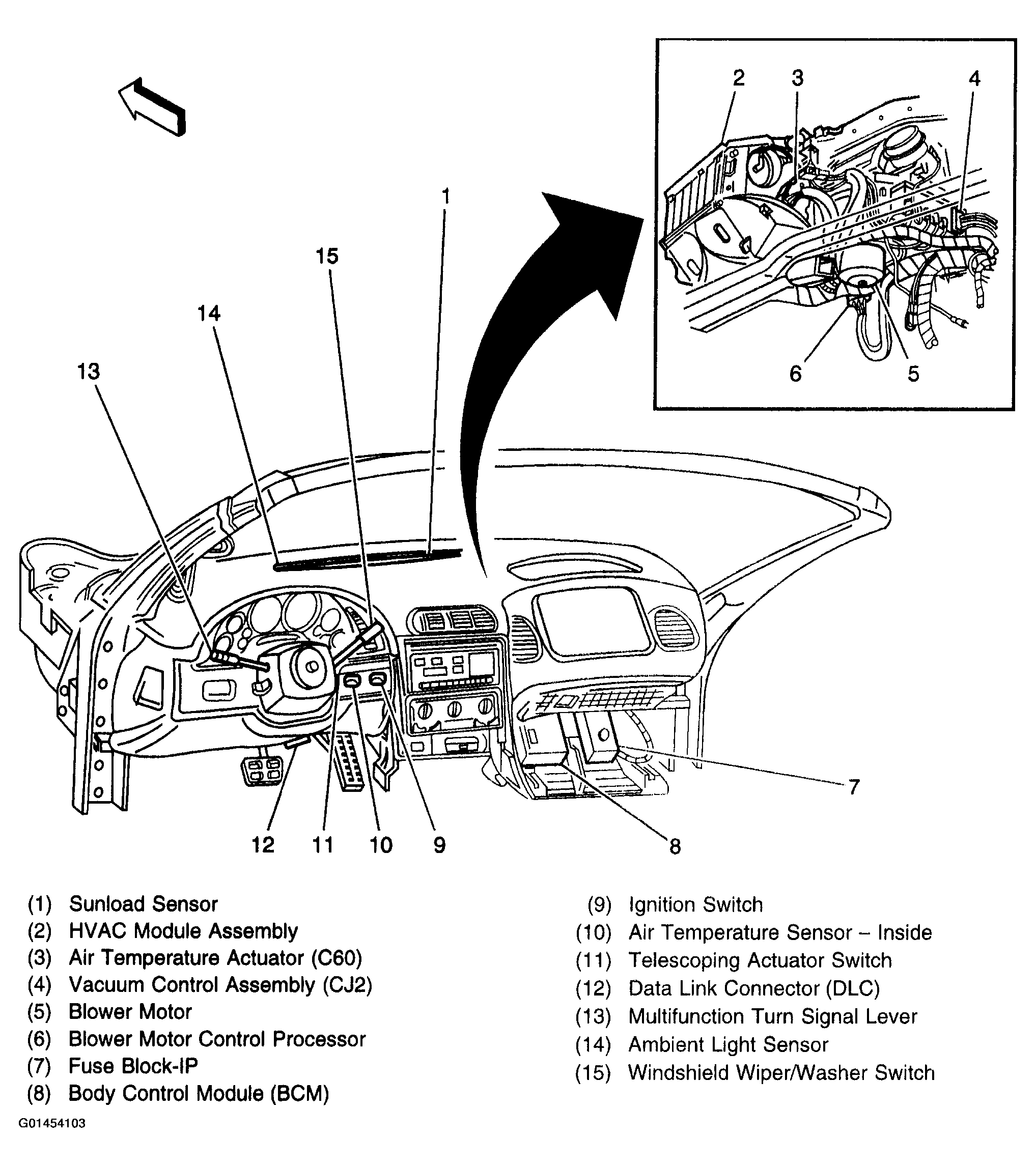

Fig 1: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

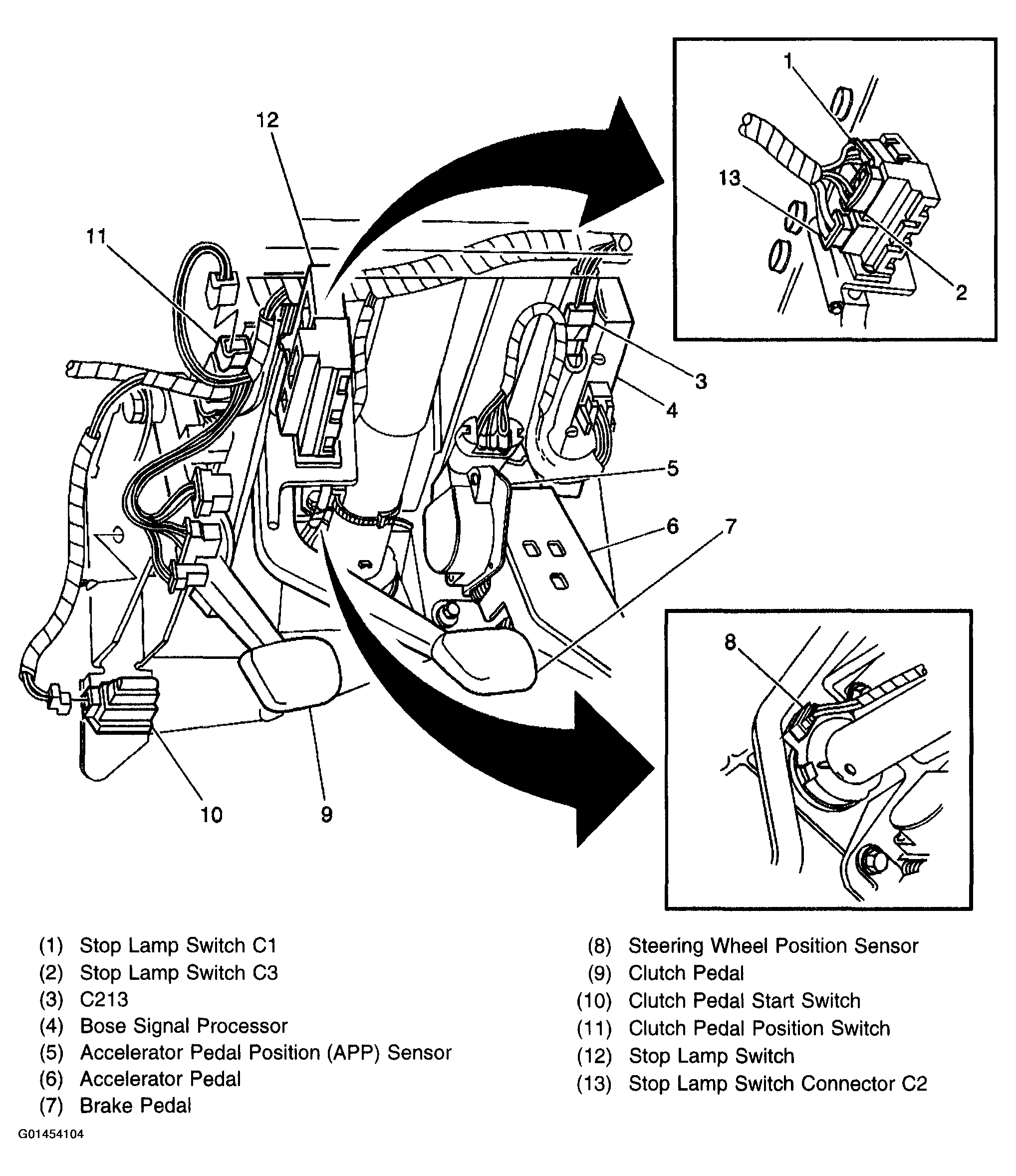

Fig 2: Under Side Of The Dash-Left

Courtesy of GENERAL MOTORS CORP.

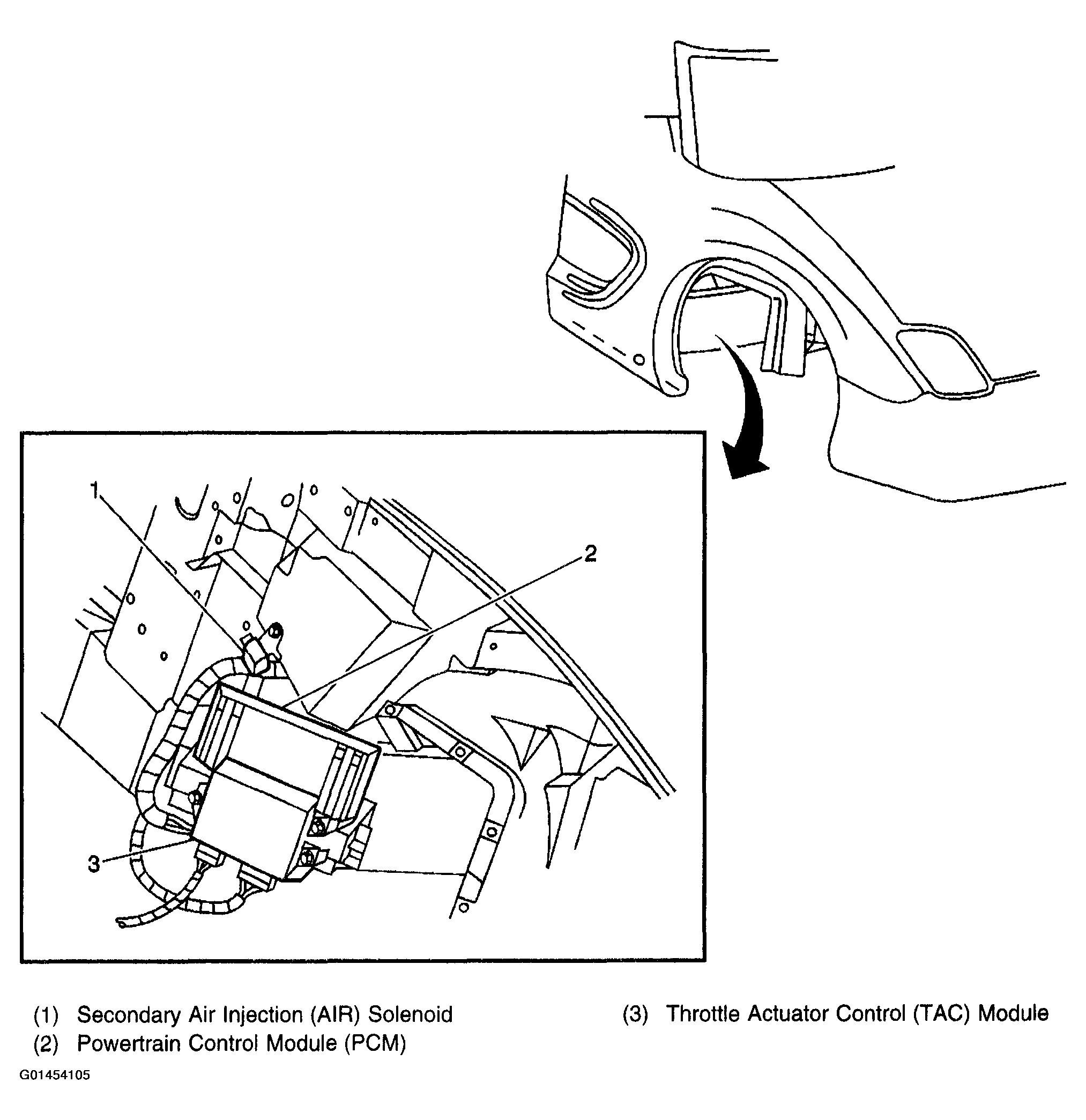

Fig 3: RH Wheel Well

Courtesy of GENERAL MOTORS CORP.
