Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left I/P lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gauges and Console.
  2. Disconnect the cruise control release switch electrical connector.

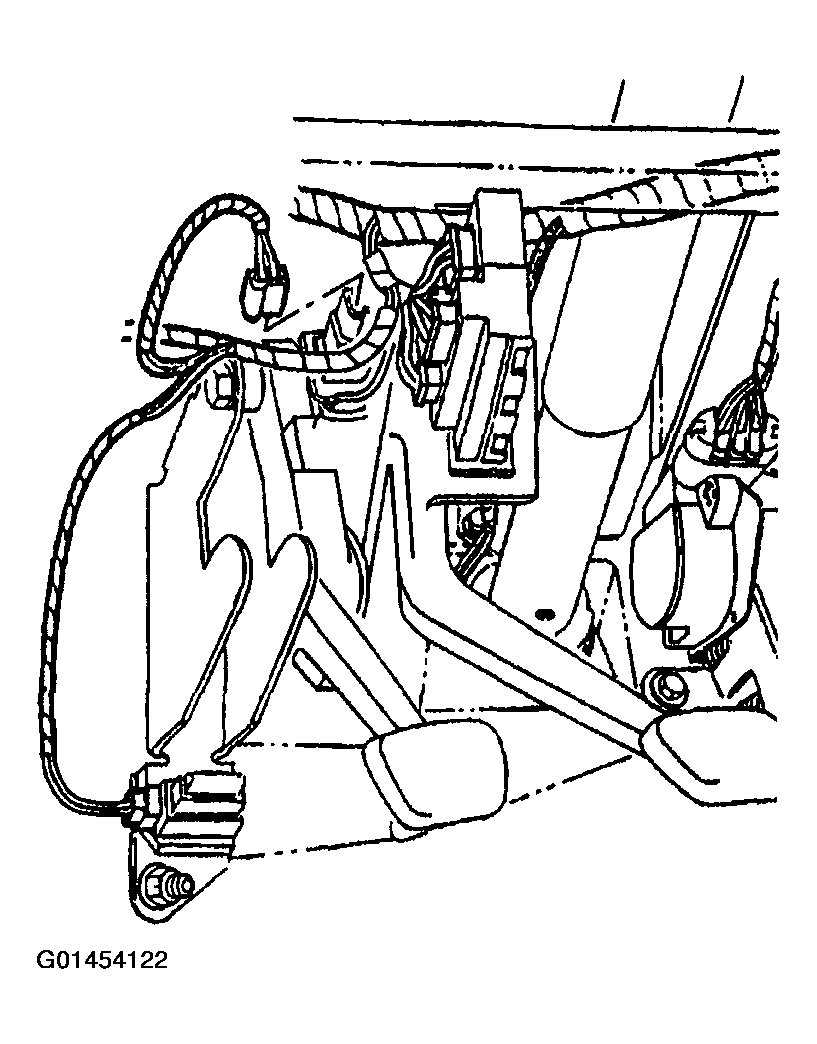

    Fig 1: Disconnecting Cruise Control Release Switch Electrical Connector
    G01454122Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control release switch from the cruise control release switch bracket.

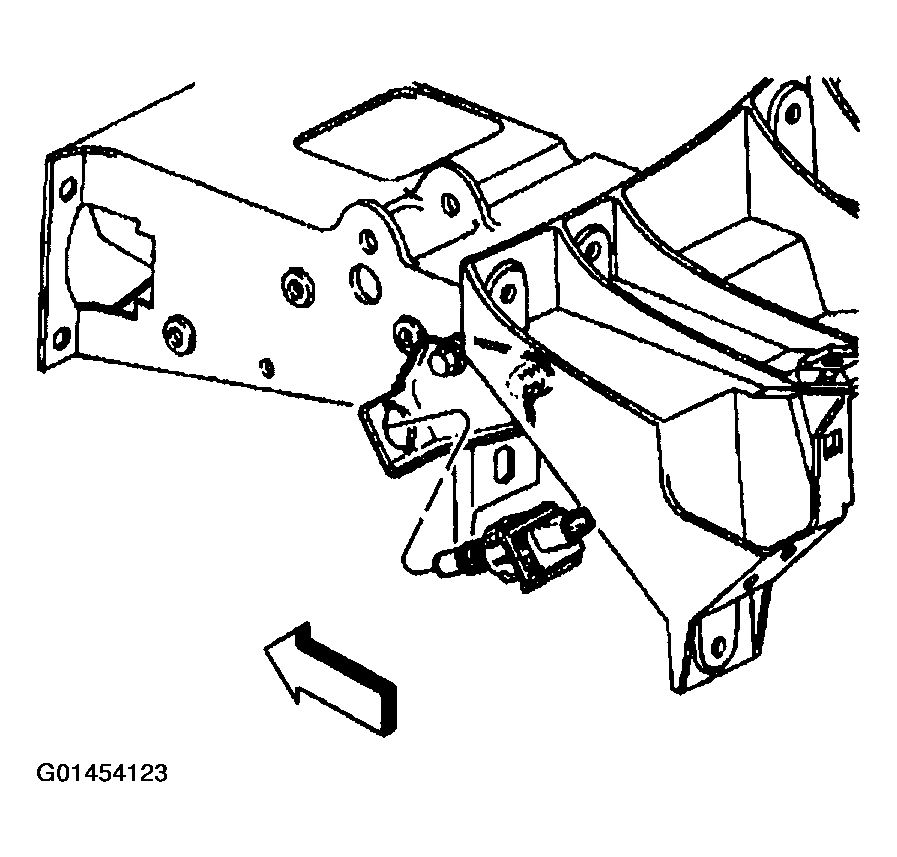

    Fig 2: Cruise Control Release Switch
    G01454123Courtesy of GENERAL MOTORS CORP.
