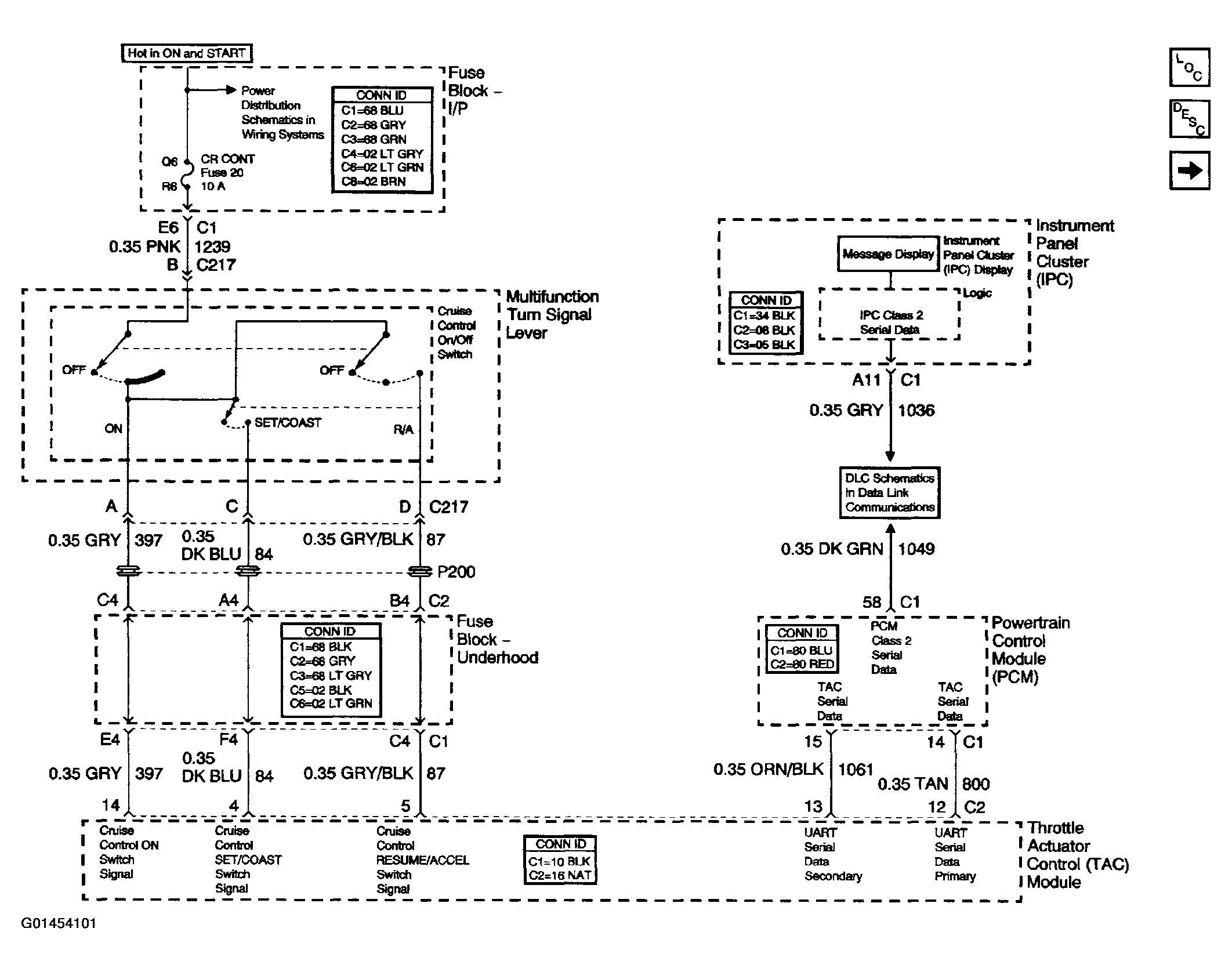

Fig 1: Cruise Control Schematics (Cruise Control Switch, Throttle Actuator Control Motor & Cruise Control Release Switch)
Courtesy of GENERAL MOTORS CORP.

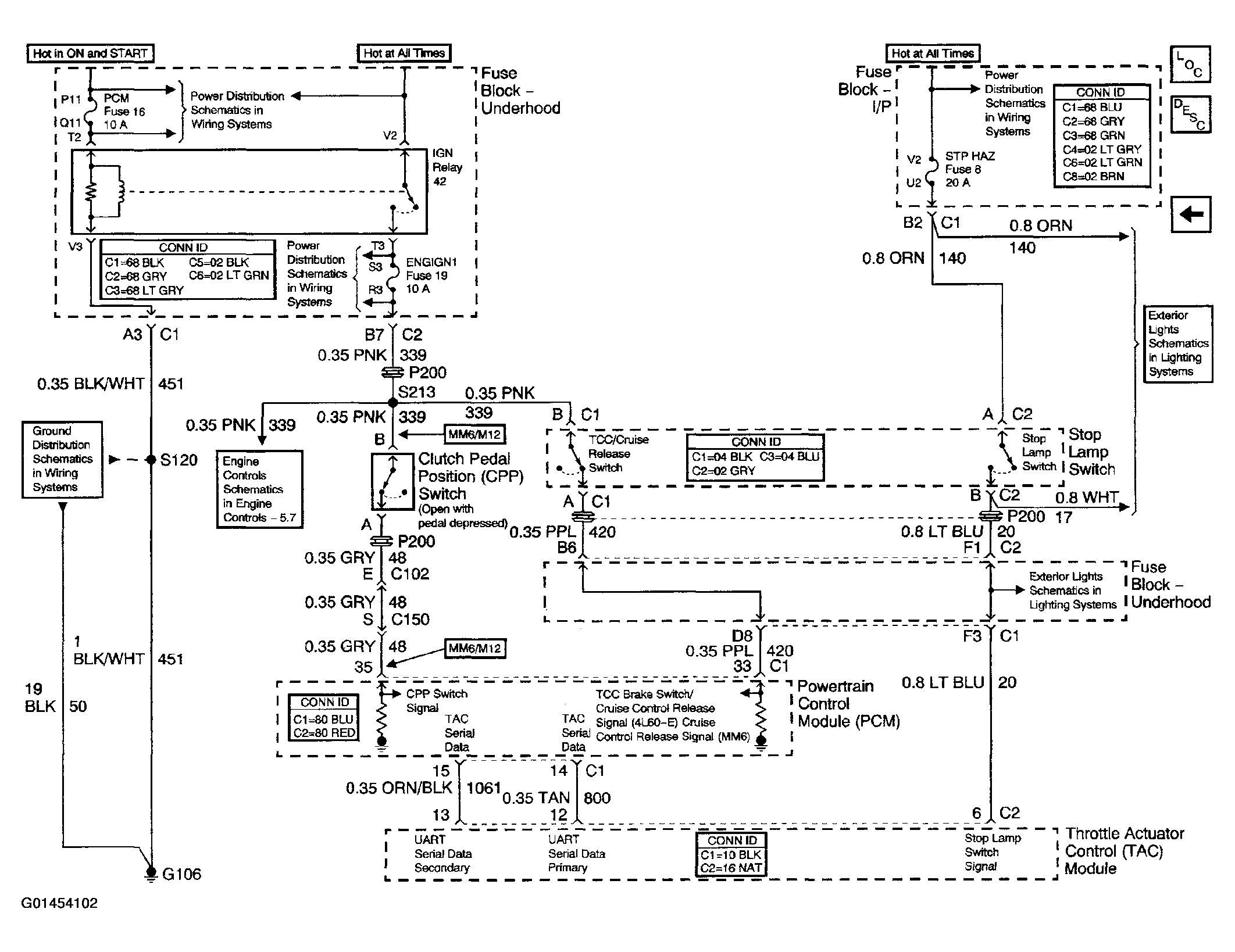

Fig 2: Cruise Control Schematics (Power, Ground & Stoplamp Switch)
