Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Connect harness connectors to the memory seat control module.
Install the memory seat control module to the seat cushion foam support wires.

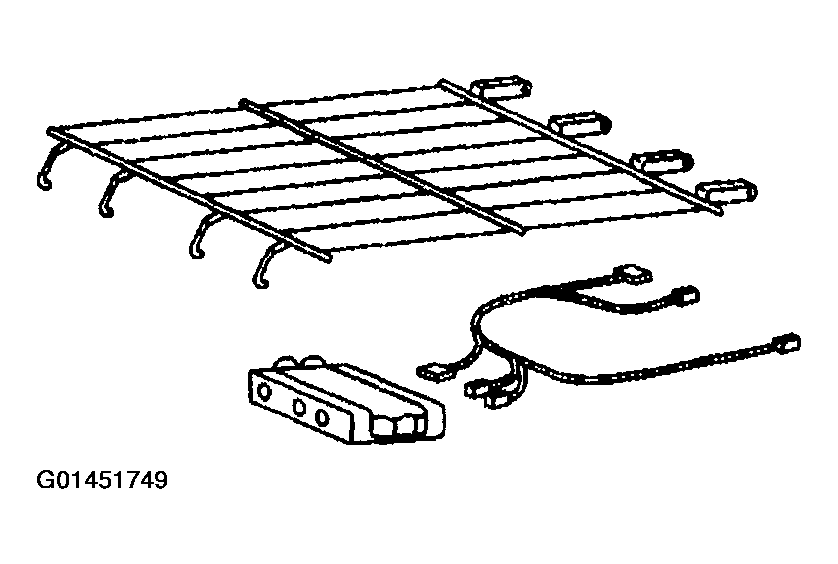

Fig 1: Installing Memory Seat Control Module To Seat Cushion Foam Support Wires
Courtesy of GENERAL MOTORS CORP.
Install the seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL)

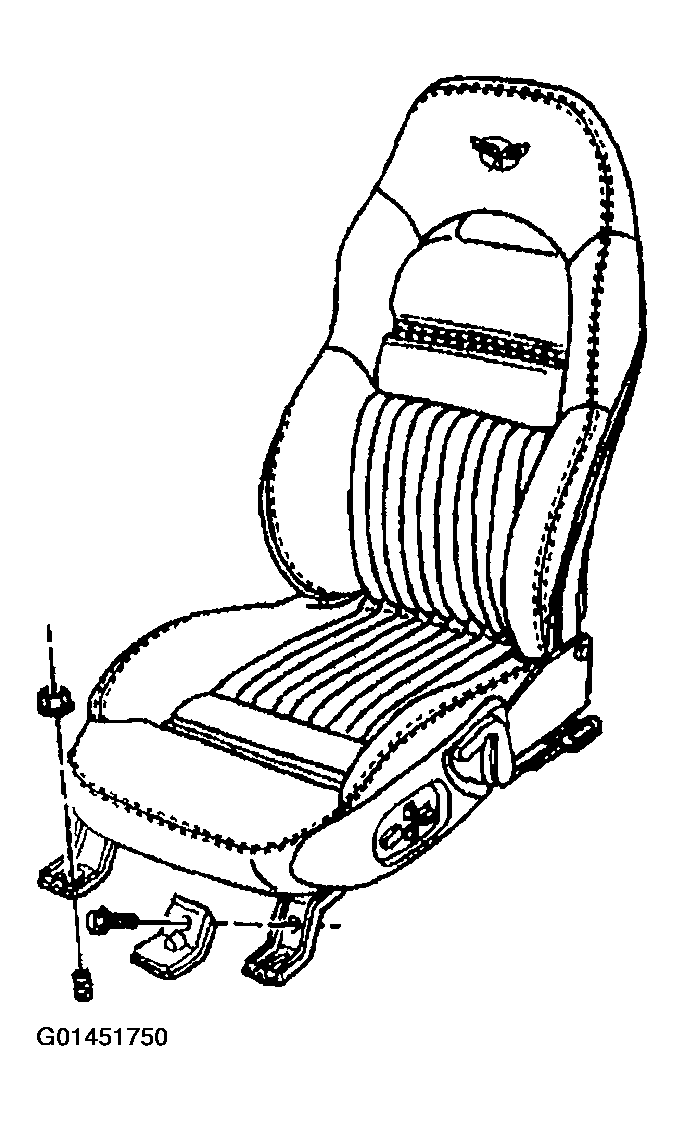

Fig 2: Seat
Courtesy of GENERAL MOTORS CORP.
