Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL) .

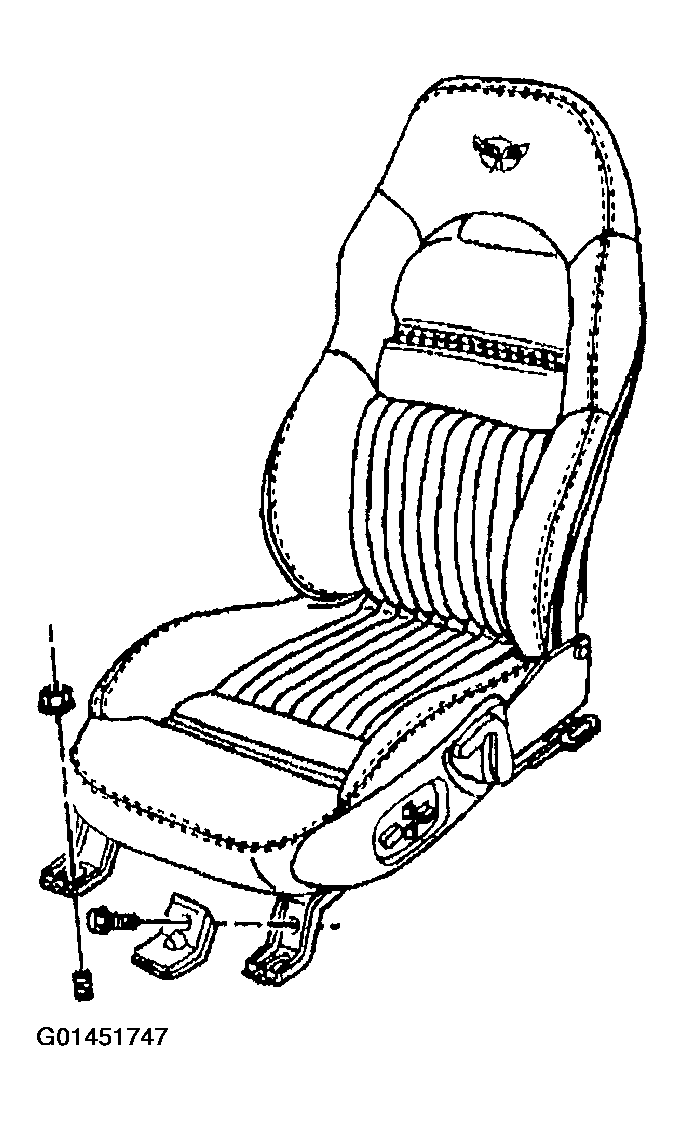

Fig 1: Seat
Courtesy of GENERAL MOTORS CORP.
Remove the memory seat control module from the seat foam support wires.
Reposition the memory seat control module out through the opening.
Disconnect the harness connectors.

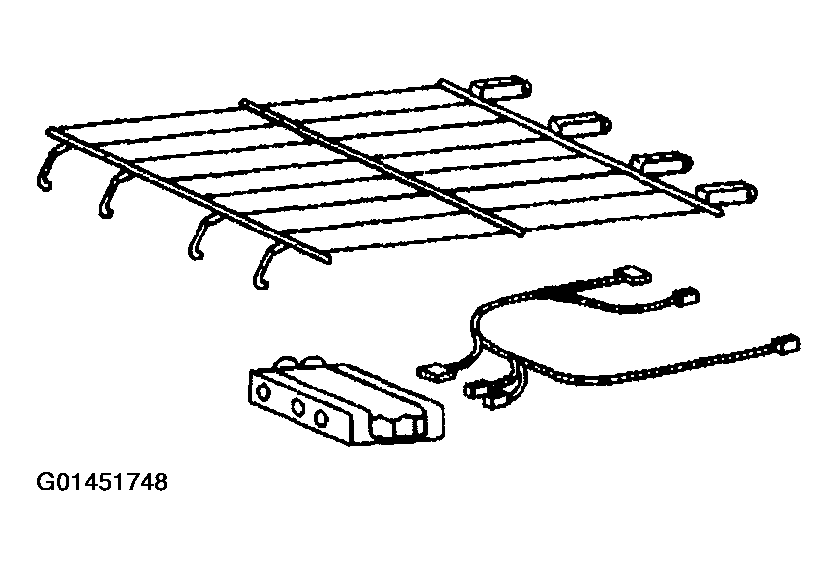

Fig 2: Removing Memory Seat Control Module From Seat Foam Support Wires
Courtesy of GENERAL MOTORS CORP.
