Power Seat Systems Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

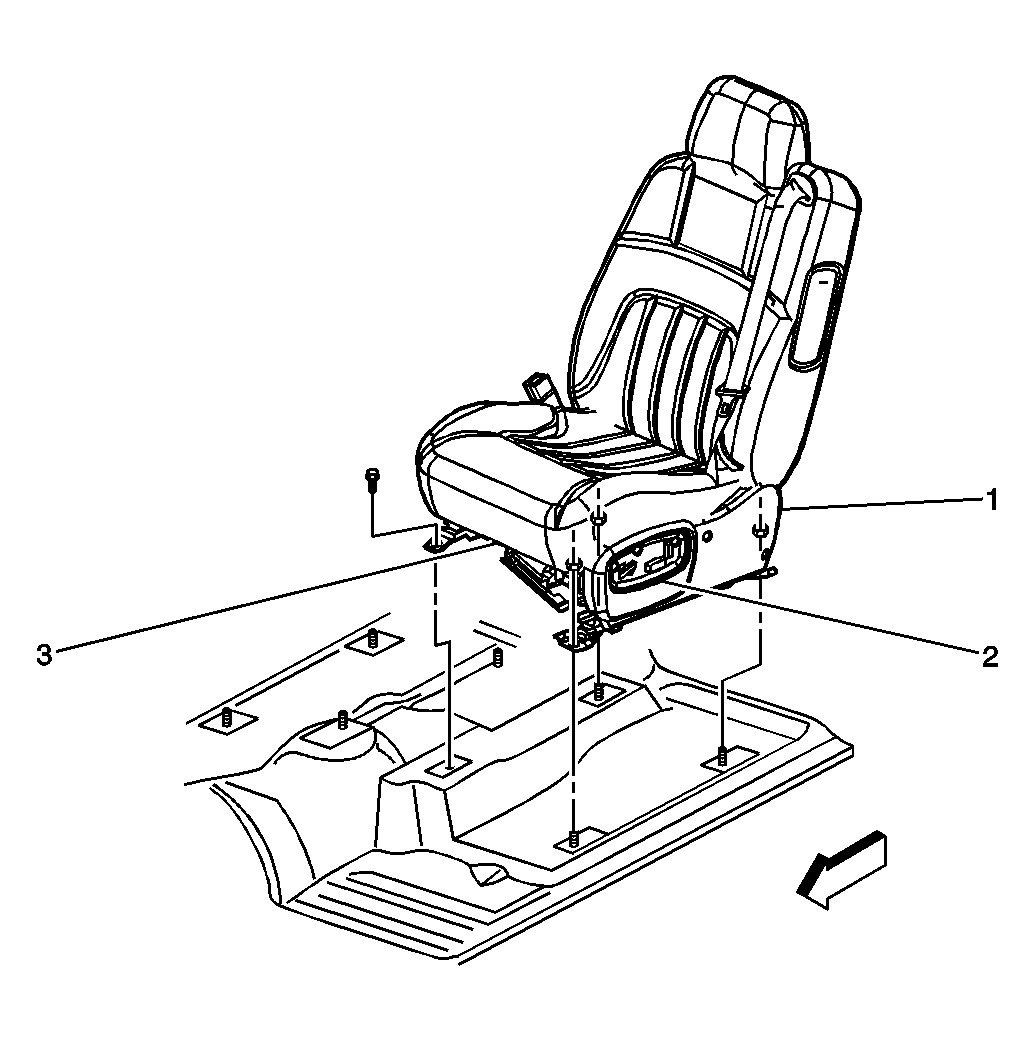

Fig 1: Power Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Seat, LF
2	Power Seat Switches
3	Memory Seat Module

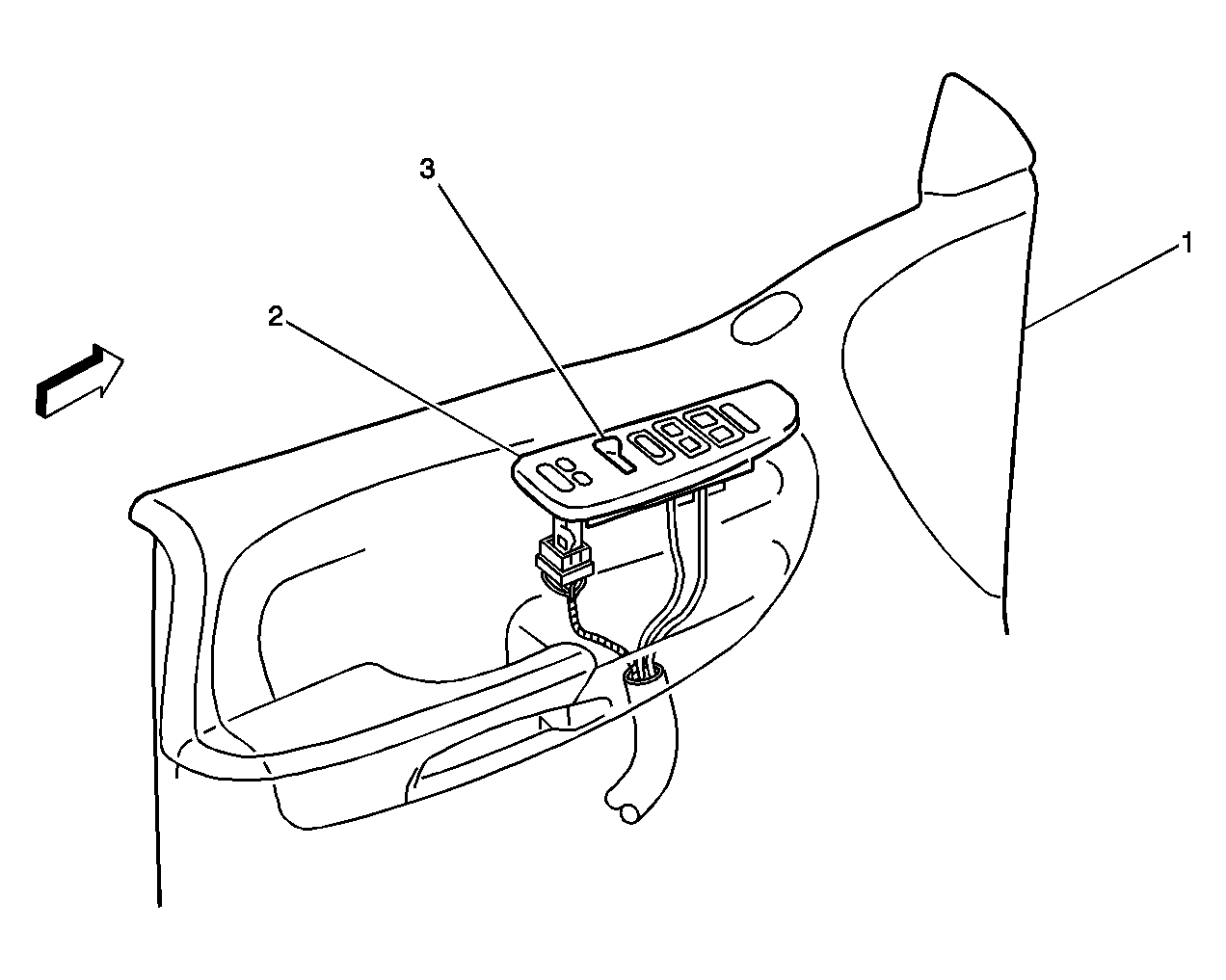

Fig 2: Memory/Heated Seat Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Trim Panel, LF
2	Memory Seat Switch
3	Heated Seat Switch

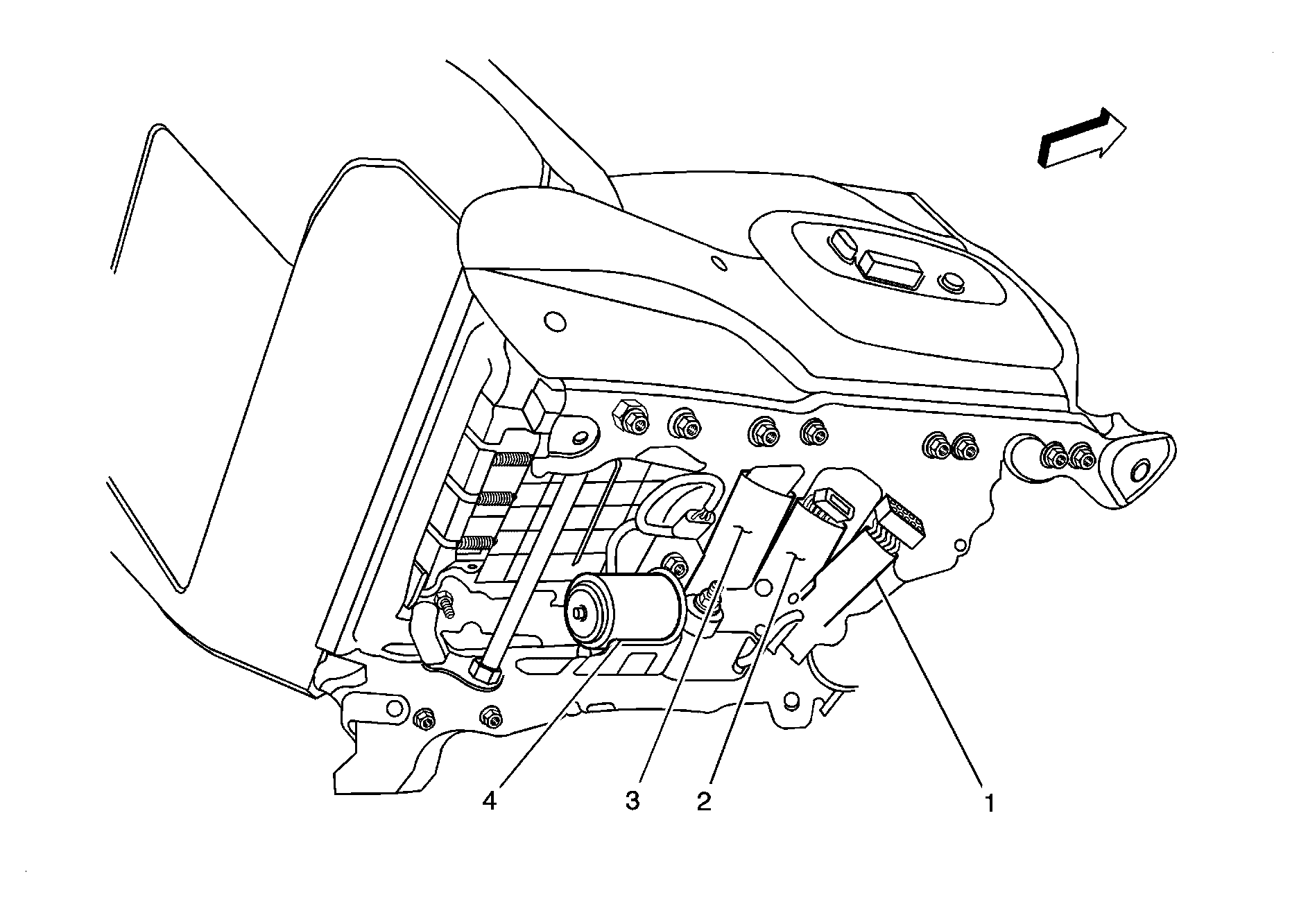

Fig 3: Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward-Rearward Motor
2	Vertical Motor, Front
3	Vertical Motor, Rear
4	Recline Motor

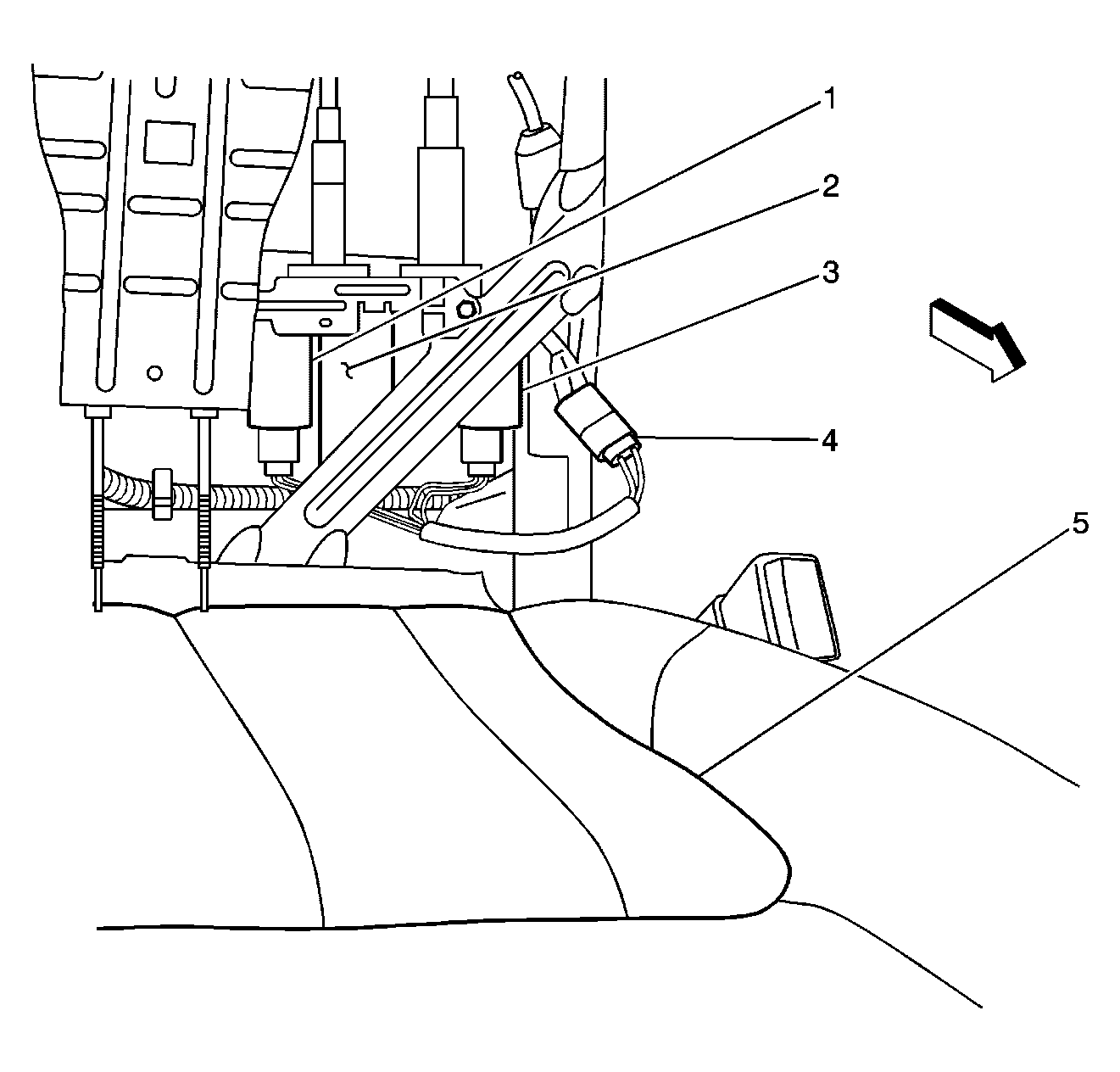

Fig 4: Passenger Seat Lumbar Actuators, Driver Seat Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Actuator-Vertical
2	Lumbar Position Sensor-Vertical
3	Lumbar Actuator-Horizontal
4	Lumbar Harness to Seat Back Harness Connector, C324
5	Seat Cushion

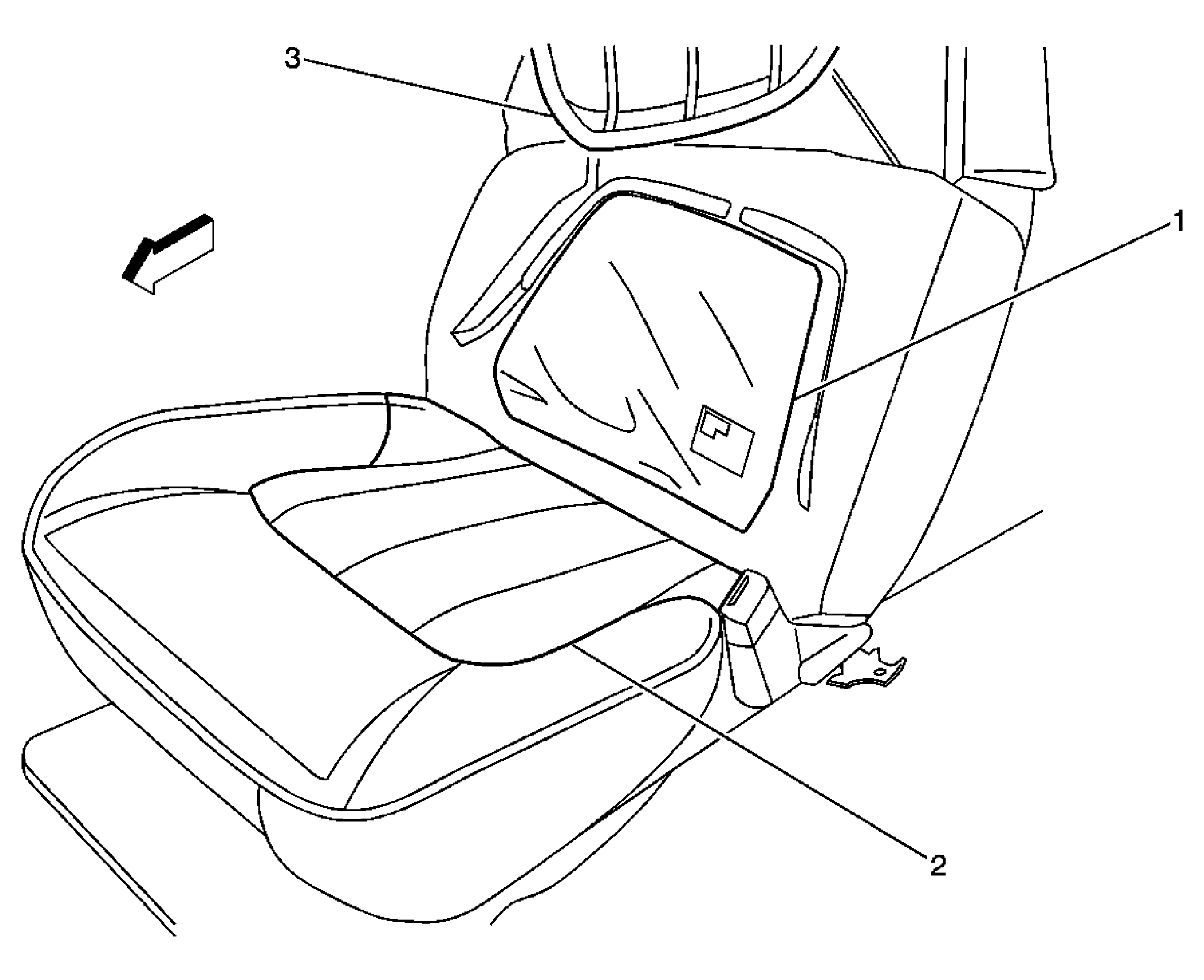

Fig 5: Passenger Heated Seat Elements, Driver Seat Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Element
2	Seat Cushion Heater Element (Under Seat Cover)
3	Seat Cover, Partially Removed
