I/P Switch Assembly C2 Connector End View

I/P Switch Assembly C2 Connector End View

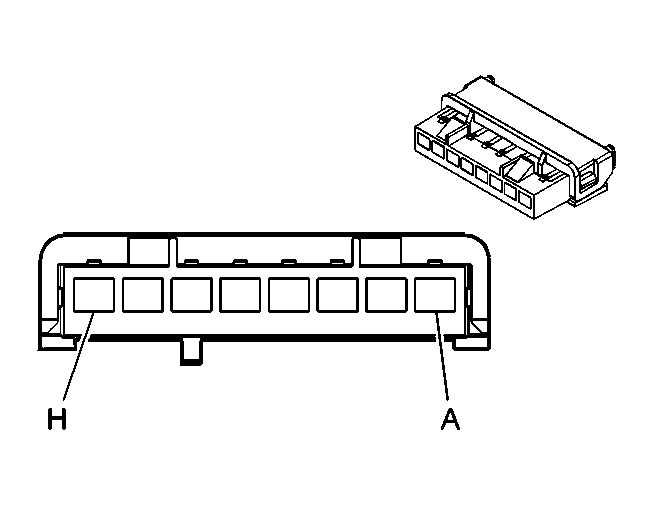

GM73235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047976
  • 8-Way F Metri-Pack 280 Series (BLU)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage - 1
B BLK 150 Ground
C LT GRN 911 Rear Defog Relay Coil Supply Voltage
D LT BLU 1462 Driver Heated Seat Switch Signal
E LT BLU/BLK 1505 Front Passenger Heated Seat Switch Signal
F-H - - Not Used


I/P Switch Assembly C2 Connector End View

GM73235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047976
  • 8-Way F Metri-Pack 280 Series (BLU)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage 1
B BLK 150 Ground
C LT GRN 911 Rear Defog Relay Coil Supply Voltage
D LT BLU 1462 Driver Heated Seat Switch Signal
E LT BLU/BLK 1505 Front Passenger Heated Seat Switch Signal
F-H - - Not Used
