Splice Pack Connector End Views: SP409

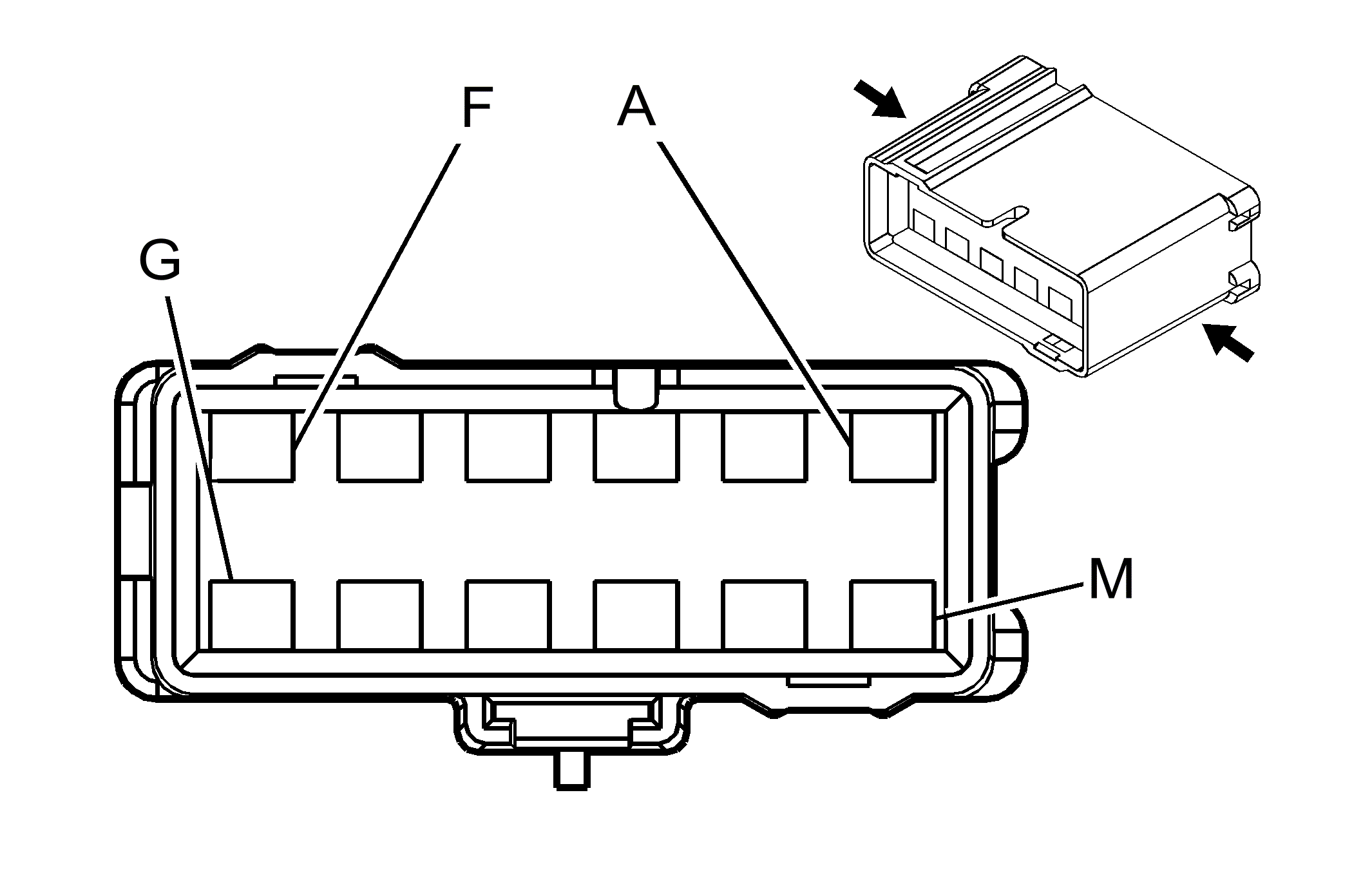

SP409 Connector End View

GM684861Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176473
  • 12-Way F Metri-Pack 280 Series Splice Saver (BLK)
Pin Wire Color Circuit No. Function
A BRN 9 Park Lamp Supply Voltage
BRN 9 Park Lamp Supply Voltage (Buick)
B BRN 9 Park Lamp Supply Voltage
BRN 9 Park Lamp Supply Voltage
C BRN 9 Park Lamp Supply Voltage
BRN 9 Park Lamp Supply Voltage
D BLK 850 Ground
BLK 850 Ground (Buick)
E BLK 850 Ground
BLK 850 Ground
F BLK 850 Ground
G YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
H YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
J YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
K BRN 9 Park Lamp Supply Voltage (Buick)
L BRN 9 Park Lamp Supply Voltage (Buick)
BRN 9 Park Lamp Supply Voltage (Buick)
M BRN 9 Park Lamp Supply Voltage (Buick)
