Automatic Transmission Controls Schematics

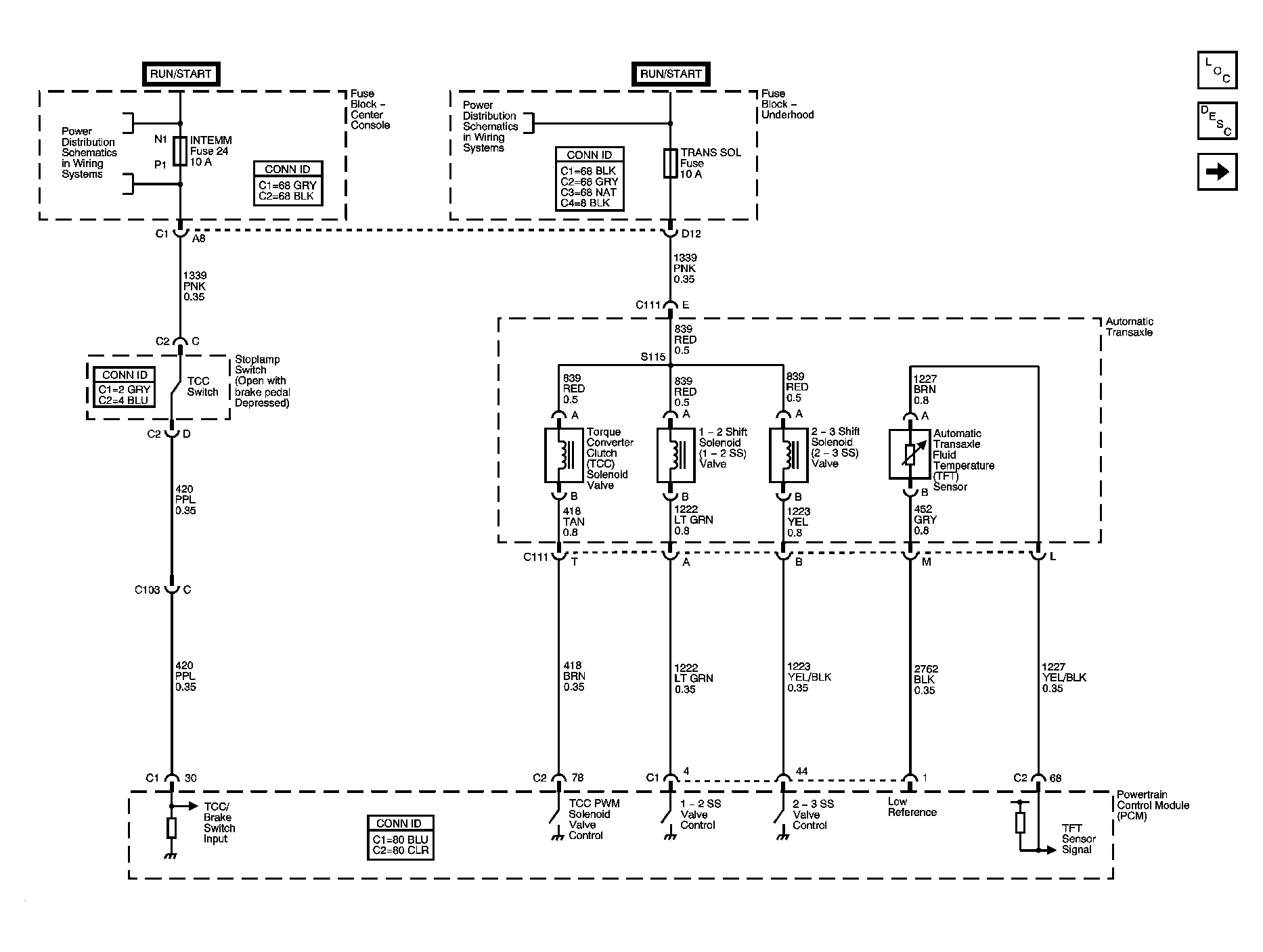

Fig 1: TCC Solenoid Control, SS Valve Control and TFT Sensor Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: Switches, ISS and Pressure Control Schematics

Courtesy of GENERAL MOTORS CORP.

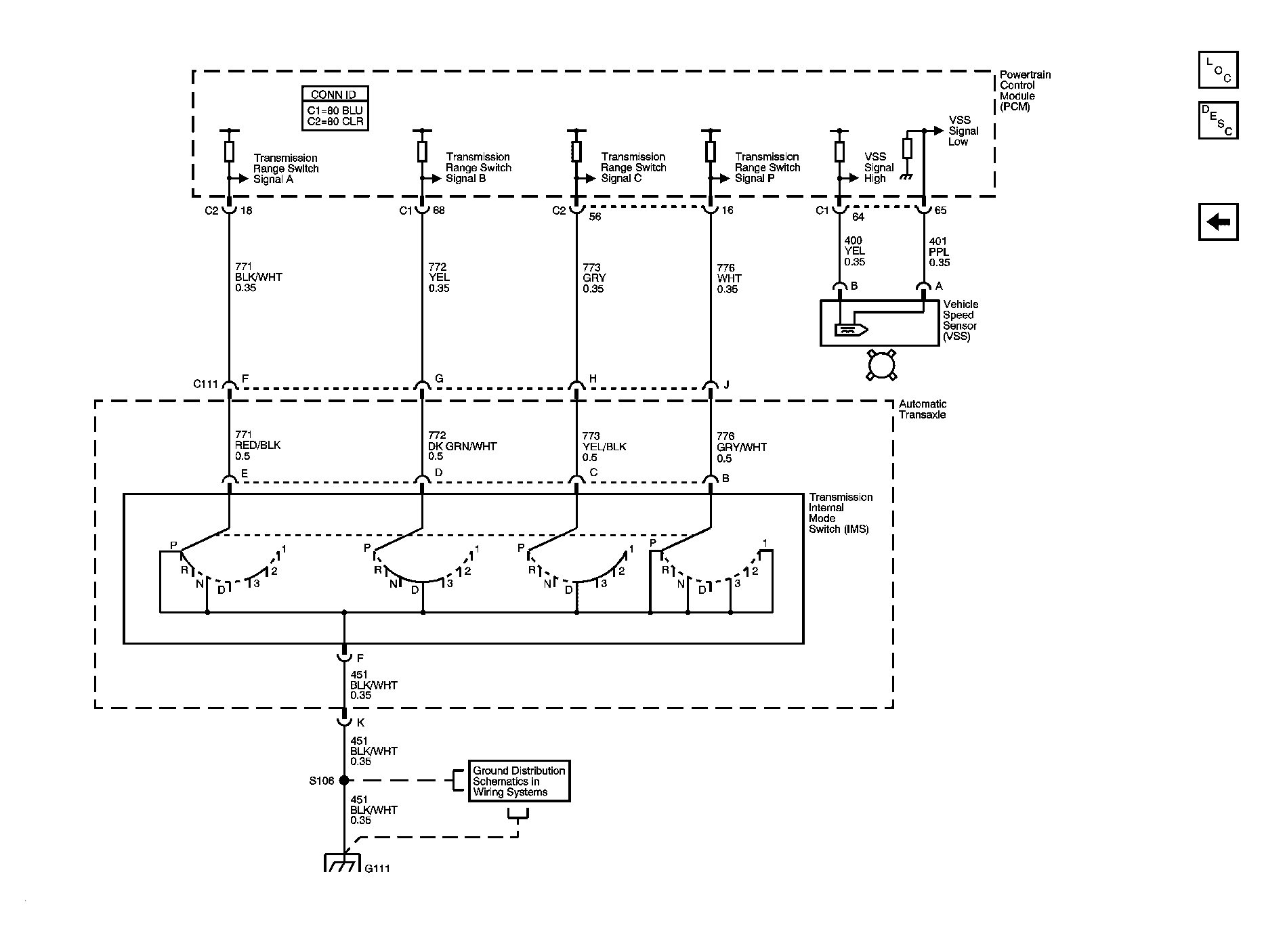

Fig 3: Transaxle Range Switch and VSS Schematics

Courtesy of GENERAL MOTORS CORP.

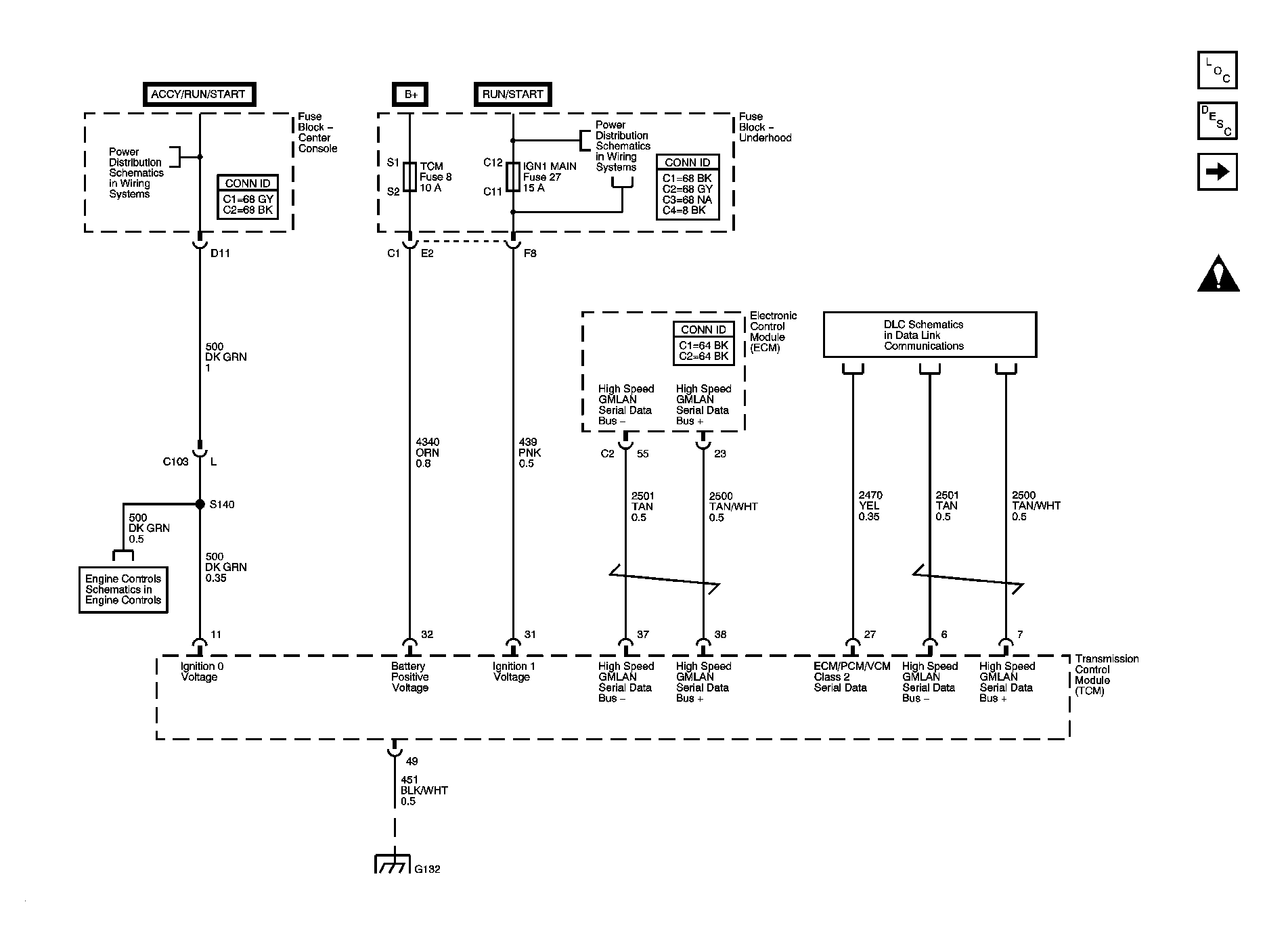

Fig 4: Transmission Control Module Power, Grounds and Serial Data Schematics - LY7

Courtesy of GENERAL MOTORS CORP.

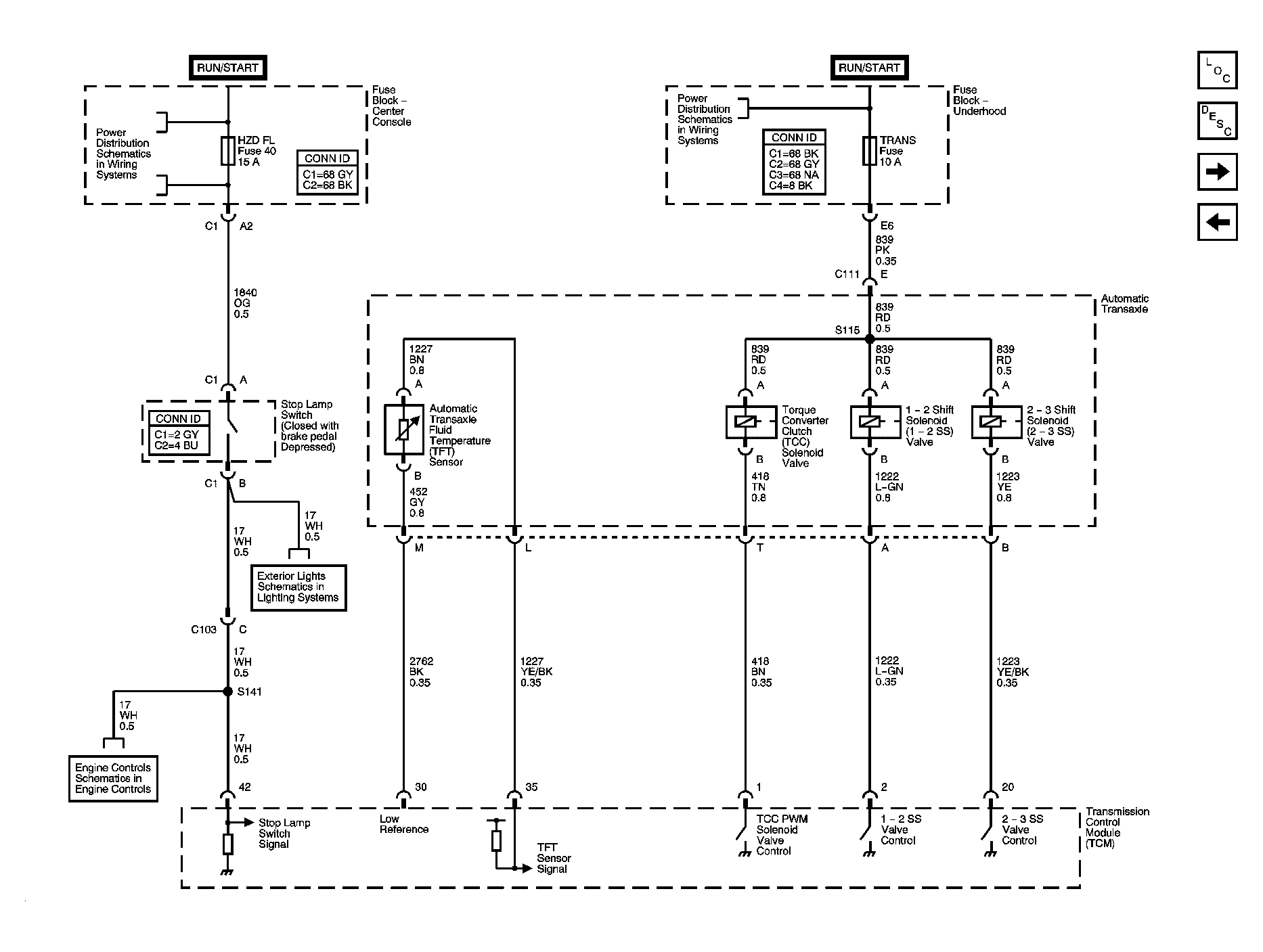

Fig 5: Stop Lamp Switch, Trans Fluid Temperature Sensor, TCC Valve and Shift Solenoids Schematics - LY7

Courtesy of GENERAL MOTORS CORP.

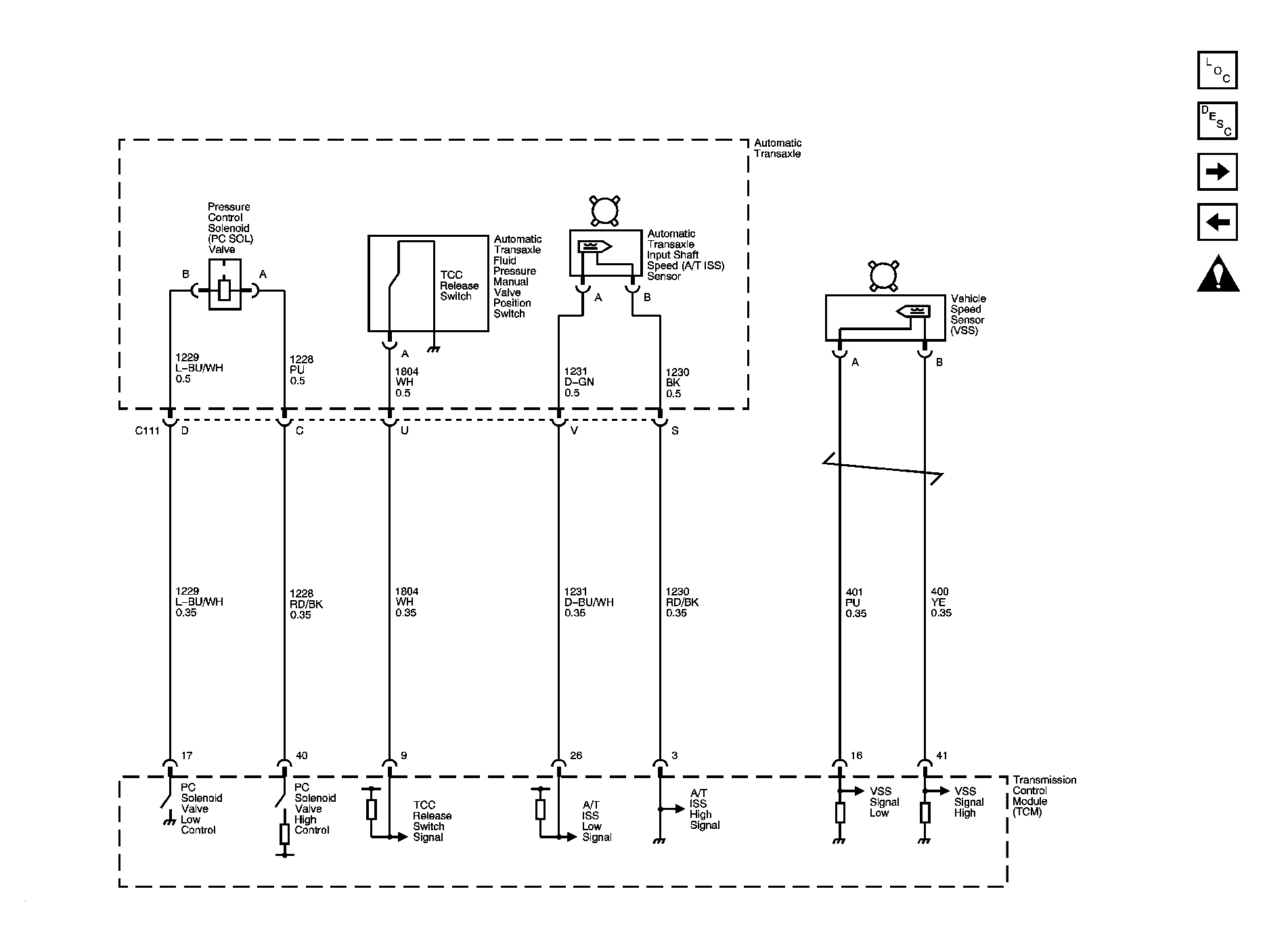

Fig 6: Pressure Control Soleniod, TCC Release Switch, Input Shaft Speed Sensor and Vehicle Speed Sensor Schematics - LY7

Courtesy of GENERAL MOTORS CORP.

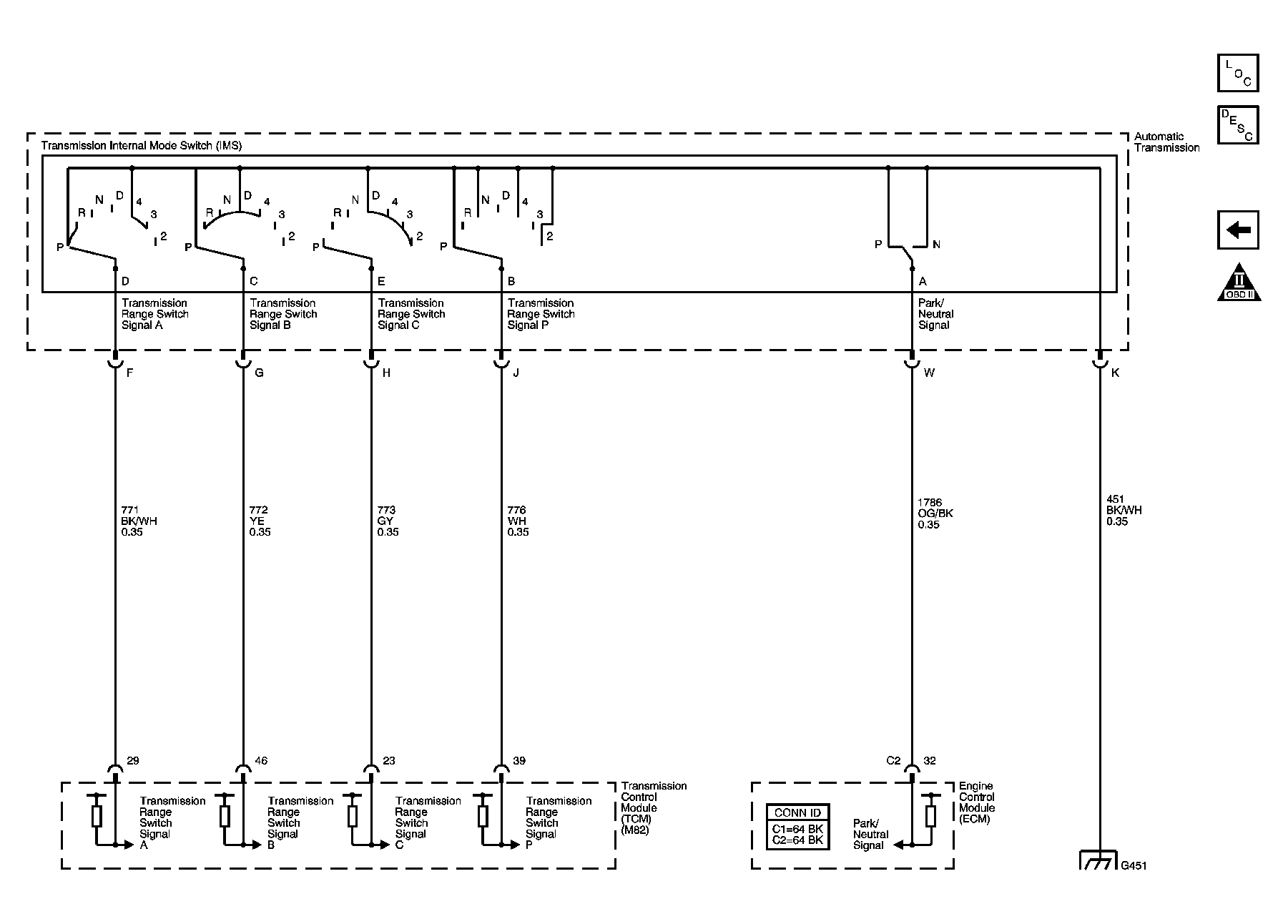

Fig 7: Transmission Internal Range Switch Schematics - LY7

Courtesy of GENERAL MOTORS CORP.
