Wiper/Washer System Component Views

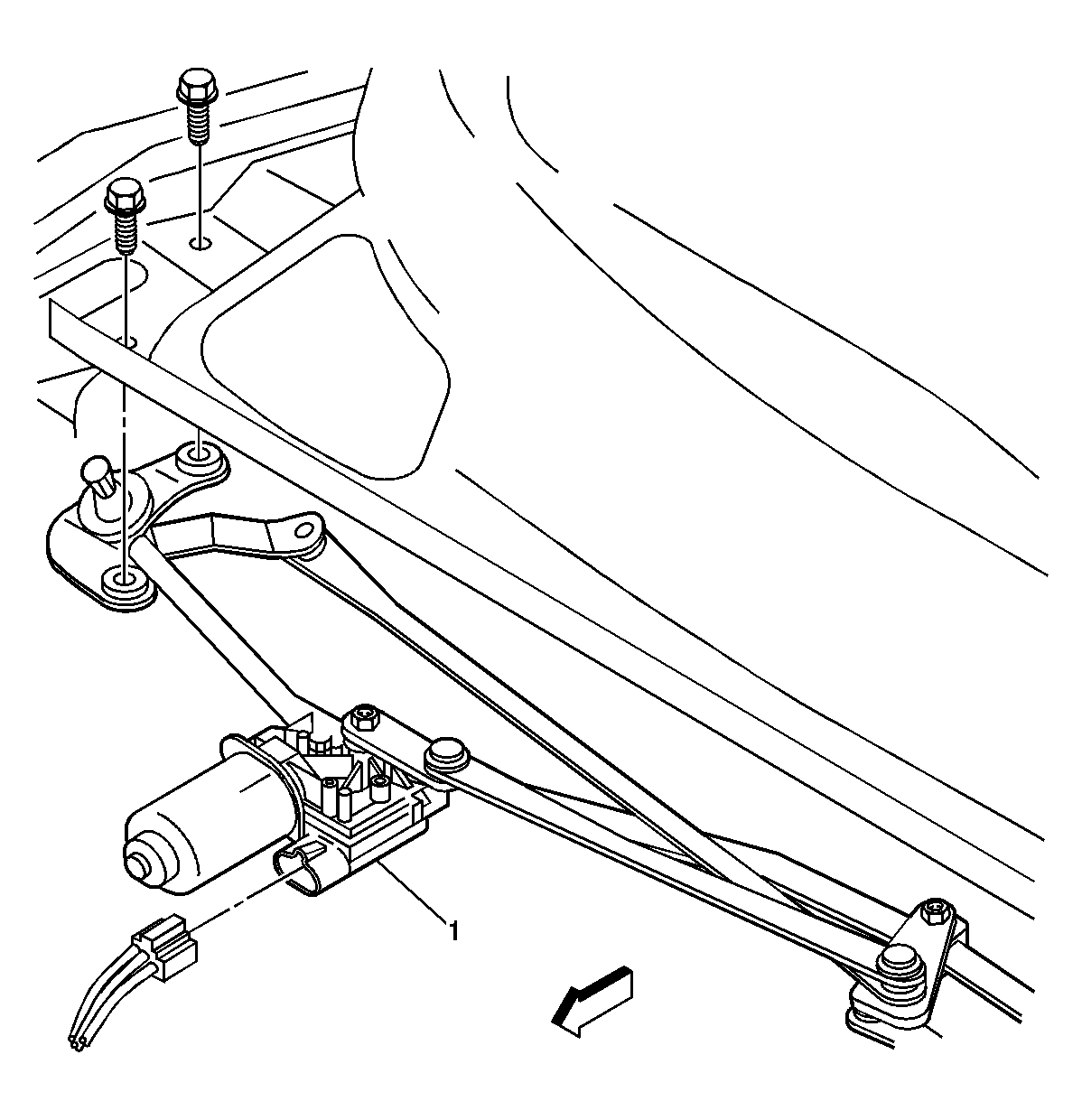

Fig 1: Windshield Wiper Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

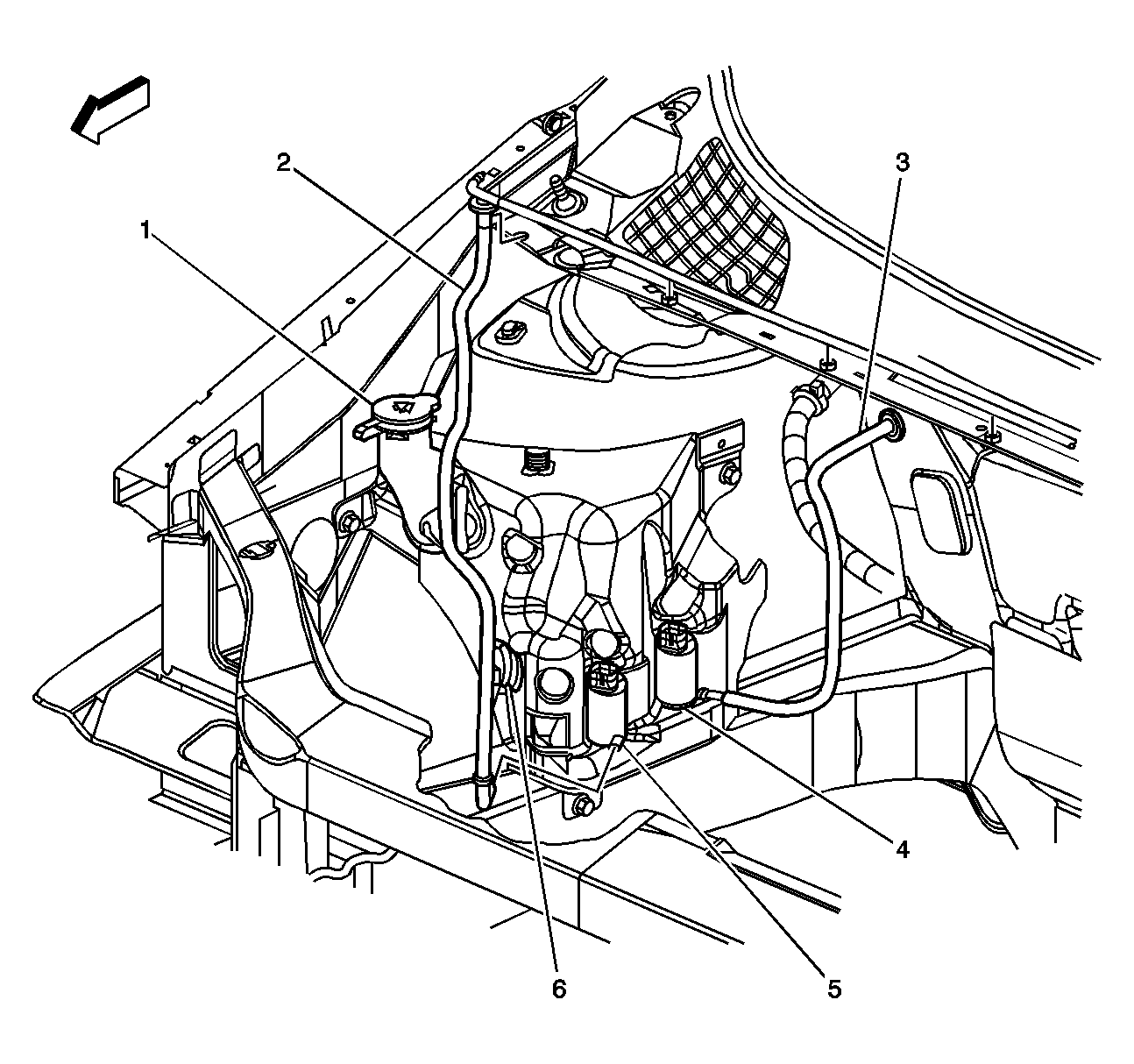

Fig 2: Windshield Washer Fluid Pump Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Container
2	Windshield Washer Fluid Hose
3	Rear Window Washer Fluid Hose - Buick
4	Rear Window Washer Pump - Buick
5	Windshield Washer Fluid Pump
6	Washer Fluid Level Sensor

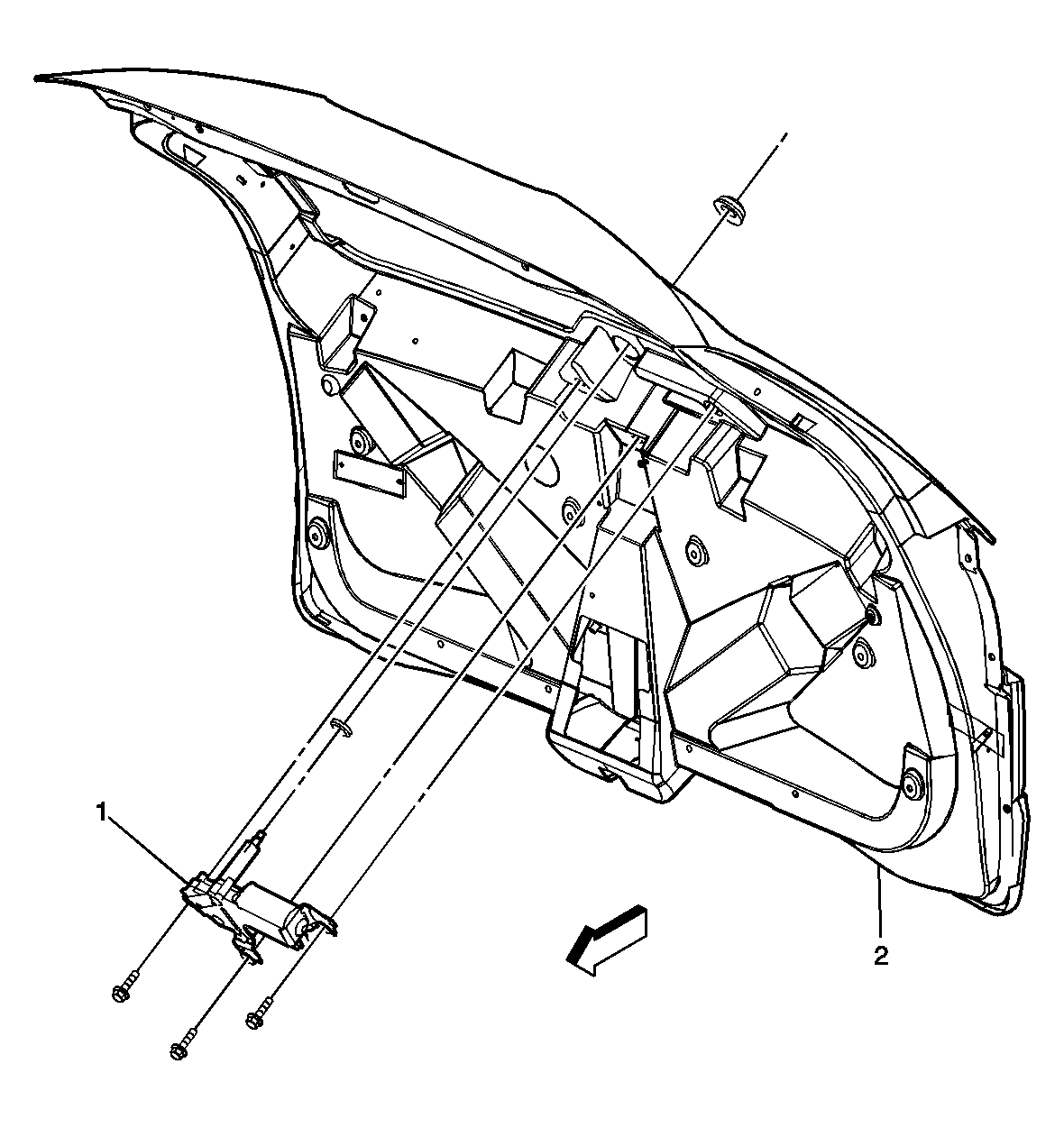

Fig 3: Rear Window Wiper Motor Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper Motor
2	Liftgate
