Wiper/Washer System Connector End Views

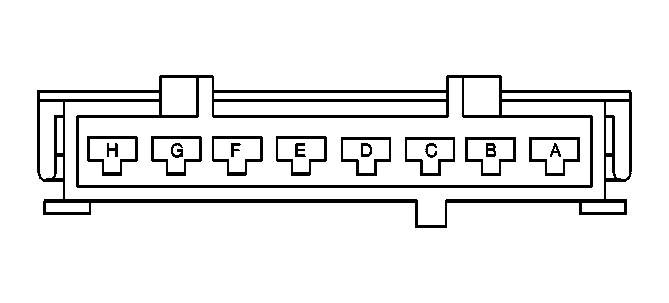

I/P Switch Assembly C1 (Buick) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041301 8-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	GRY	8	Instrument Panel Lamp Supply Voltage
B	BLK	1450	Ground
C-E	-	-	Not Used
F	GRY	391	Rear Window Wiper Switch Signal
G	YEL	343	Accessory Voltage
H	DK GRN	392	Rear Window Washer Pump Control

Rear Window Washer Fluid Pump (Buick) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12020599 2-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK GRN	392	Rear Window Washer Pump Control
B	BLK	1650	Ground

Rear Window Wiper Motor (Buick) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041429 5-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1150	Ground
B	DK GRN	392	Rear Window Washer Pump Control
C	-	-	Not Used
D	GRY	391	Rear Window Wiper Switch Signal
E	YEL	343	Accessory Voltage

Windshield Washer Fluid Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162195 2-Way F 150.2 (BLK)
Pin	Wire Color	Circuit No.	Function
A	TAN	185	Low Washer Fluid Indicator Signal
B	BLK	1550	Ground

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	1650	Ground

Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129126 5-Way F Metri-Pack 150 280 Mixed Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1650	Ground
B	YEL	243	Accessory Voltage
C	PPL	92	Windshield Wiper Motor High Speed
D	DK GRN	113	Windshield Wiper Switch Signal 2
E	GRY	112	Windshield Wiper Switch Signal 1

Turn Signal/Multifunction Switch C3 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15339058 7-Way F Metri-Pack 150 (GRY)
Pin	Wire Color	Circuit No.	Function
G-H	-	-	Not Used
J	RED	228	Windshield Washer Pump Control
K	YEL	243	Accessory Voltage
L	GRY	112	Windshield Wiper Switch Signal 1
M	DK GRN	113	Windshield Wiper Switch Signal 2
N	PPL	92	Windshield Wiper Motor High Speed
