Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Battery Hold Down Nut, Washer & Retainer

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the battery.
Install the battery hold down retainer (1), nut (3), and washer.
Tighten: Tighten the nut to 15 N.m (11 lb ft).

Fig 2: View Of Battery Cover

Courtesy of GENERAL MOTORS CORP.

Install the battery cover.

Fig 3: Radiator Support Diagonal Brace

Courtesy of GENERAL MOTORS CORP.

Install the battery tray brace bolts/nut.
Tighten: Tighten the bolts/nut to 10 N.m (89 lb in).

Fig 4: View Of Battery Air Duct

Courtesy of GENERAL MOTORS CORP.

Install the battery air duct to the battery cover.

Fig 5: View Of Coolant Heater Cord Retainers

Courtesy of GENERAL MOTORS CORP.

Install the coolant heater cord retainers (1) to the battery cover, if equipped.

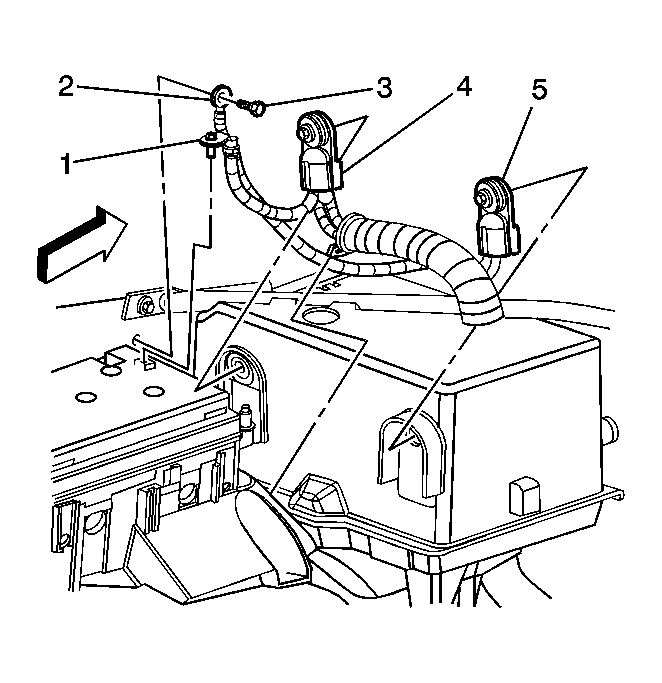

Fig 6: Identifying Battery Cable Components

Courtesy of GENERAL MOTORS CORP.

Position the positive battery cable (4) to the battery.
Tighten the positive battery cable bolt.
Tighten: Tighten the bolt to 15 N.m (11 lb ft).
Connect the negative battery cable (5). Refer to Battery Negative Cable Disconnect/Connect Procedure .
