Lighting Systems Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

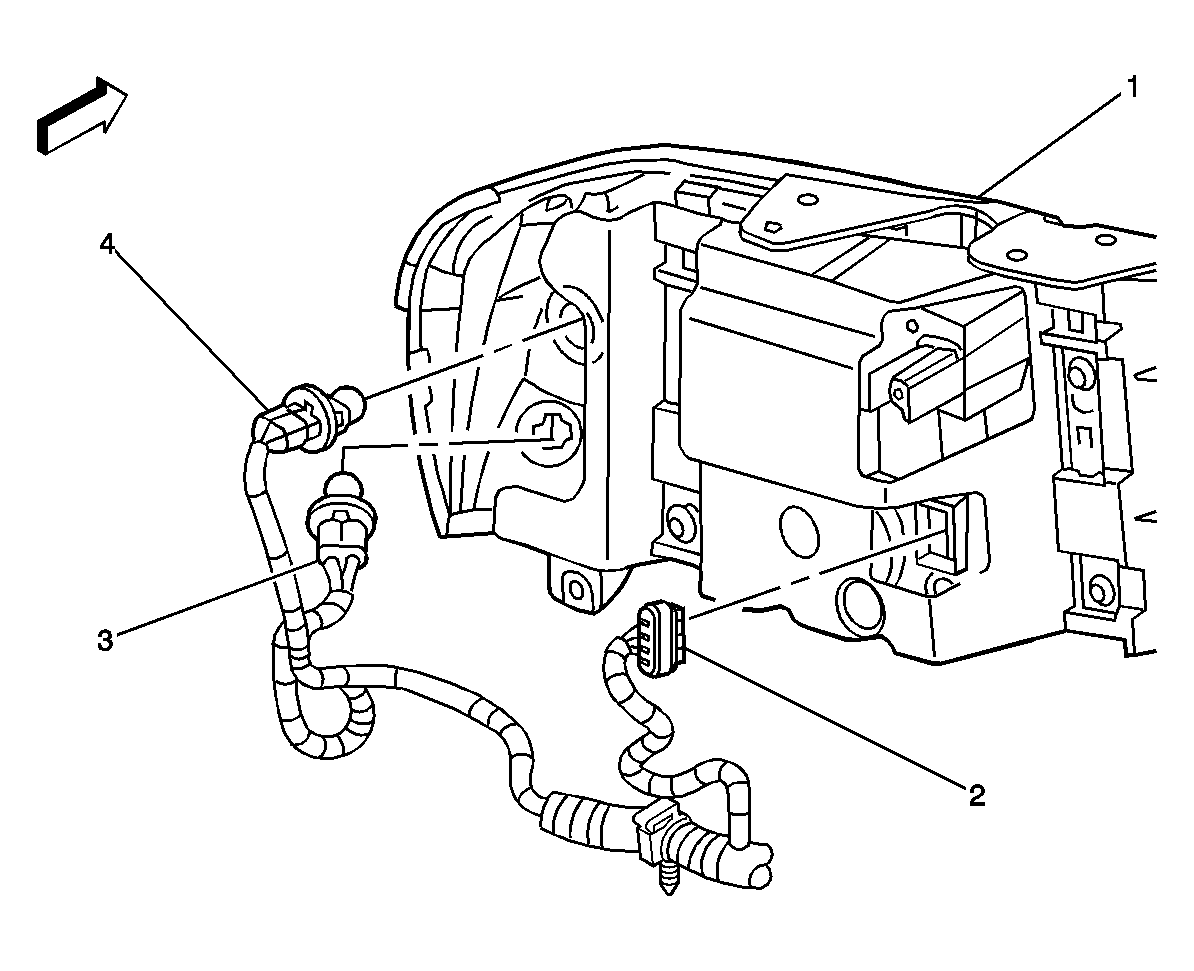

Fig 1: Front Lamps, GMC Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp-Left
2	Headlamp Connector
3	Marker Lamp
4	Park/Turn Signal Lamp

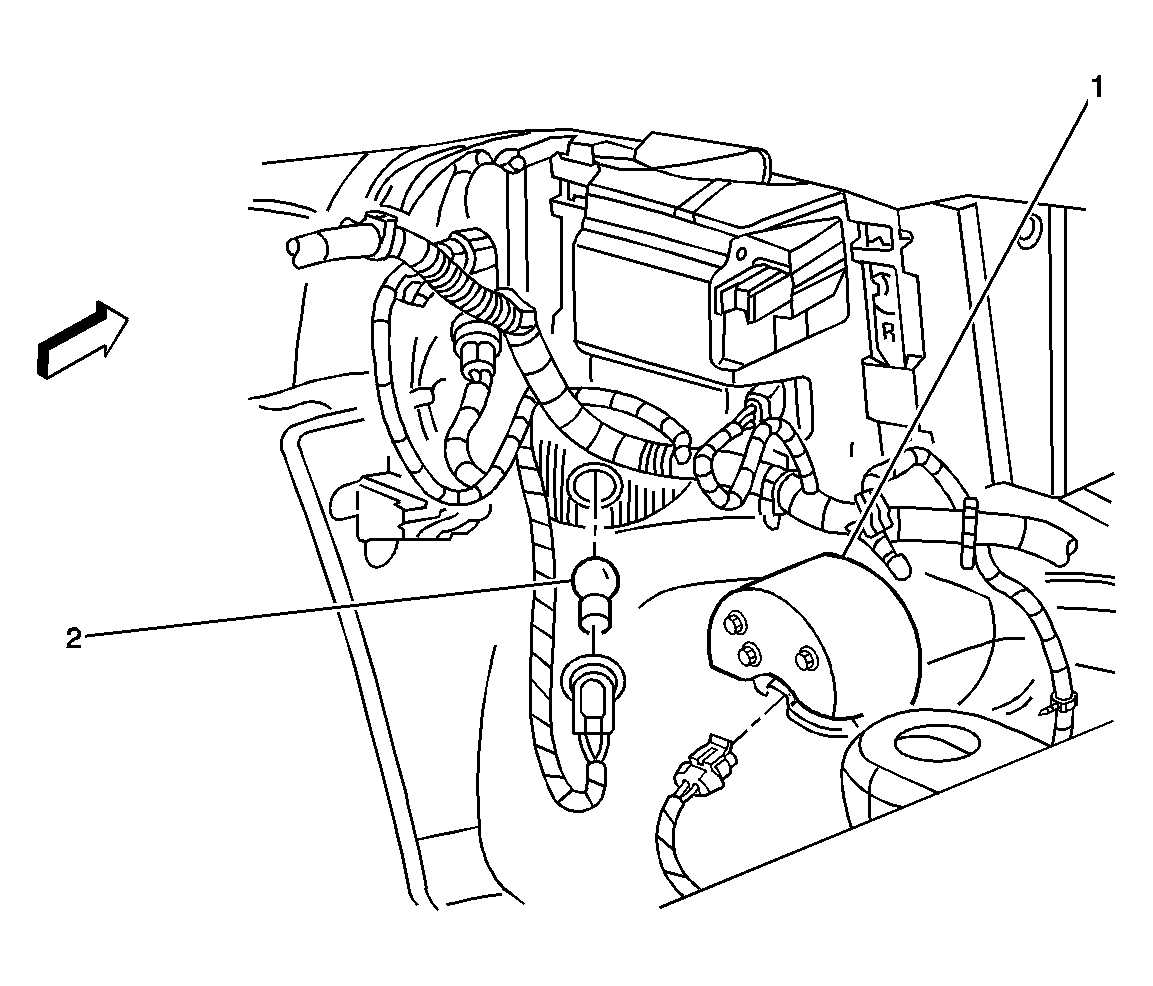

Fig 2: Fog Lamp and Cornering Lamp, GMC Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp
2	Cornering Lamp

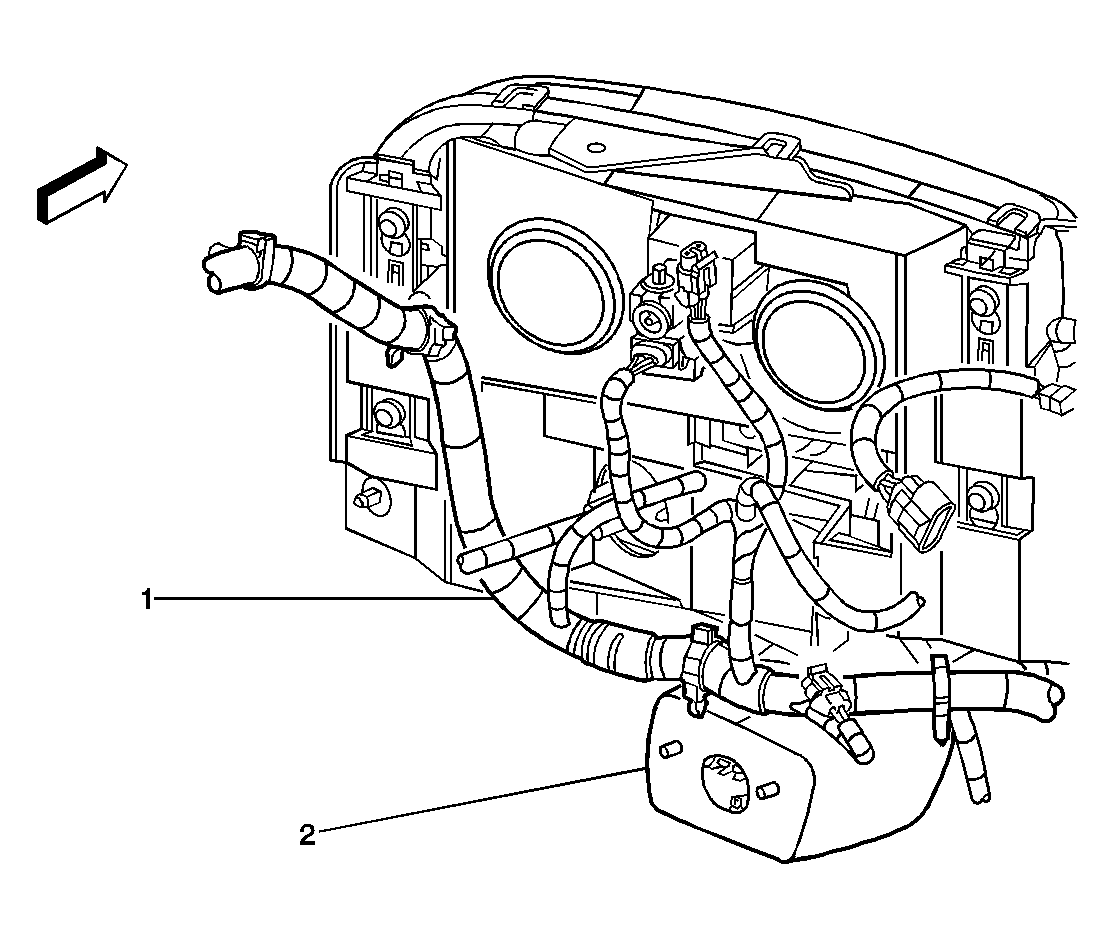

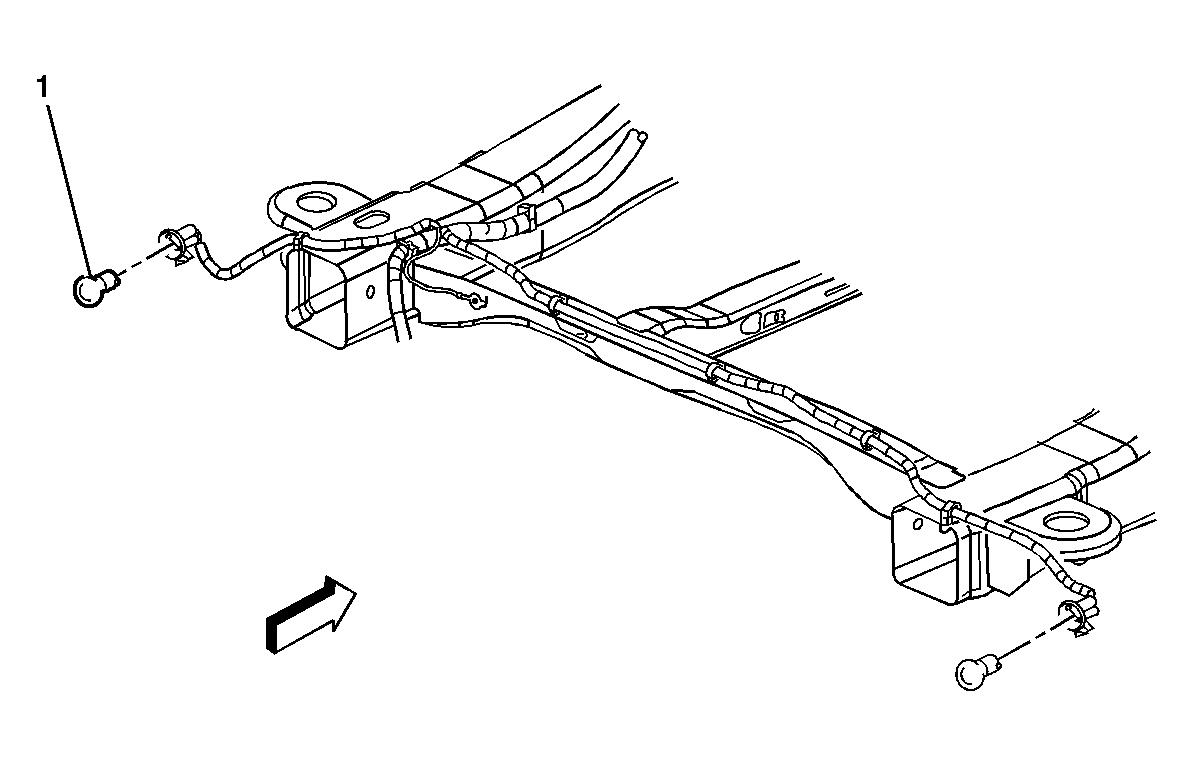

Fig 3: Fog Lamp Component Views, Chevrolet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Fog Lamp

Fig 4: Front Lamps Component Views, Chevrolet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp-Left
2	Headlamp Connector
3	Fog Lamp Connector
4	Park/Turn Signal Lamp
5	Marker Lamp

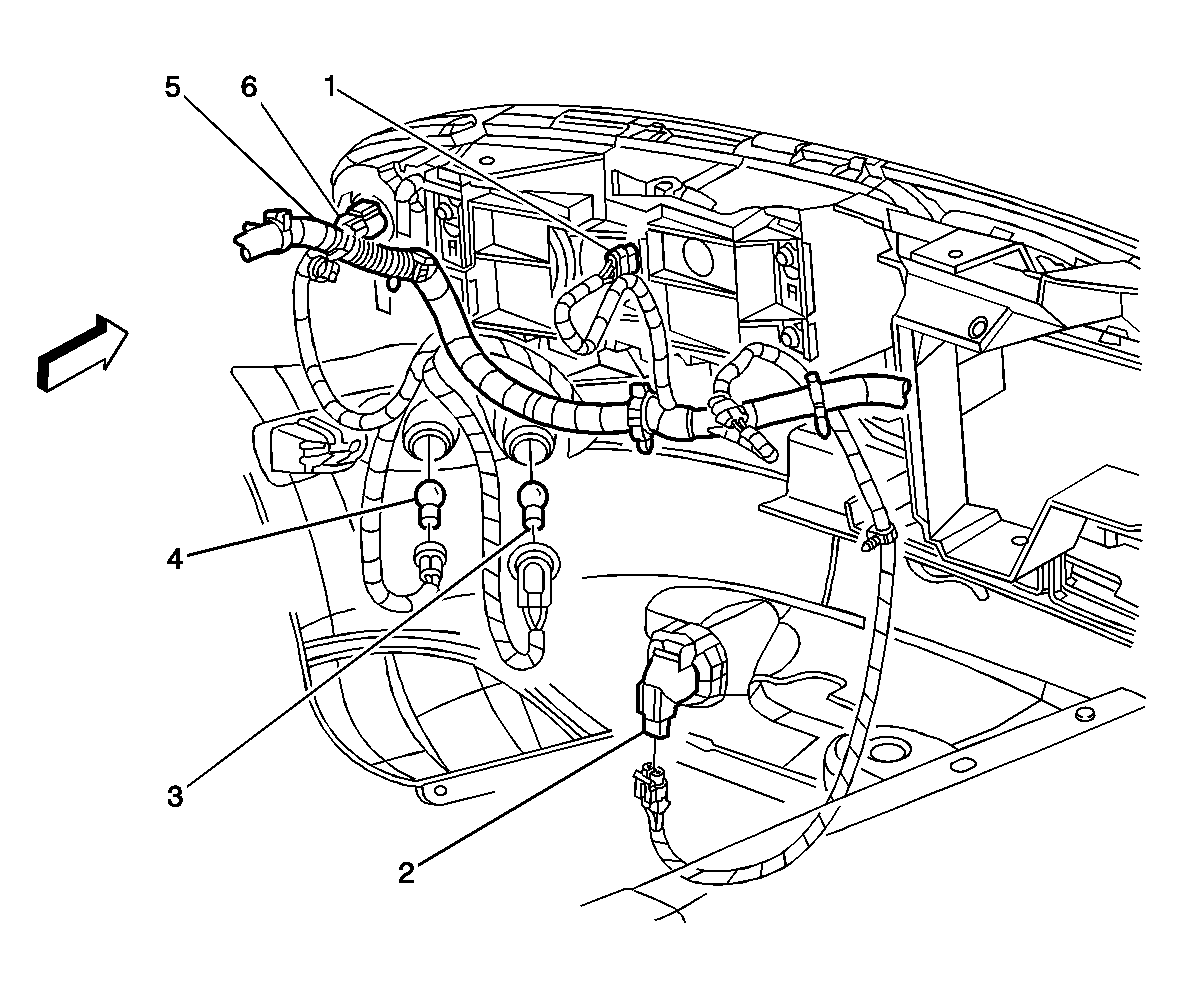

Fig 5: Front Lamps Component Views, Oldsmobile

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Connector
2	Fog Lamp
3	Cornering Lamp
4	Marker Lamp
5	Forward Lamp Harness
6	Park/Turn Lamp

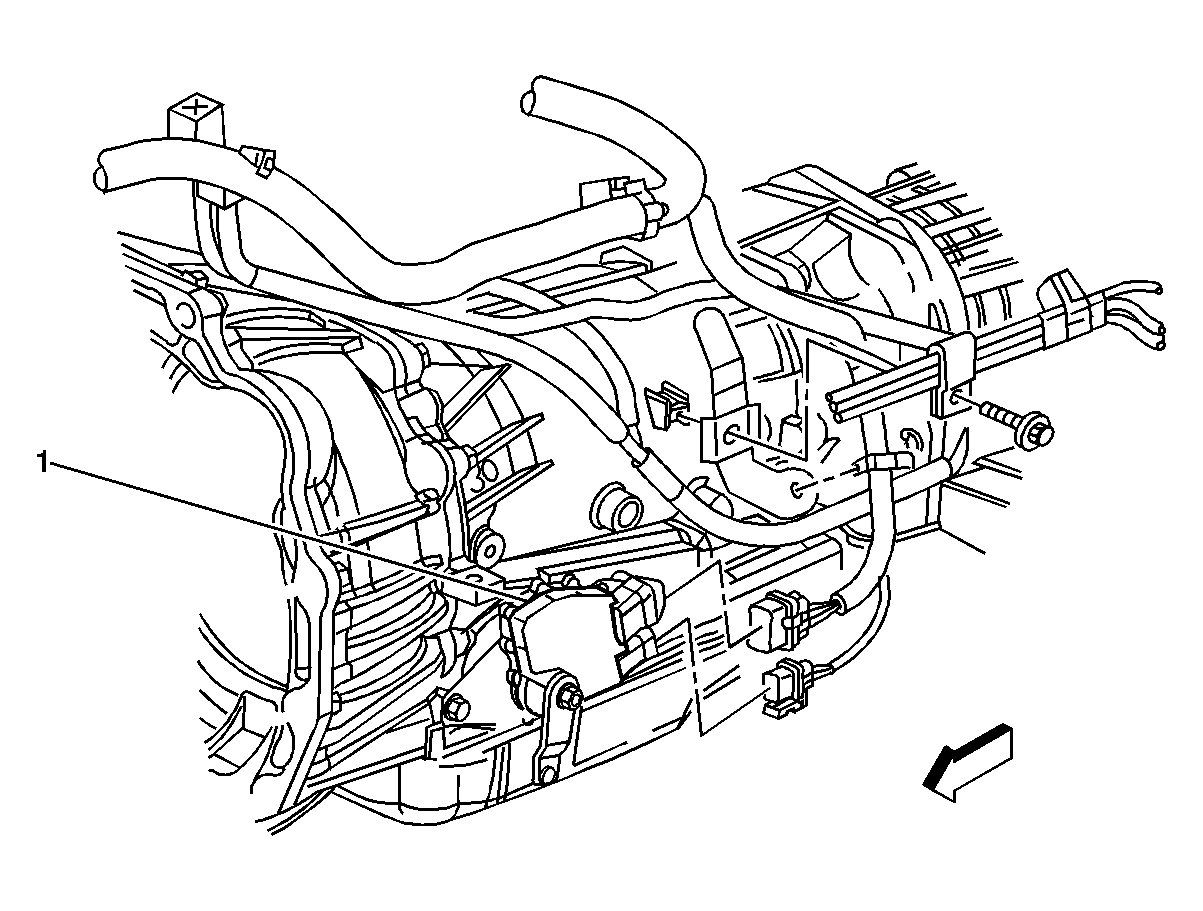

Fig 6: Automatic Transmission Component Views, Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Switch

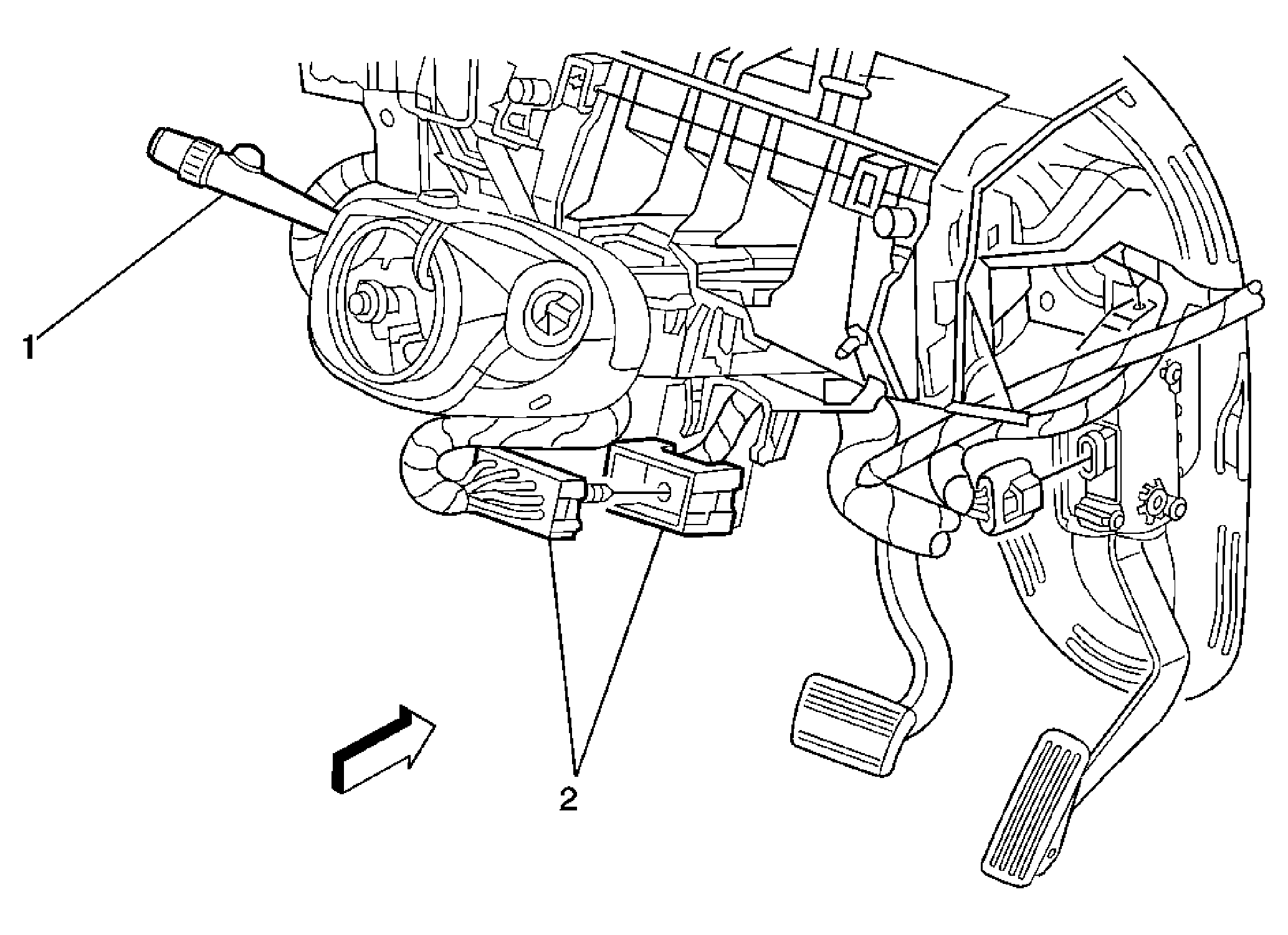

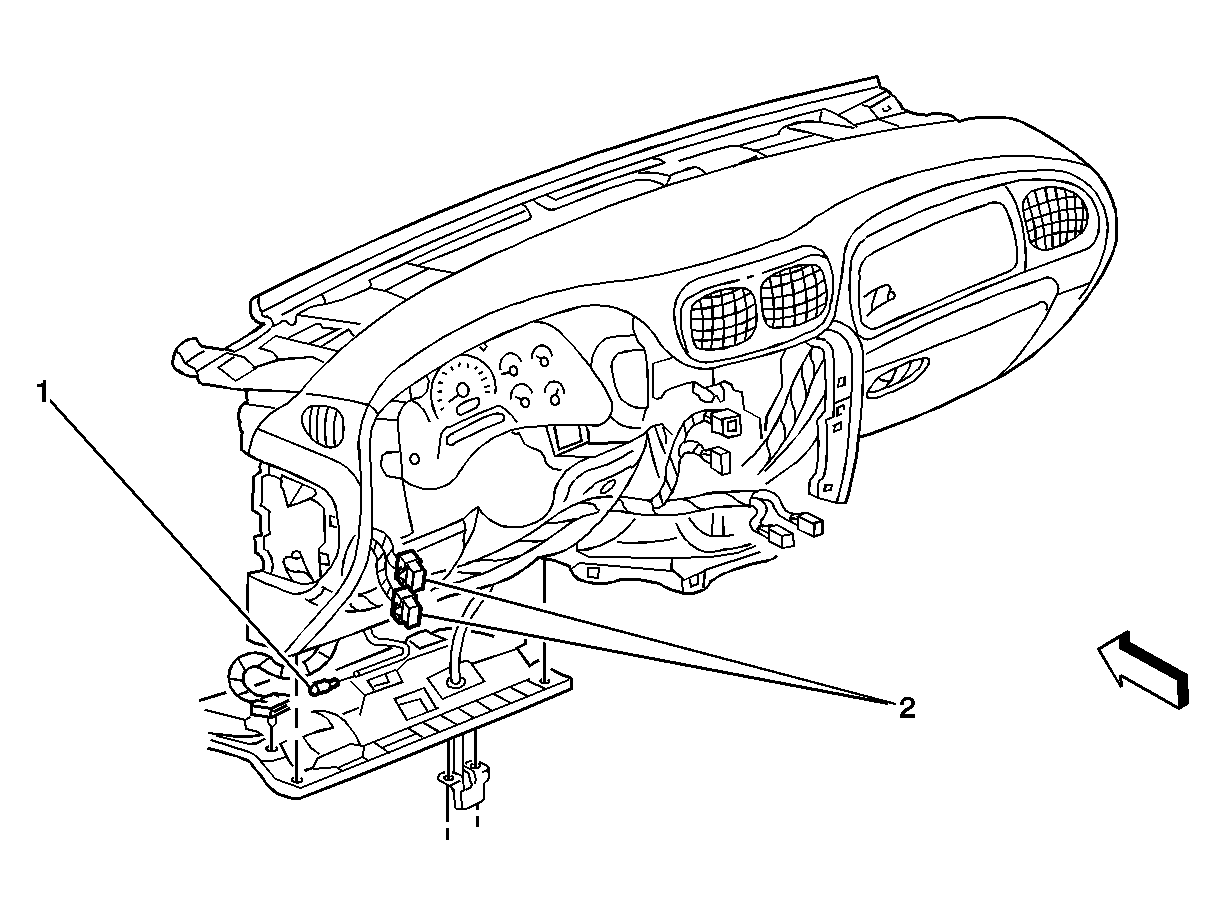

Fig 7: Courtesy Lamp and Headlamp Switch Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp
2	Headlamp Switch Connectors

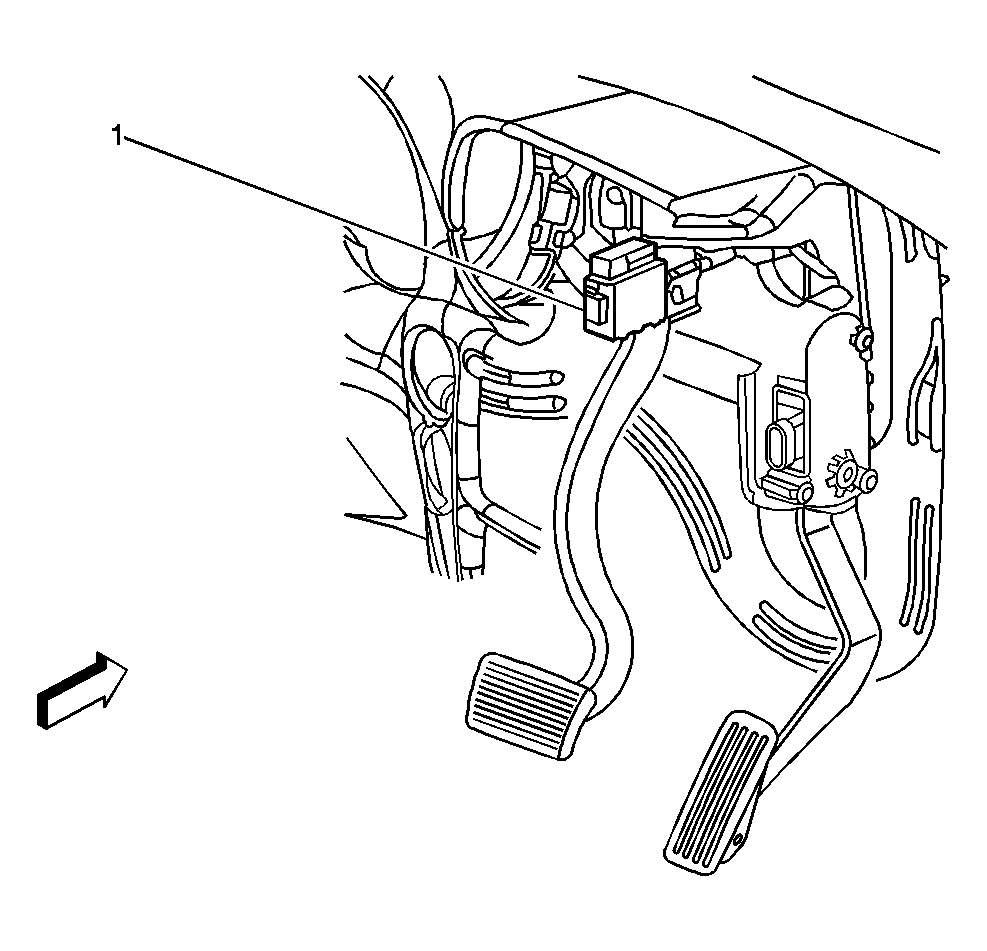

Fig 8: Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch

Fig 9: Multi-function Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multi-function Switch
2	C201

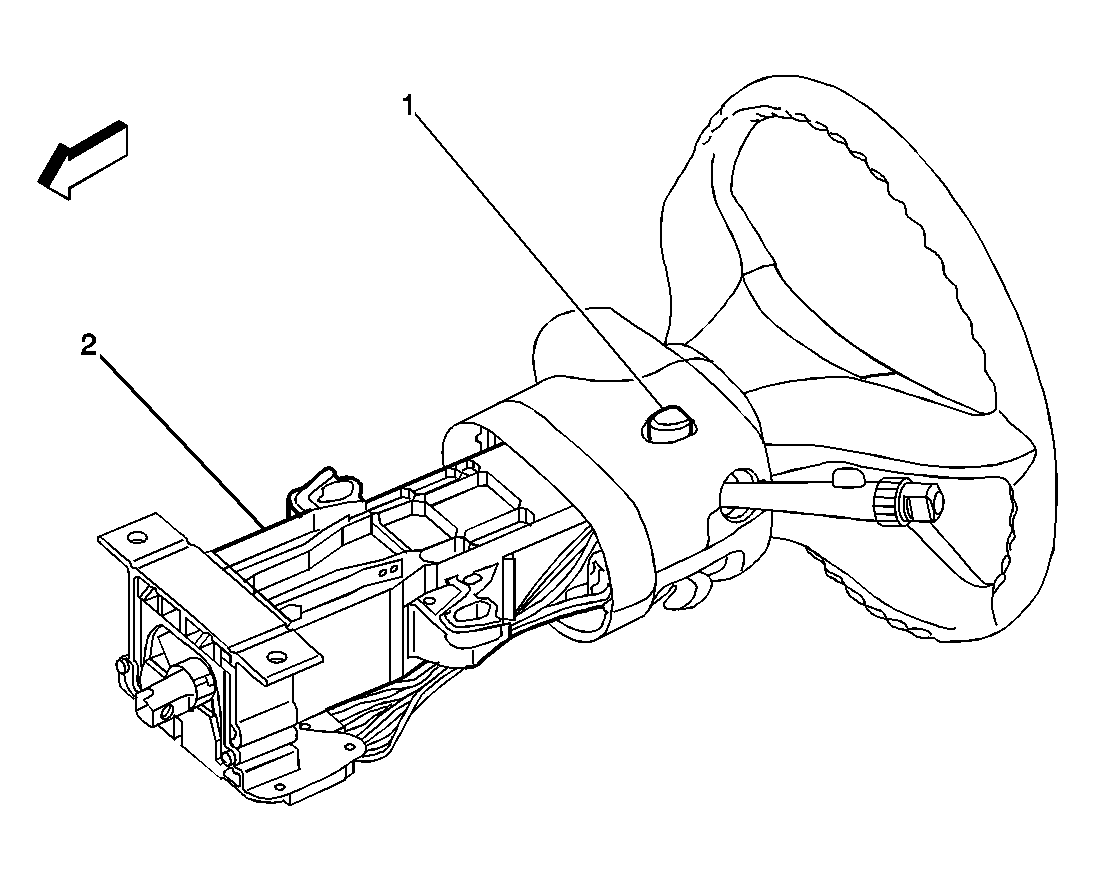

Fig 10: Hazard Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Steering Column

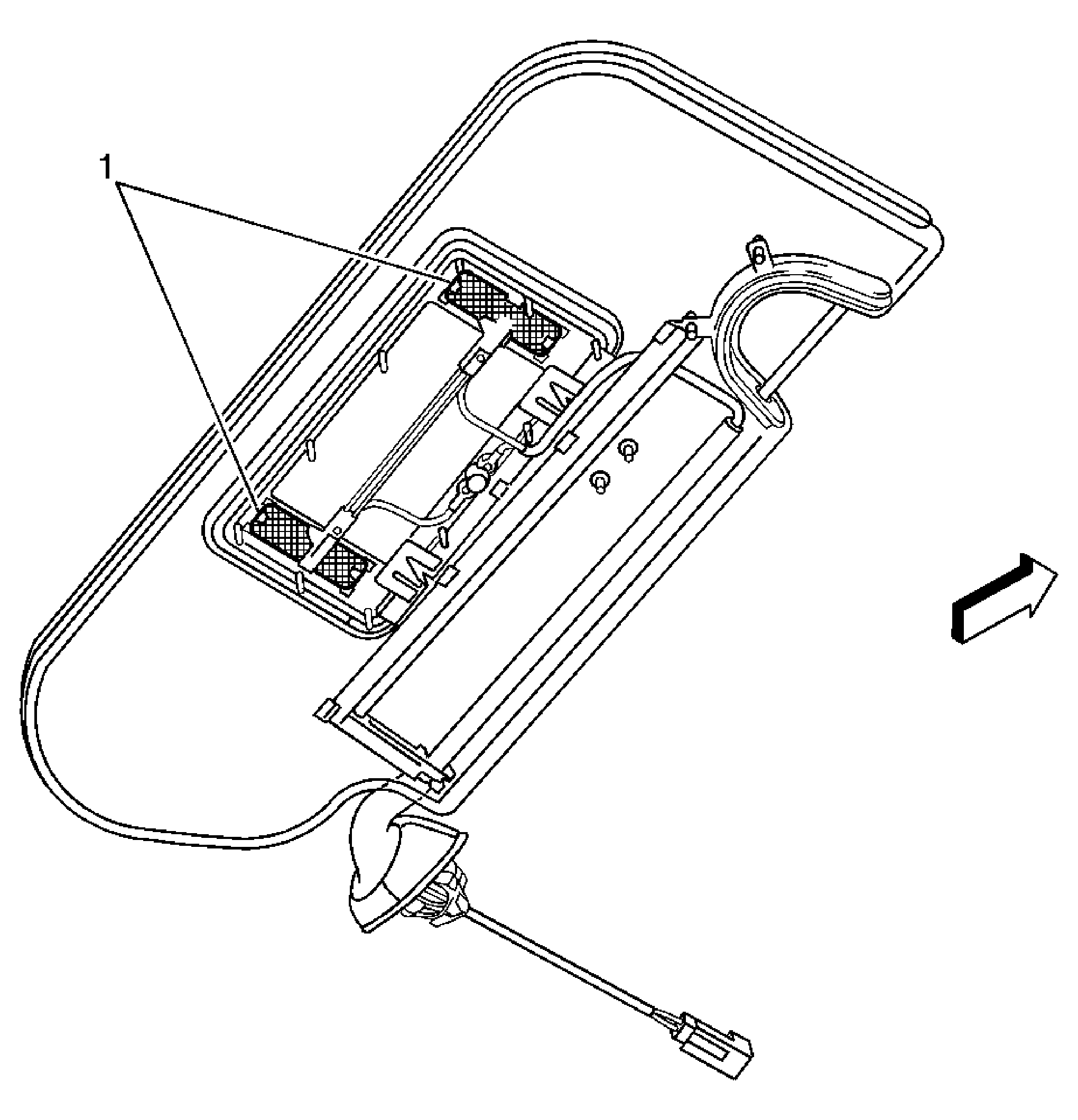

Fig 11: Cutaway View of Left Sunshade Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamps, LF

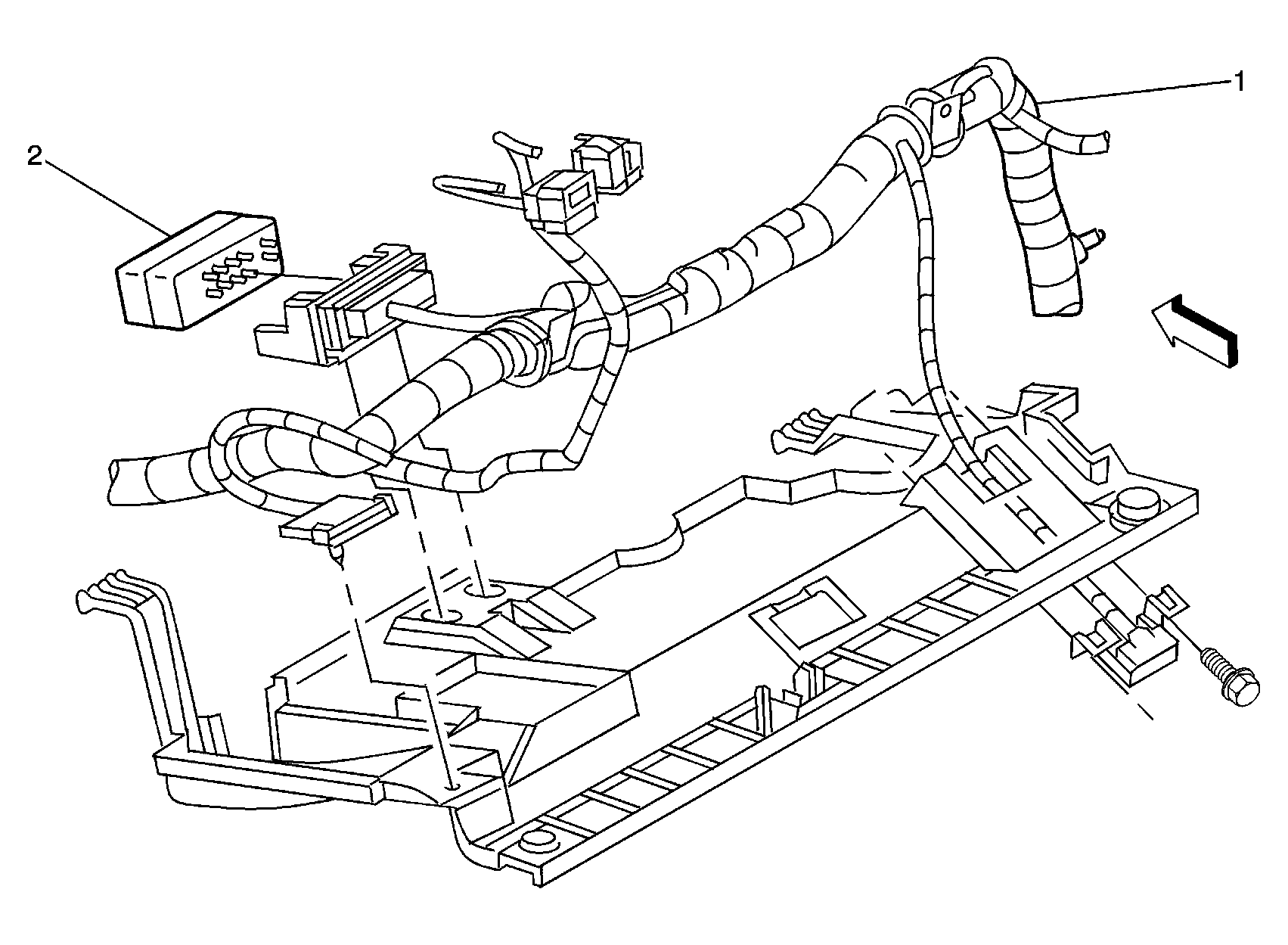

Fig 12: Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left IP Harness
2	Turn Signal/Hazard Flasher Module

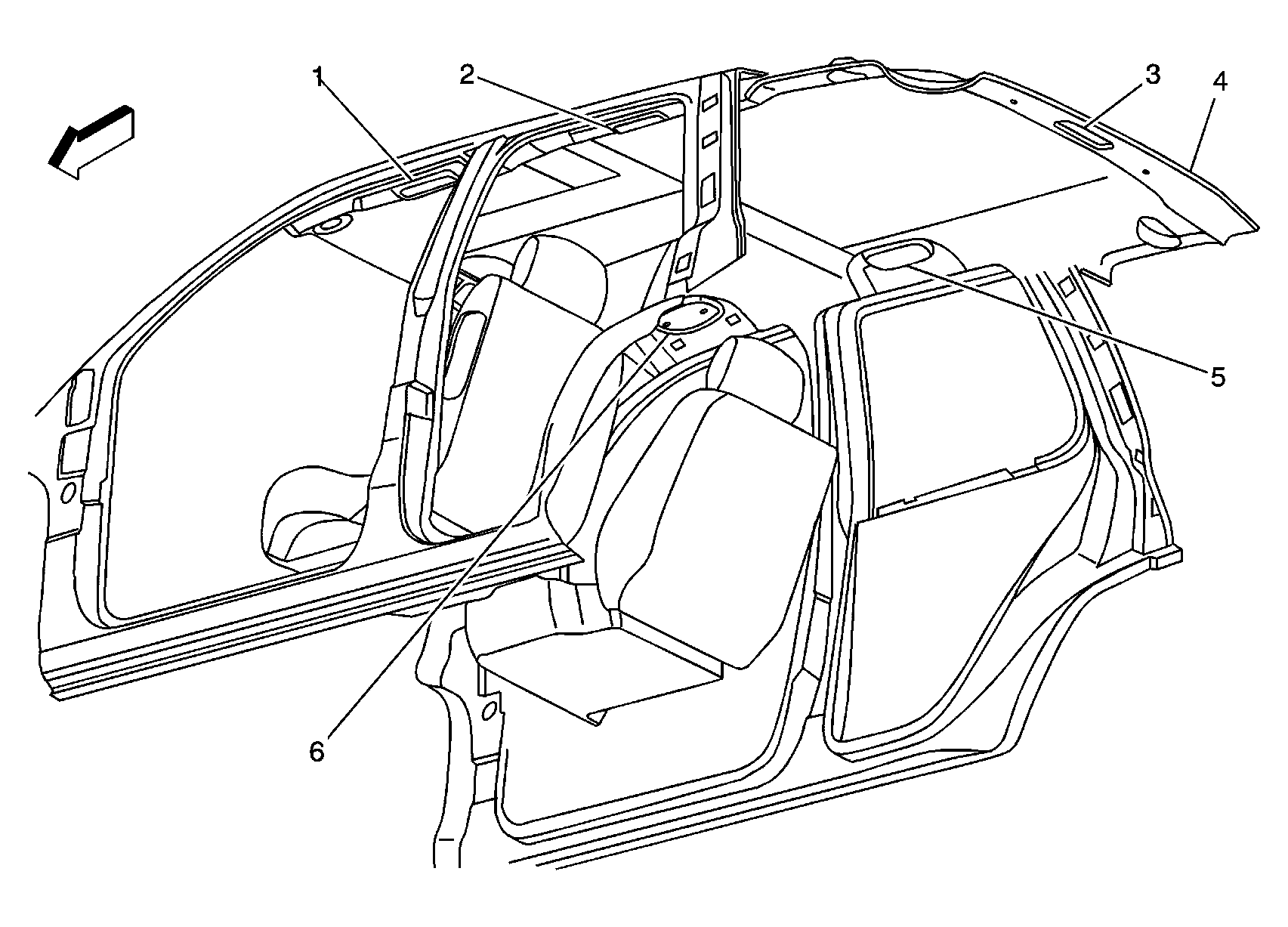

Fig 13: Courtesy/Reading Lamps and Cargo Lamps (Short Wheelbase Shown, Long Wheelbase Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp-LF
2	Courtesy/Reading Lamp-LR
3	Cargo Lamp
4	Headliner
5	Courtesy/Reading Lamp-RR
6	Courtesy/Reading Lamp-RF

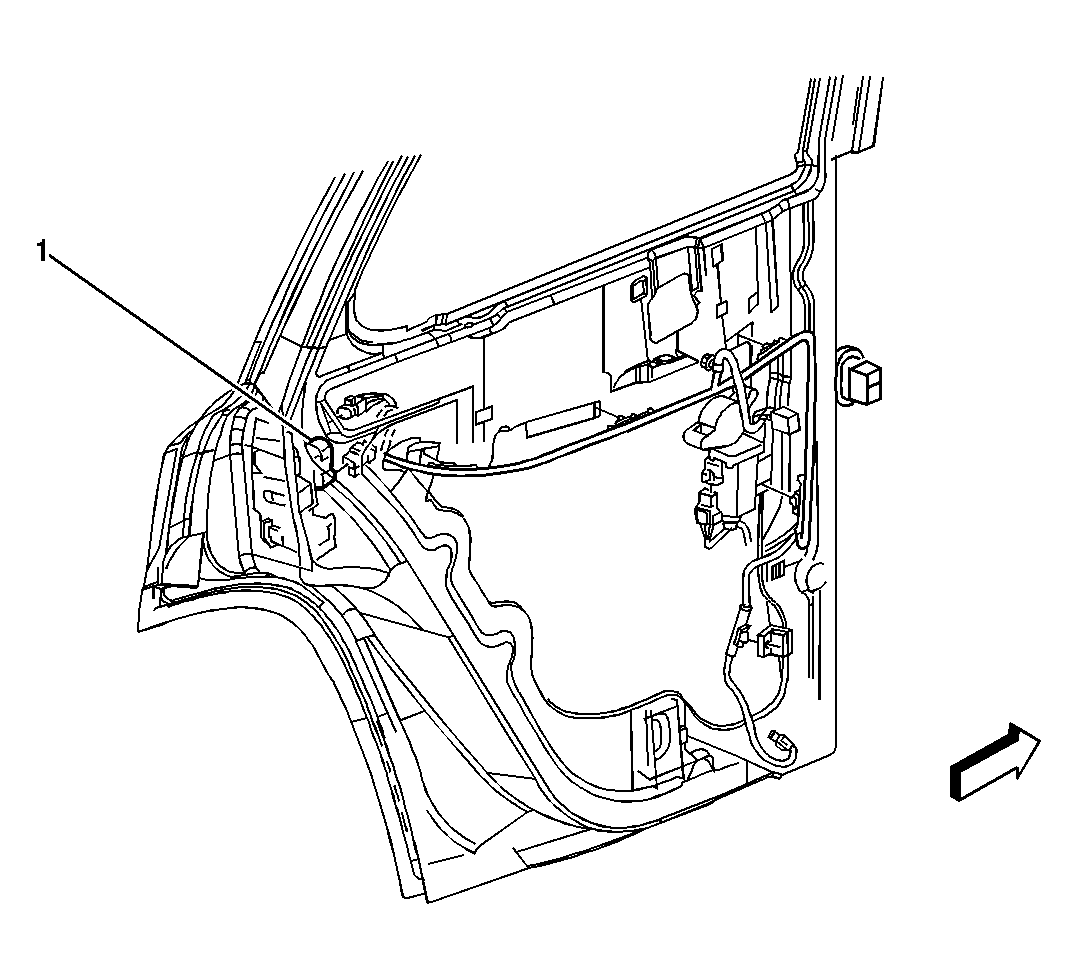

Fig 14: Door Jamb Switch, Miniwedge-LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch, Miniwedge-LR

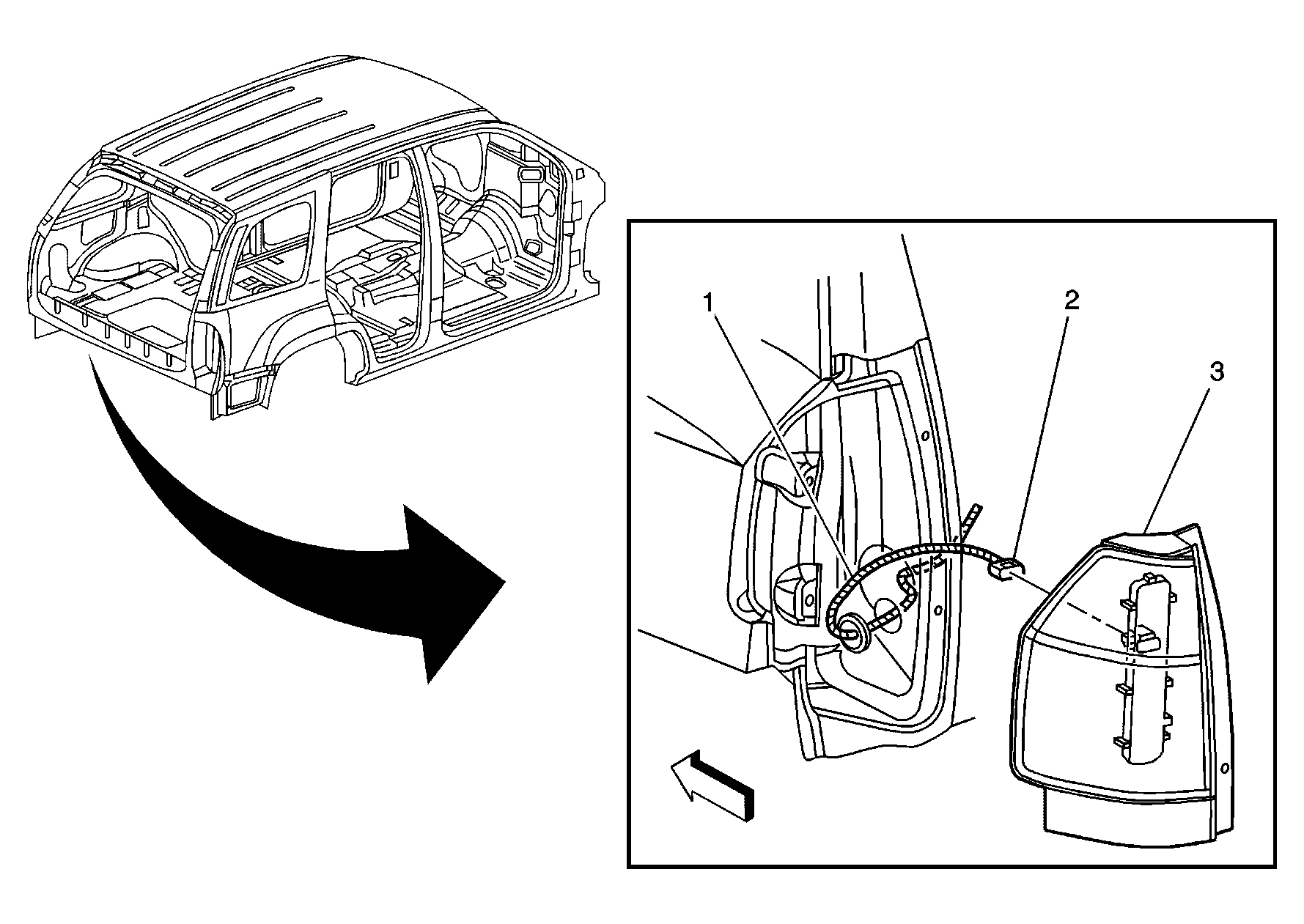

Fig 15: Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	Tail Lamp Connector
3	Tail Lamp

Fig 16: Backup Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamps

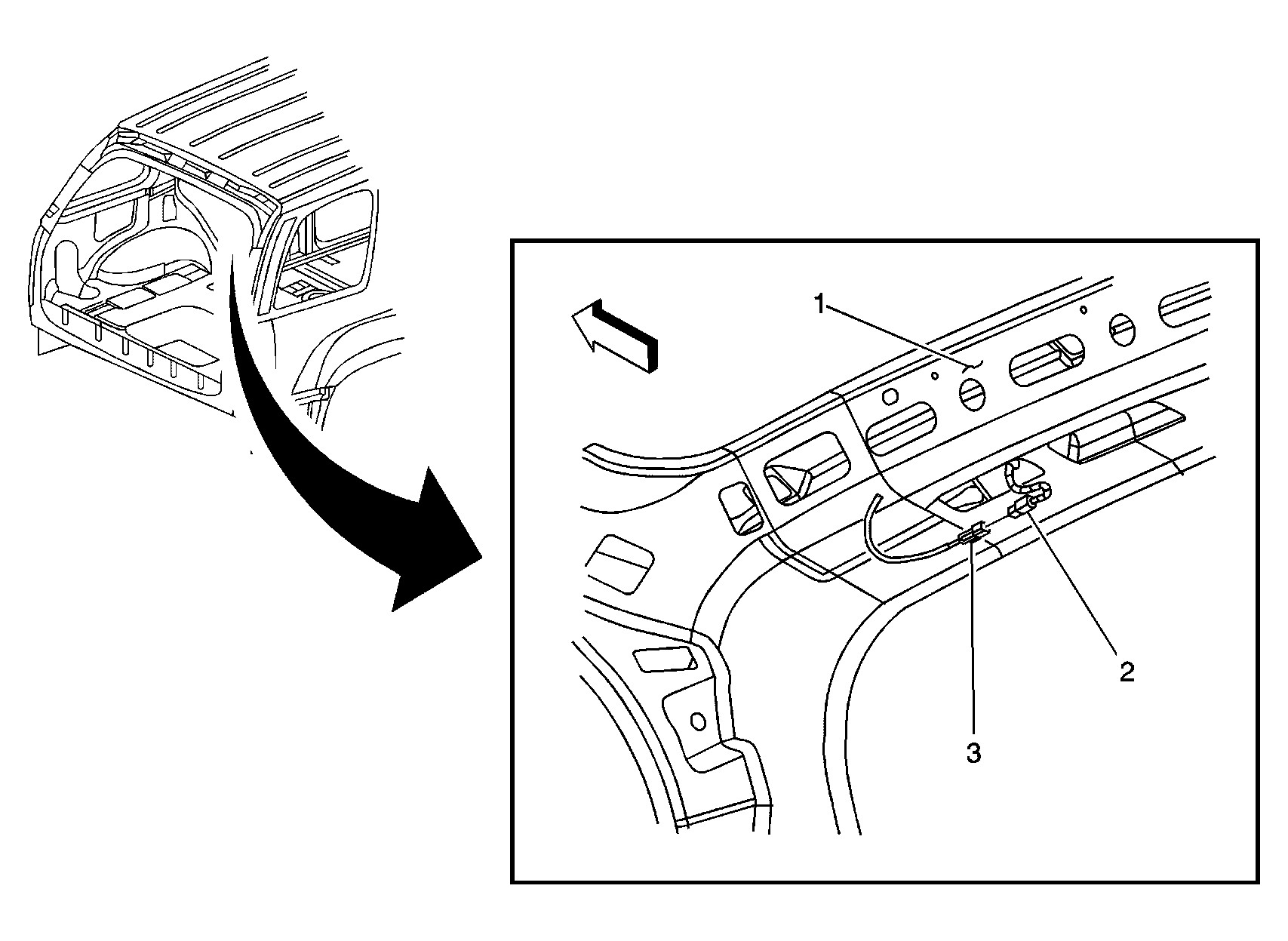

Fig 17: Center High-Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame Above Body Back Opening
2	Tail Lamp Connector
3	Tail Lamp

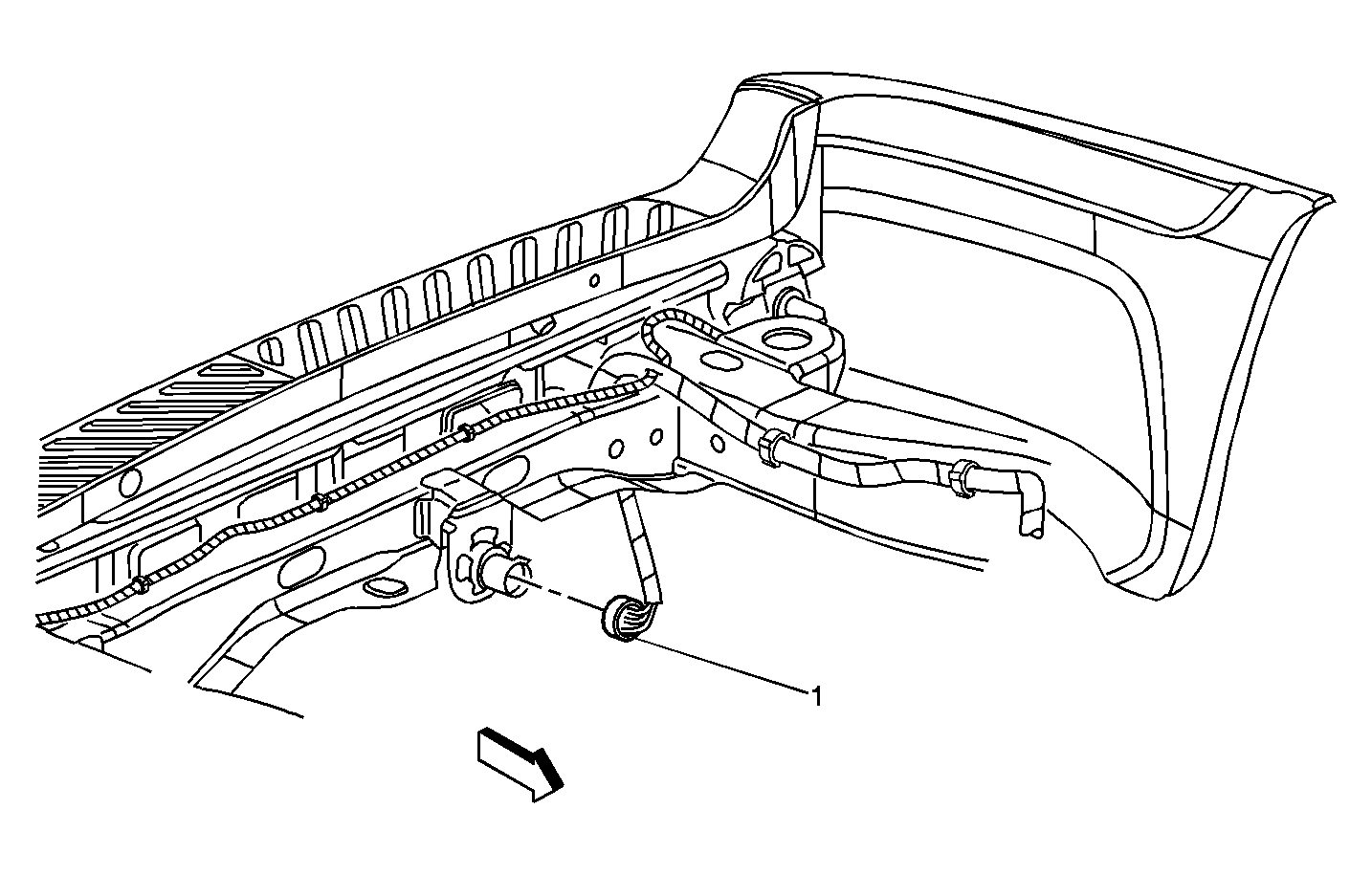

Fig 18: Trailer Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trailer Connector
