ABS Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

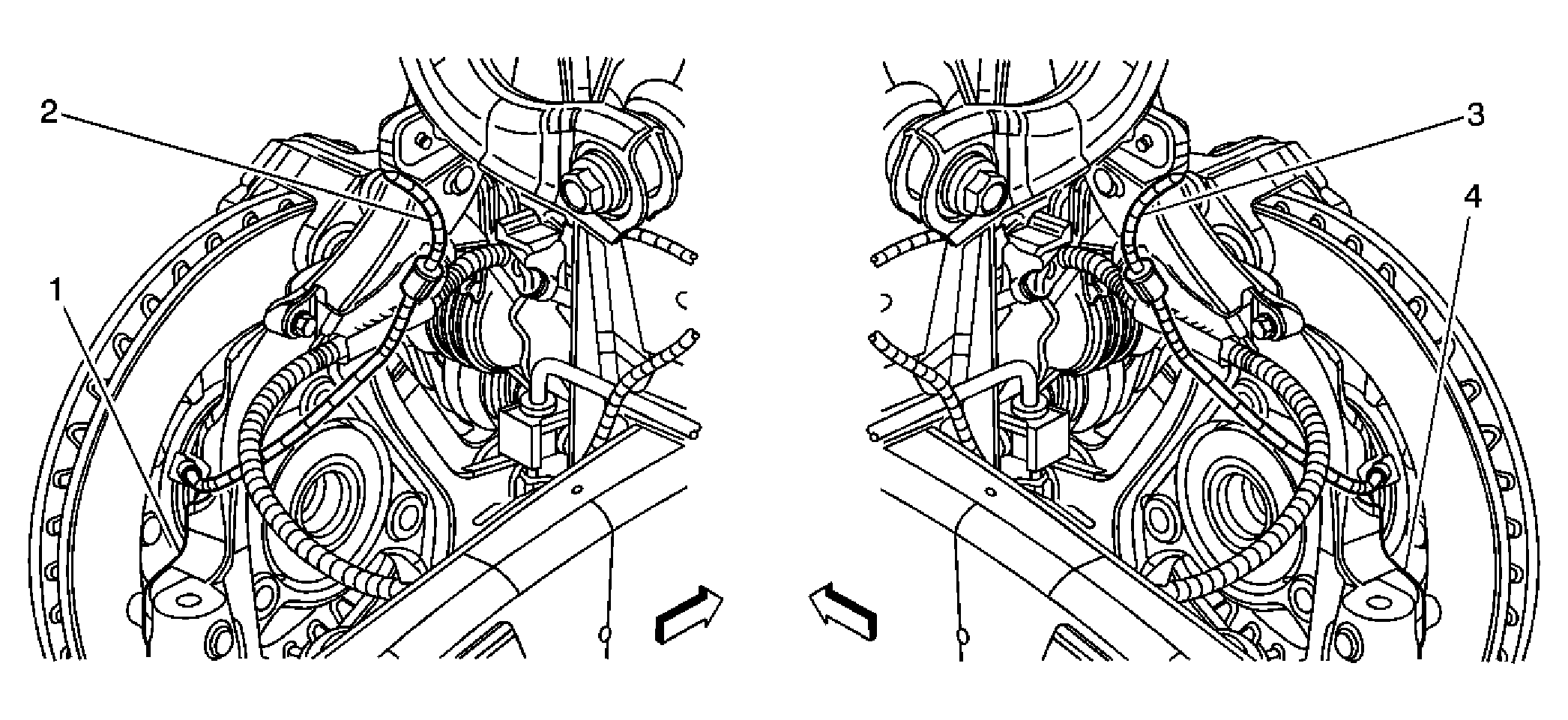

Fig 1: Front Hubs and Rotors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LH Steering Knuckle
2	Wheel Speed Sensor - LF
3	Wheel Speed Sensor - RF
4	RH Steering Knuckle

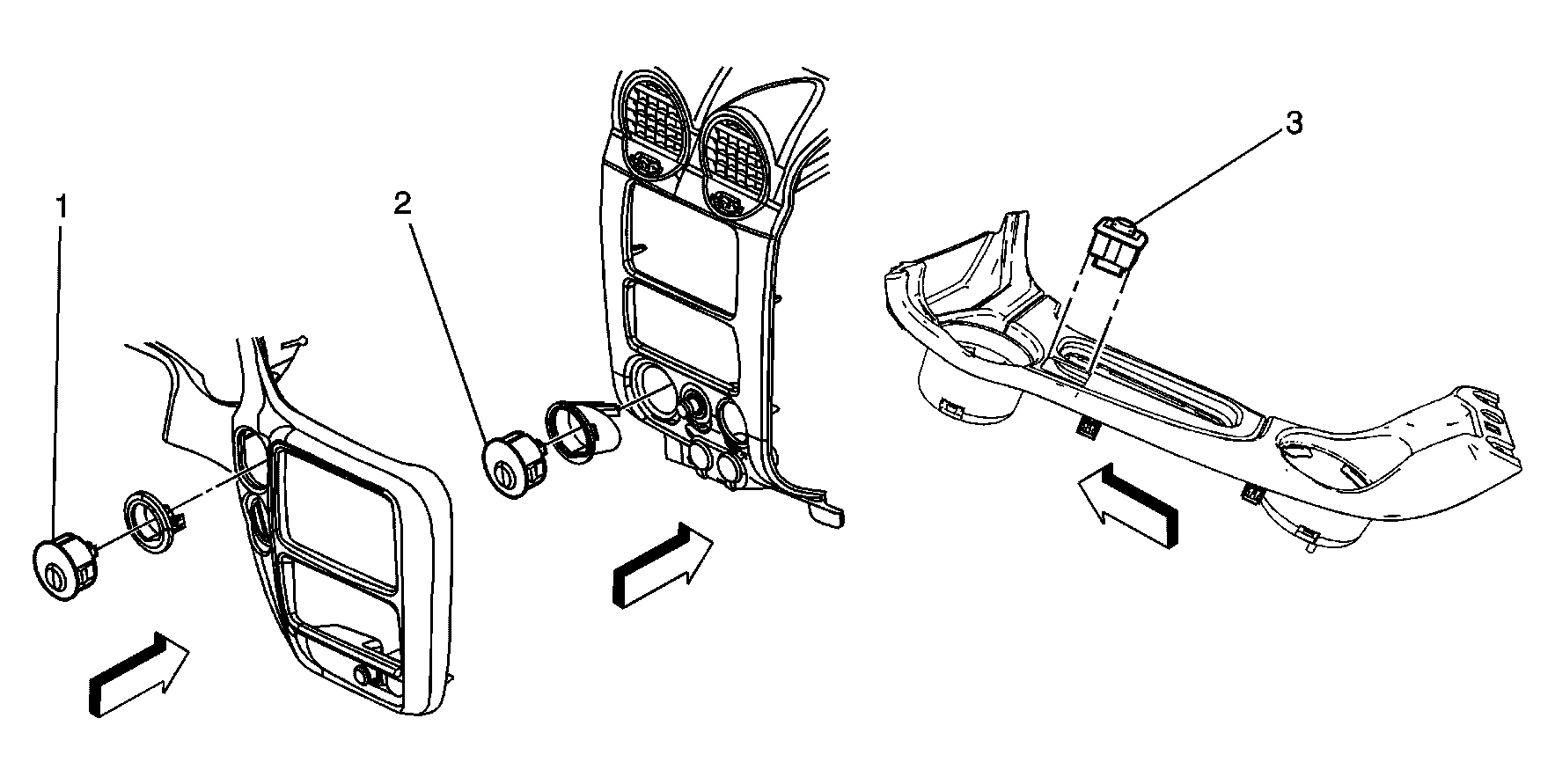

Fig 2: I/P Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch - Chevrolet
2	Traction Control Switch - GMC
3	Traction Control Switch - Buick/Oldsmobile

Fig 3: Electronic Brake Control Module (EBCM) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	Electronic Brake Control Module (EBCM) Electrical Connector - C1
3	Electronic Brake Control Module (EBCM) Electrical Connector - C2
4	Frame
