Fuel Sender Access Panel: Installation

WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the fuel sender access panel. See Fig 4. Install the fuel sender access panel bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS . Install the right-side rear compartment trim panel to the vehicle. See Fig 3. Install the push in retainer to retain the right-side rear compartment trim panel to the vehicle.
Install the rear compartment trim panel. See Fig 2. Install the convenience net retainers. Install the spare tire. Install the rear compartment sill plate to the vehicle. See Fig 1.
Press the rear compartment sill plate down to engage the clips to the compartment sill. Install the convenience net retainers to retain the rear compartment sill plate to the vehicle. Install the rear compartment convenience net. Close the rear compartment lid.

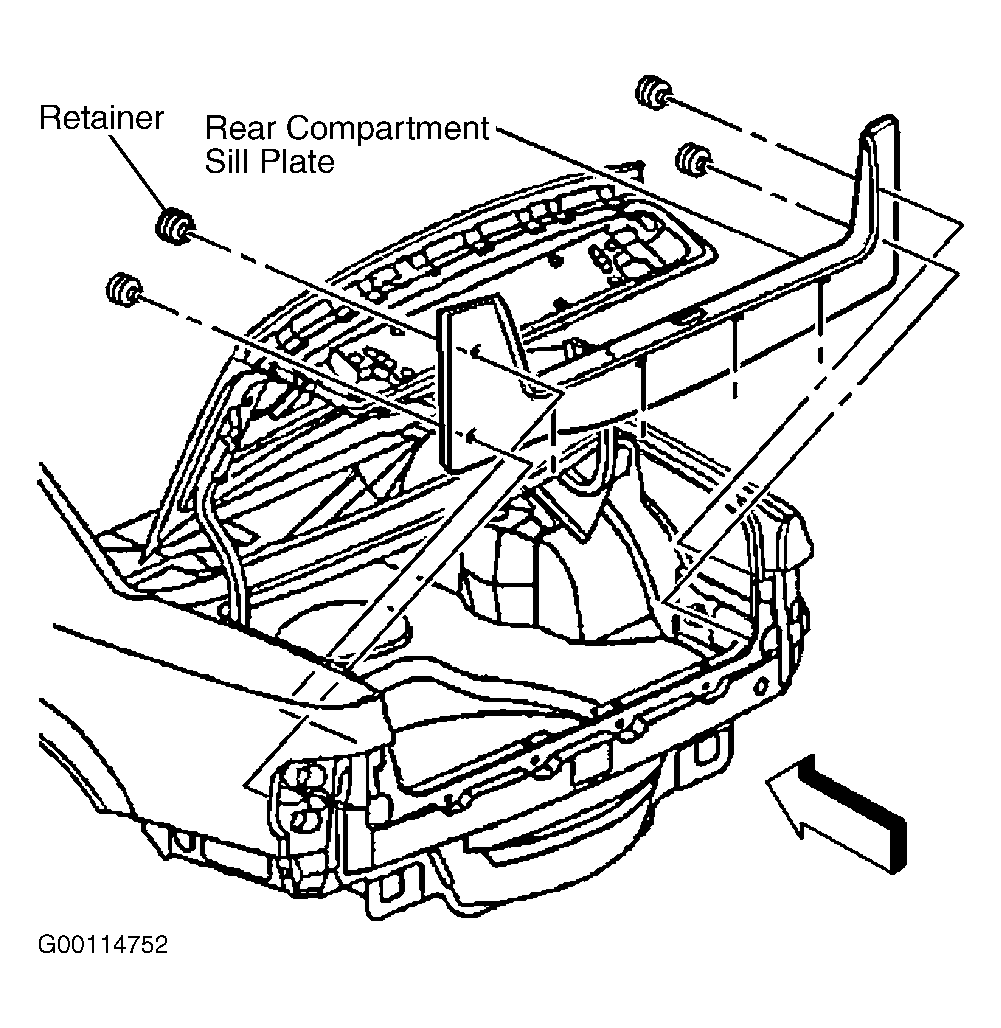

Fig 1: Removing/Installing Rear Compartment Sill Plate

Courtesy of GENERAL MOTORS CORP.

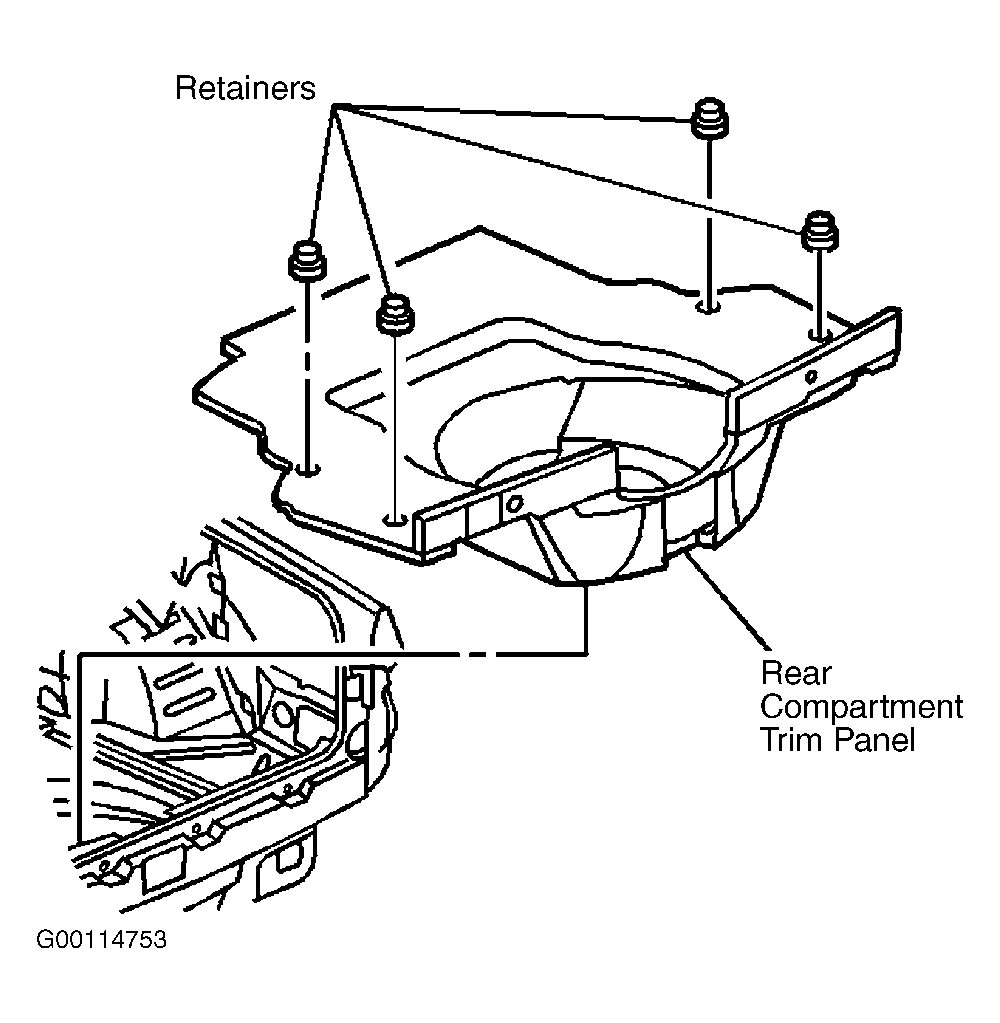

Fig 2: Removing/Installing Rear Compartment Trim Panel

Courtesy of GENERAL MOTORS CORP.

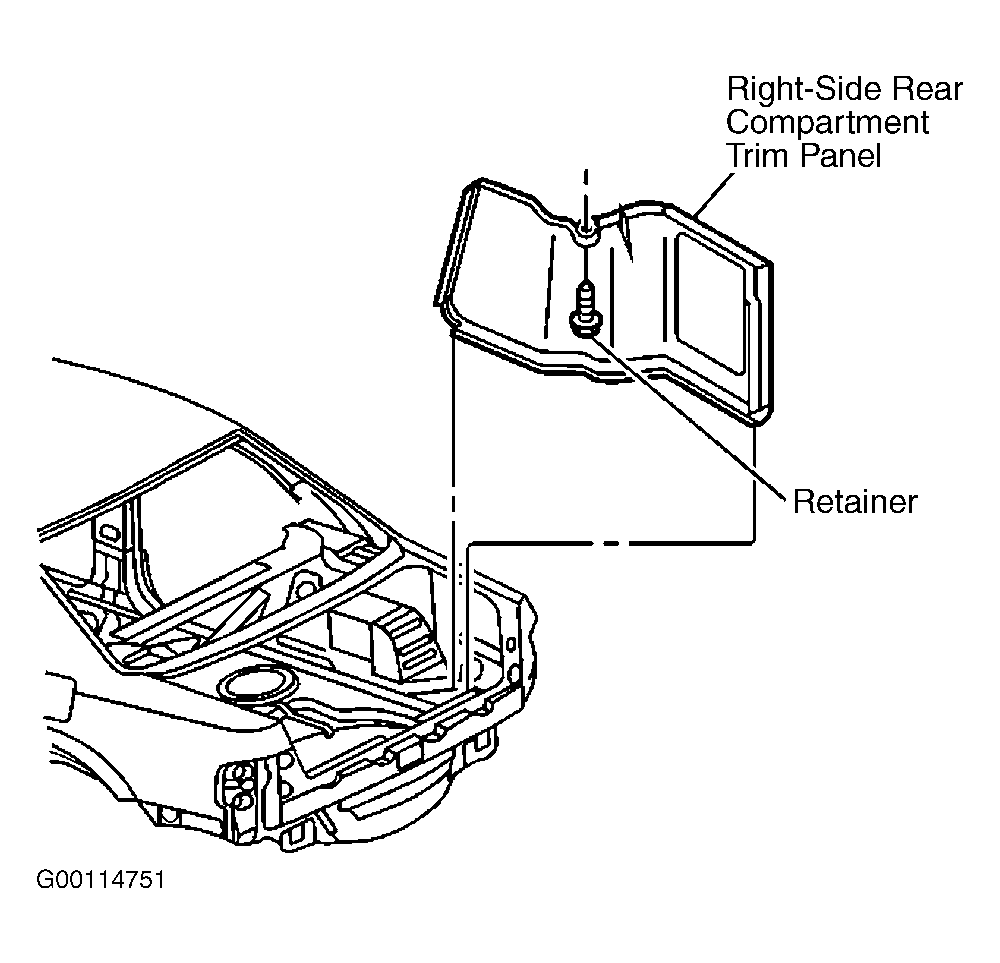

Fig 3: Removing/Installing Right-Side Rear Compartment Trim Panel

Courtesy of GENERAL MOTORS CORP.

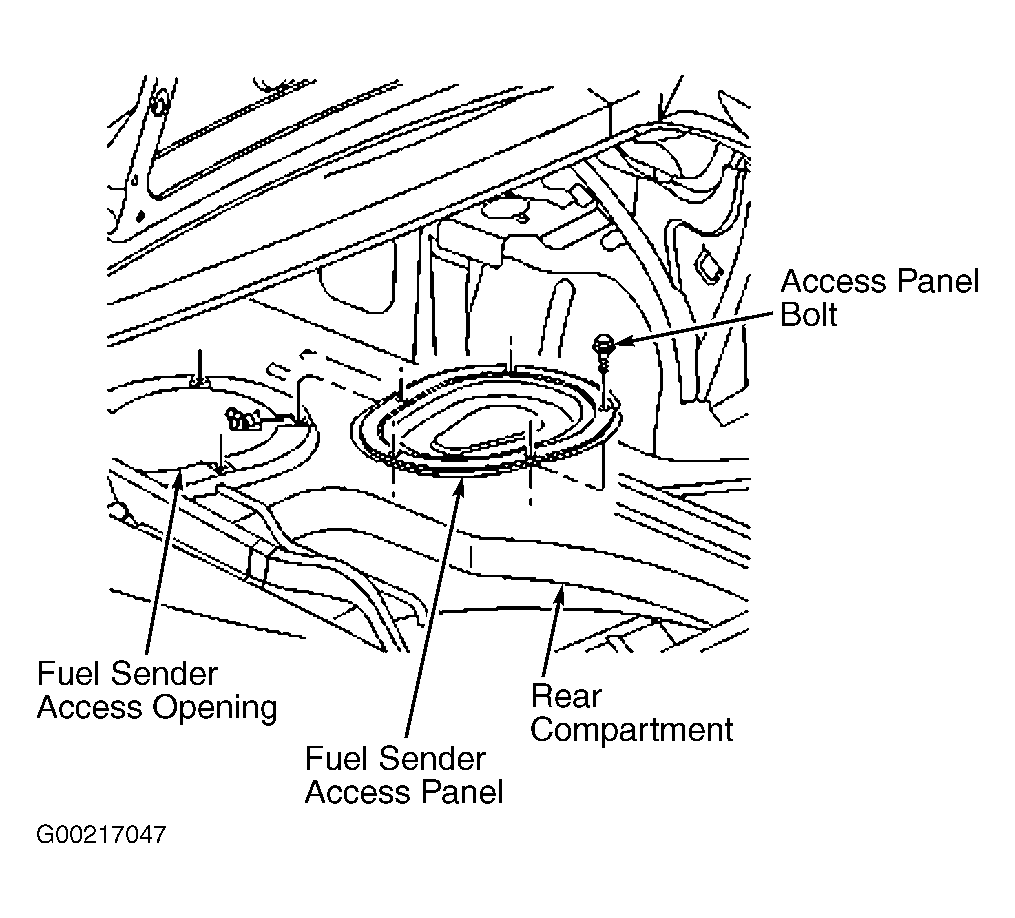

Fig 4: Removing/Installing Fuel Sender Access Panel

Courtesy of GENERAL MOTORS CORP.
