Throttle Position Sensor: Installation
WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
- Install the NEW TP sensor "O" ring on the TP sensor. Install the TP sensor on the throttle body assembly. Install the 2 TP sensor screws. Tighten the TP sensor attaching screws to specification. See TORQUE SPECIFICATIONS .

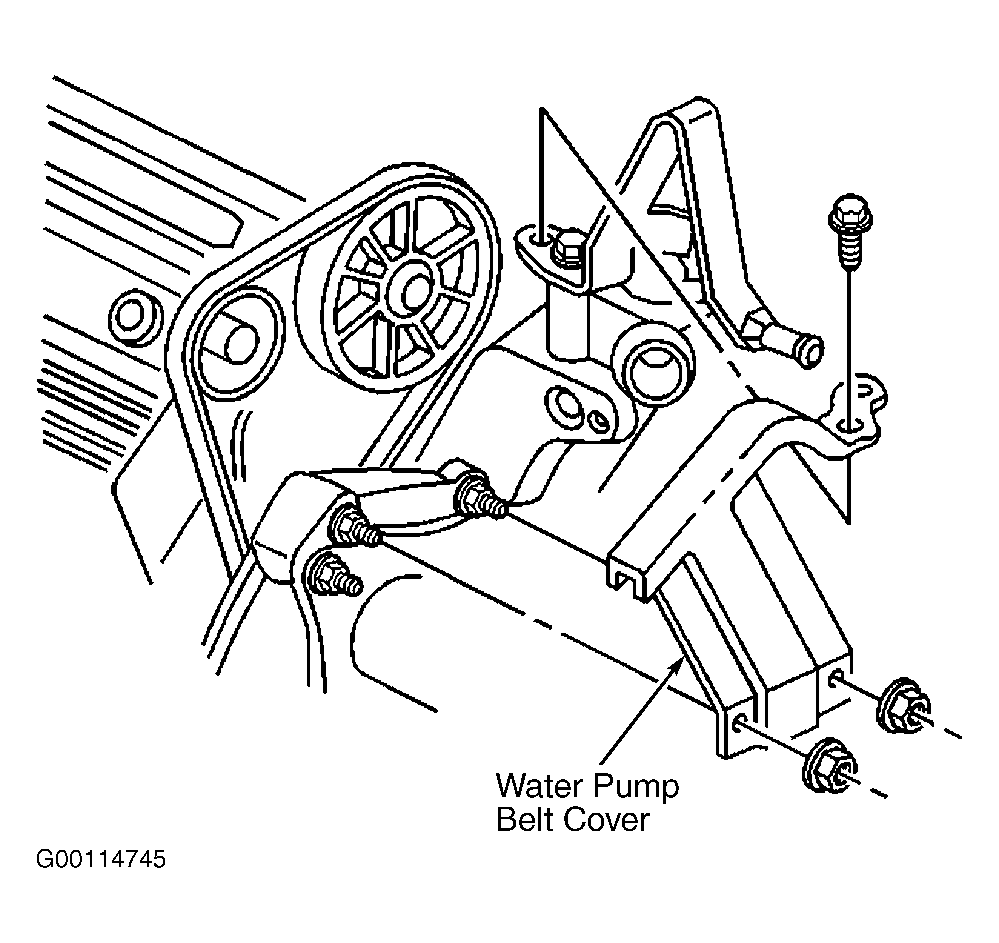

- Install the TP sensor electrical connector. Connect the IAC valve electrical connector. Connect the MAP sensor electrical connector. Install the water pump belt cover. Tighten the water pump belt cover bolt/nut to specification. Perform the following TP Sensor learn procedure: Turn the ignition to the RUN/ON position. Wait 1 minute. Turn the ignition to the LOCK/OFF position. Wait 15 seconds.
