Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

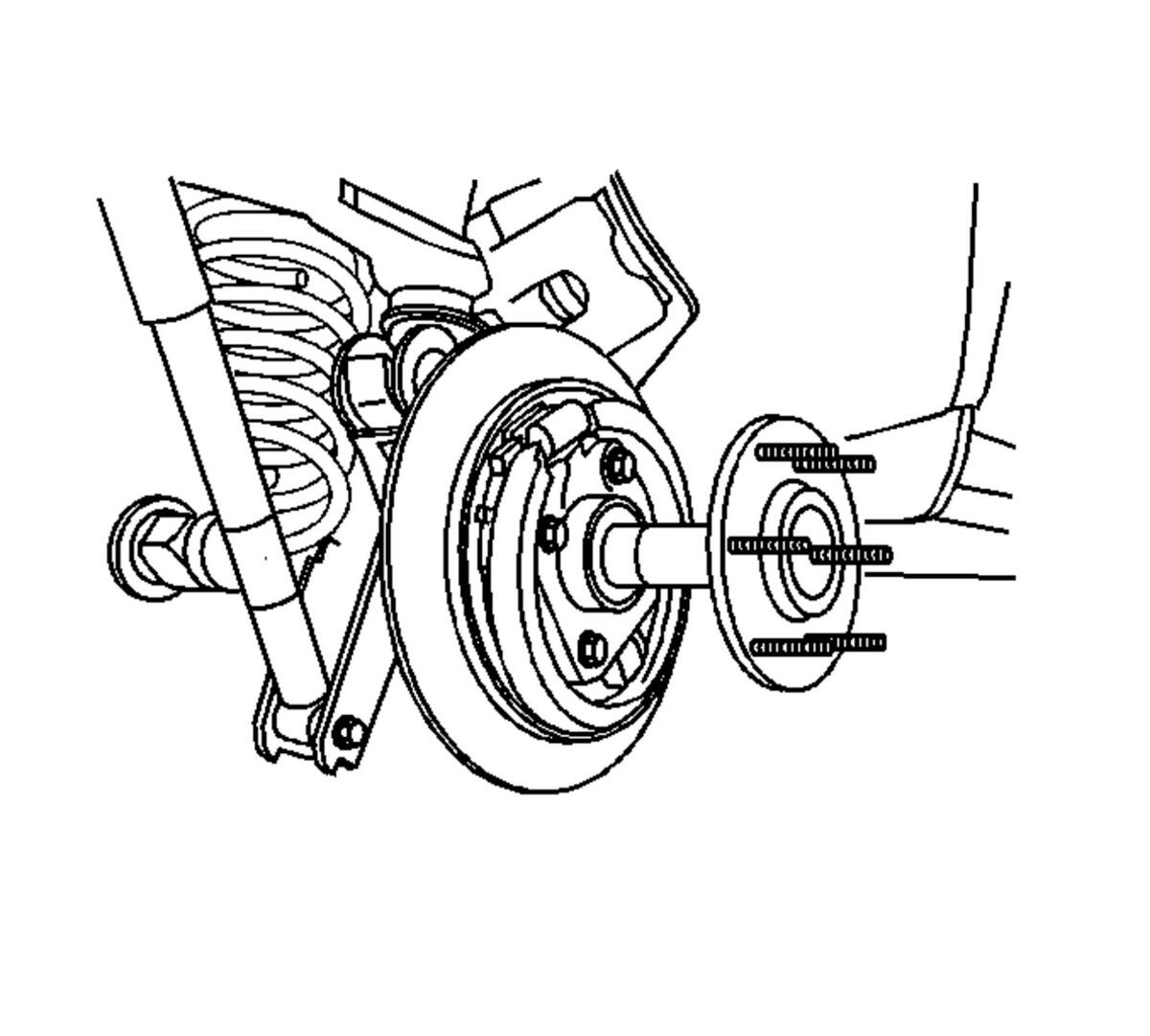

Fig 1: View Of Backing Plate & Nuts - Rear

Courtesy of GENERAL MOTORS CORP.

Install the backing plate to the axle housing flange.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the backing plate nuts.
Tighten: Tighten the backing plate nuts to 135 N.m (100 lb ft).

Fig 2: View Of Rear Axle Assembly

Courtesy of GENERAL MOTORS CORP.

Install the rear drive axle. Refer to Rear Axle Shaft Replacement in Rear Drive Axle.

Fig 3: View Of Park Brake Shoe

Courtesy of GENERAL MOTORS CORP.

Install the park brake shoe.

Fig 4: View Of Rotor To Hub

Courtesy of GENERAL MOTORS CORP.

Install the rear brake rotor.

Fig 5: View Of Caliper Bracket

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper and bracket assembly. Refer to Brake Caliper Bracket Replacement - Rear .

Fig 6: View Of Parking Brake Cable

Courtesy of GENERAL MOTORS CORP.

Install the park brake cable to the rear brake caliper. Refer to Park Brake Cable Replacement in Park Brake.
Adjust the park brake shoe. Refer to Park Brake Adjustment in Park Brake.
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
