Data Link Communications Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

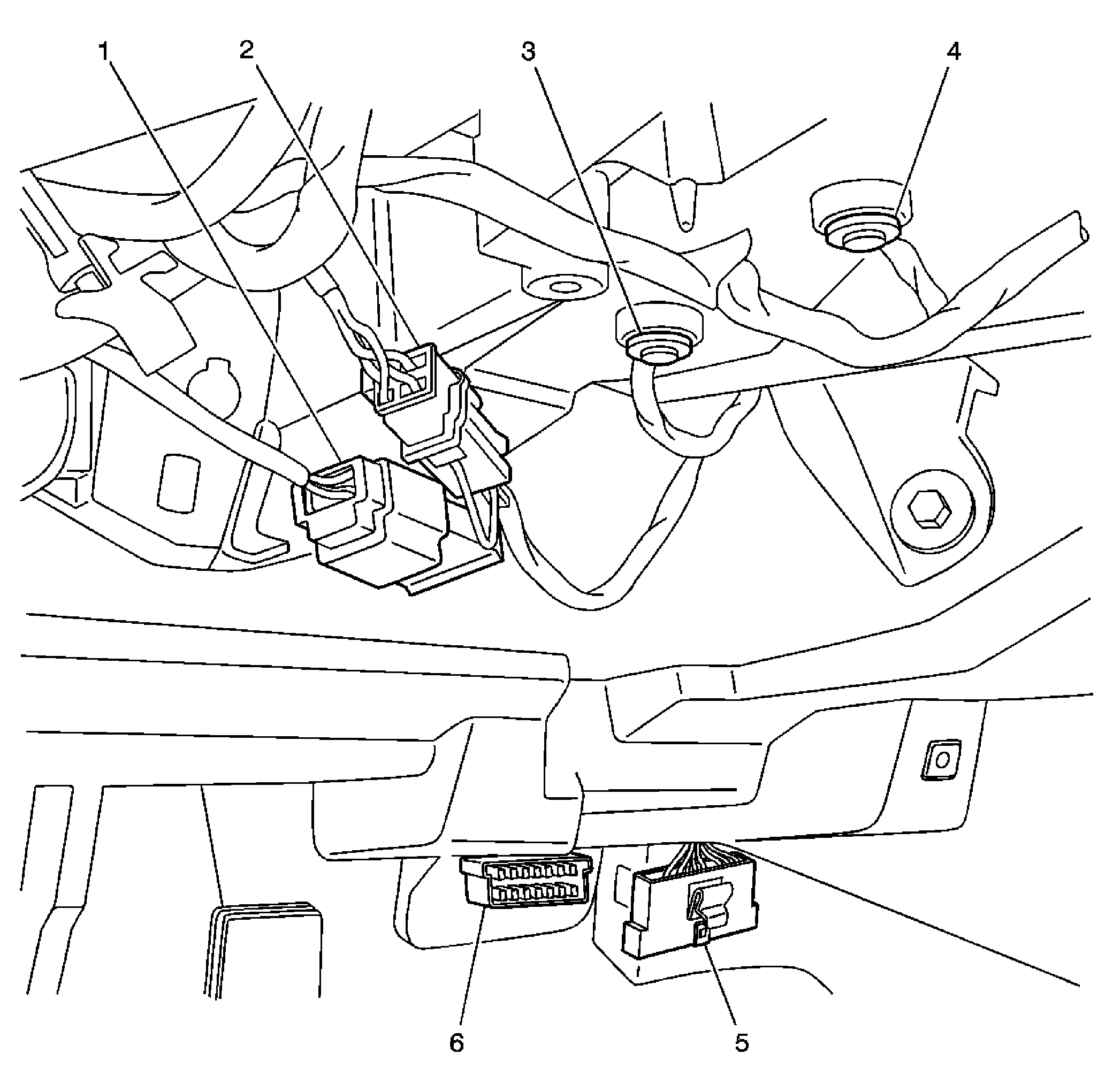

Fig 1: Right Side of Upper Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C201
2	Inflatable Restraint Steering Wheel Module Coil, C1
3	G202
4	G201
5	Splice Pack SP205
6	Data Link Connnector (DLC)
