Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor control module to the HVAC module.

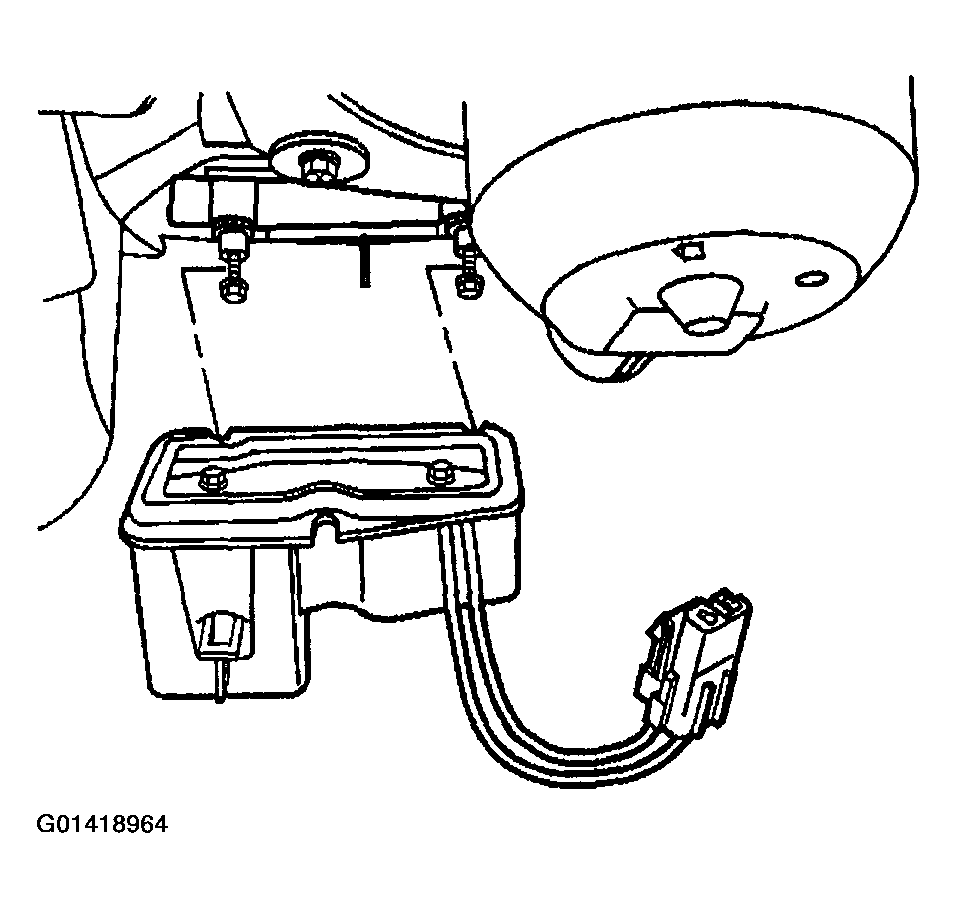

    Fig 1: Installing Blower Motor Control Module
    G01418964Courtesy of GENERAL MOTORS CORP.
  2. Position the blower motor control module forward retaining slots onto the forward retaining screws.
  3. Align and seat the blower control module to the HVAC module.
  4. Install the rear blower motor control module retaining screw.
    NOTE: Refer to FASTENER NOTICE .
  5. Tighten all the blower motor control module retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  6. Connect the blower motor electrical connector.

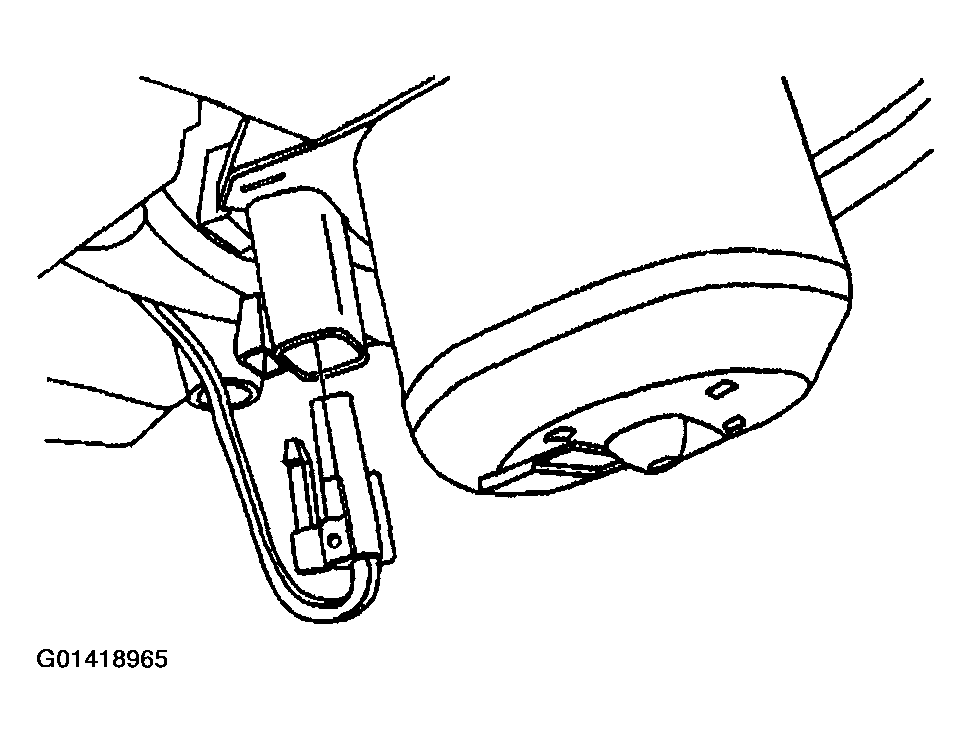

    Fig 2: Connecting Blower Motor Electrical Connector
    G01418965Courtesy of GENERAL MOTORS CORP.
  7. Connect the blower motor control module electrical connector.

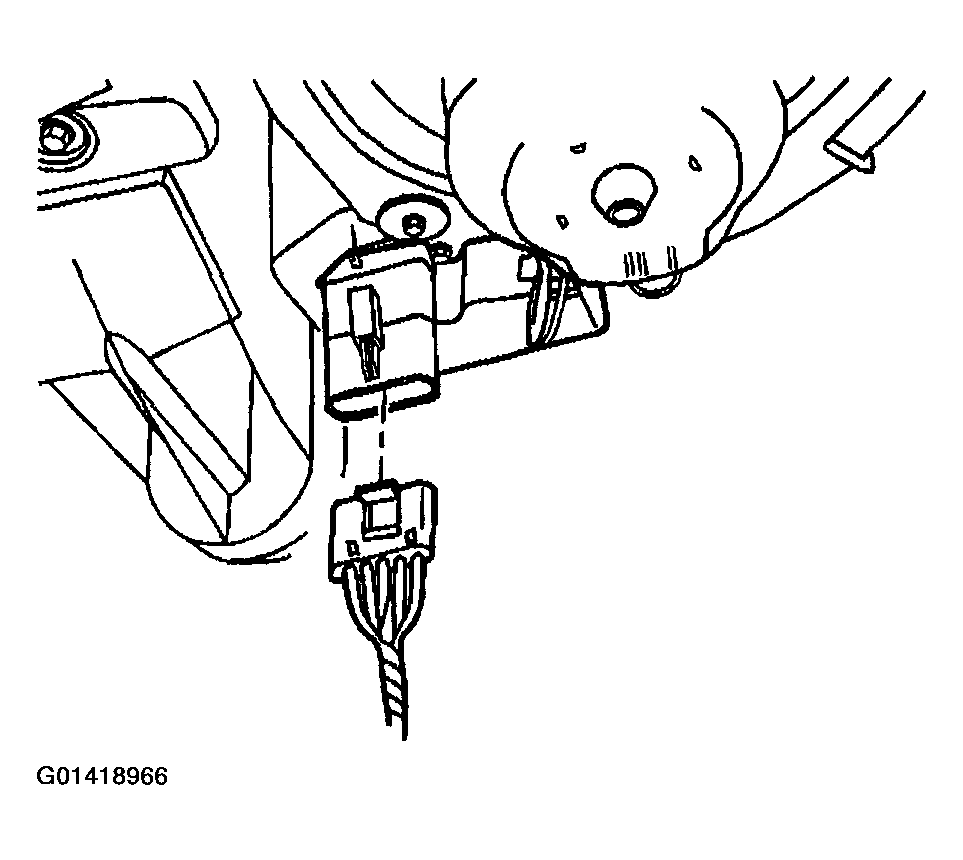

    Fig 3: Connecting Blower Motor Control Module Electrical Connector
    G01418966Courtesy of GENERAL MOTORS CORP.
  8. Install the IP lower insulator panel - RH. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
