Theft Deterrent System Component Views
WARNING:
This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

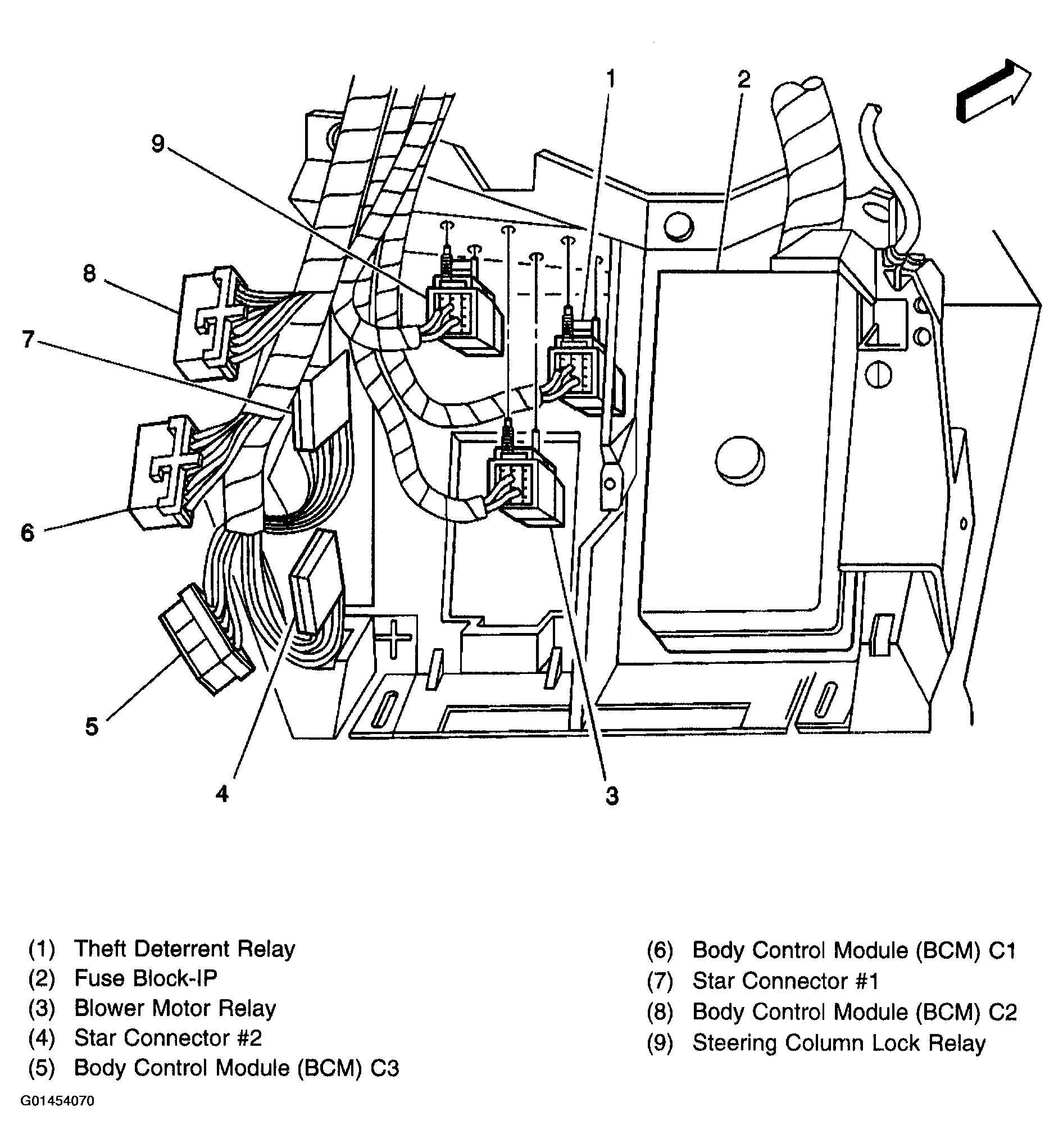

Fig 1: Under RH Side Of Dash
Courtesy of GENERAL MOTORS CORP.

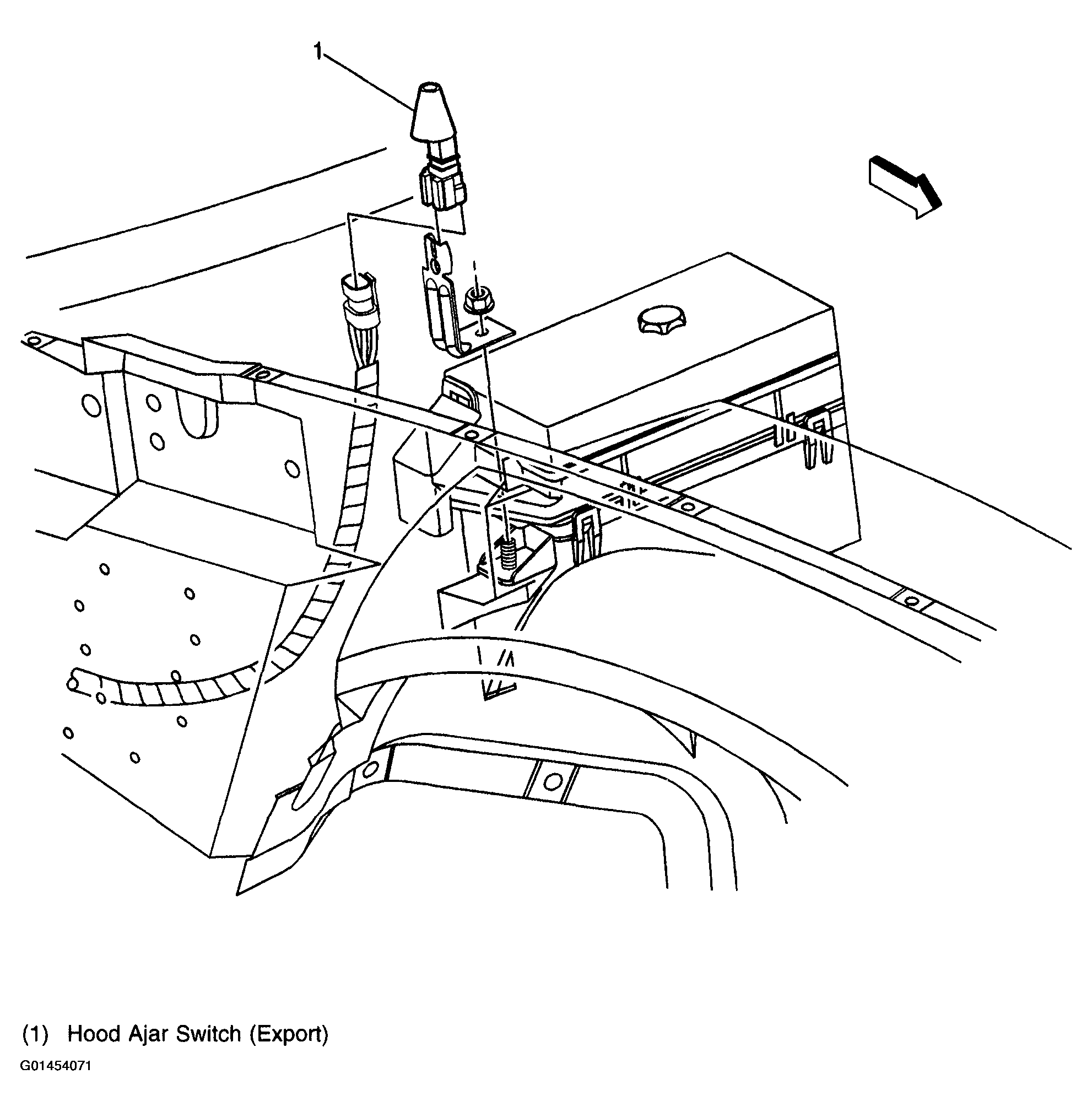

Fig 2: Hood Ajar Switch
Courtesy of GENERAL MOTORS CORP.
