Automatic Transmission Shift Lock Control Schematics

Fig 1: Pontiac Schematic
GM1403242Courtesy of GENERAL MOTORS CORP.

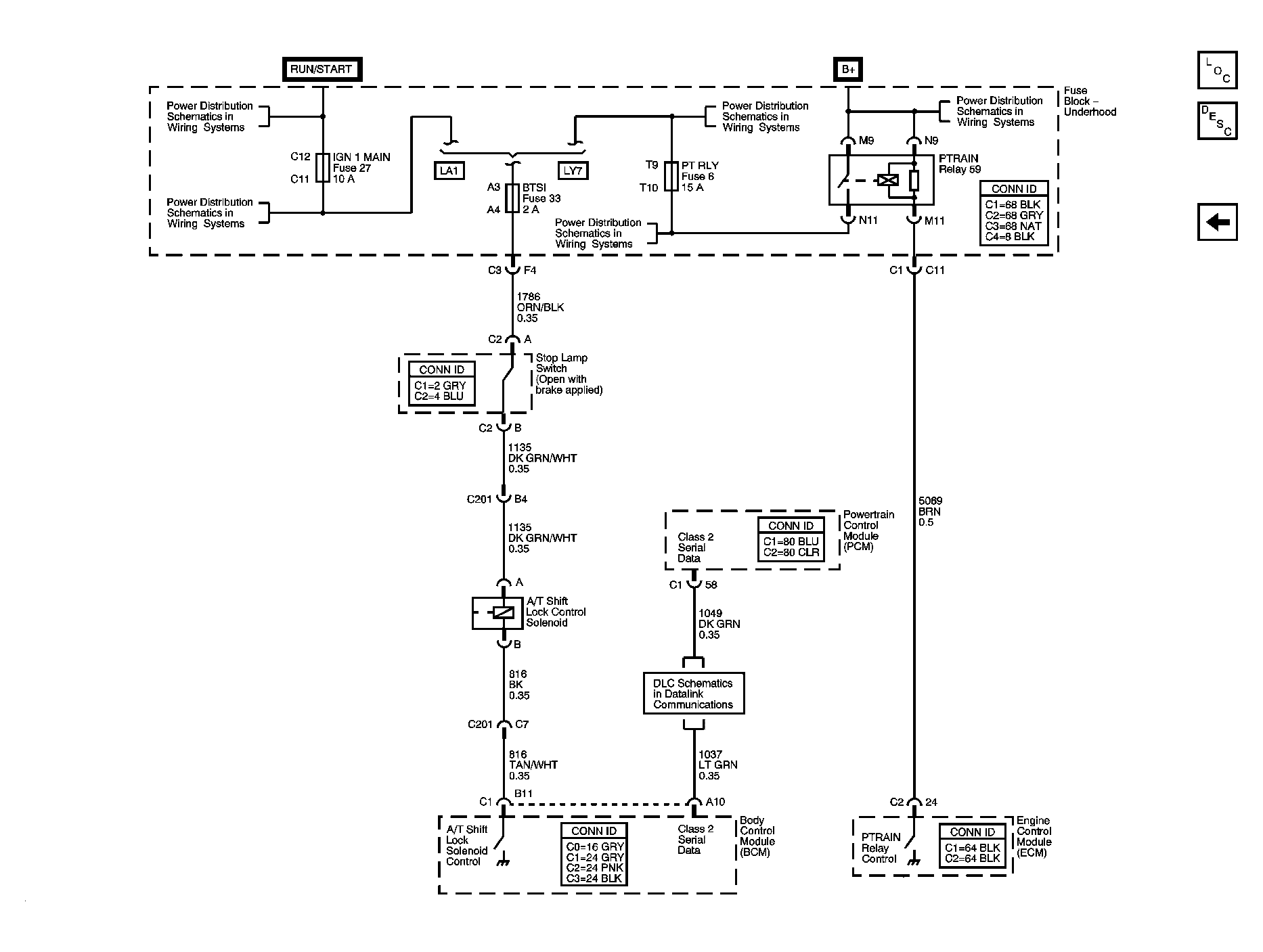

Fig 2: Buick Schematic
GM1553621Courtesy of GENERAL MOTORS CORP.
