Installation Procedure

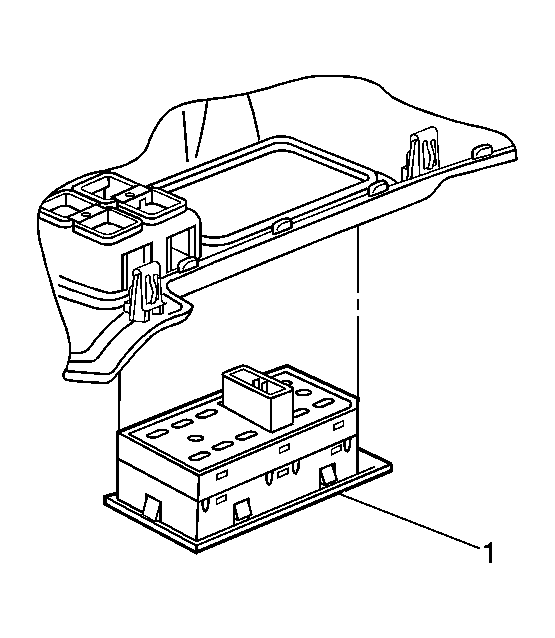

    Fig 1: View Of Power Window Switch
    GM1356021Courtesy of GENERAL MOTORS CORP.
  1. Install the power window switch (1) to the console trim plate, making sure the 6 retaining tabs are engaged.
  2. Install the console trim plate. Refer to Trim Plate Replacement - Console in Instrument Panel, Gages, and Console.
