ABS Component Views

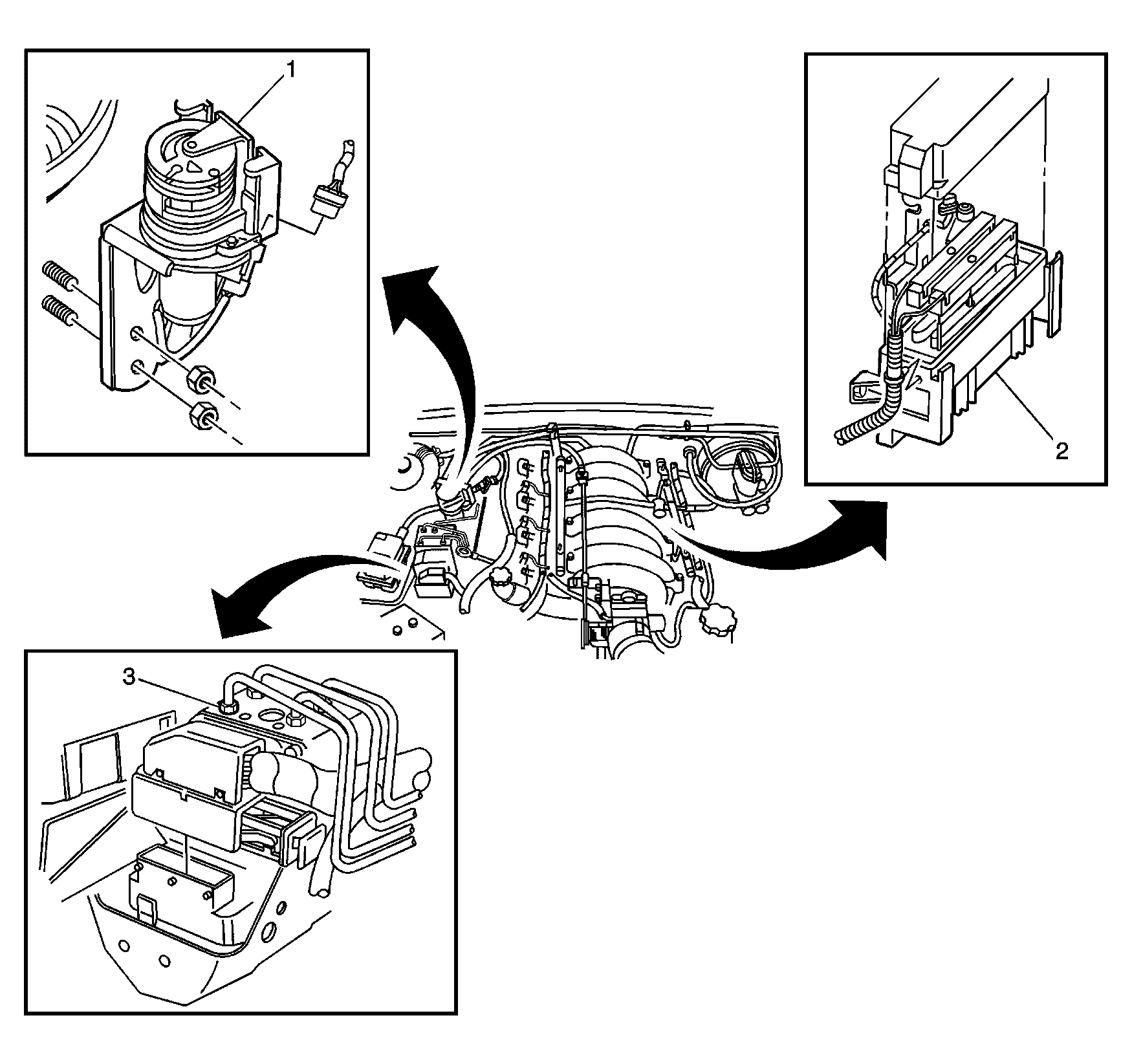

Fig 1: Accelerator & Servo Control Module (ASM), Brake Pressure Modulator (BPMV) & Powertrain Control Module (PCM) Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Modulator Valve (BPMV)
2	Accelerator and Servo Control Module (ASM)
3	Powertrain Control Module (PCM)

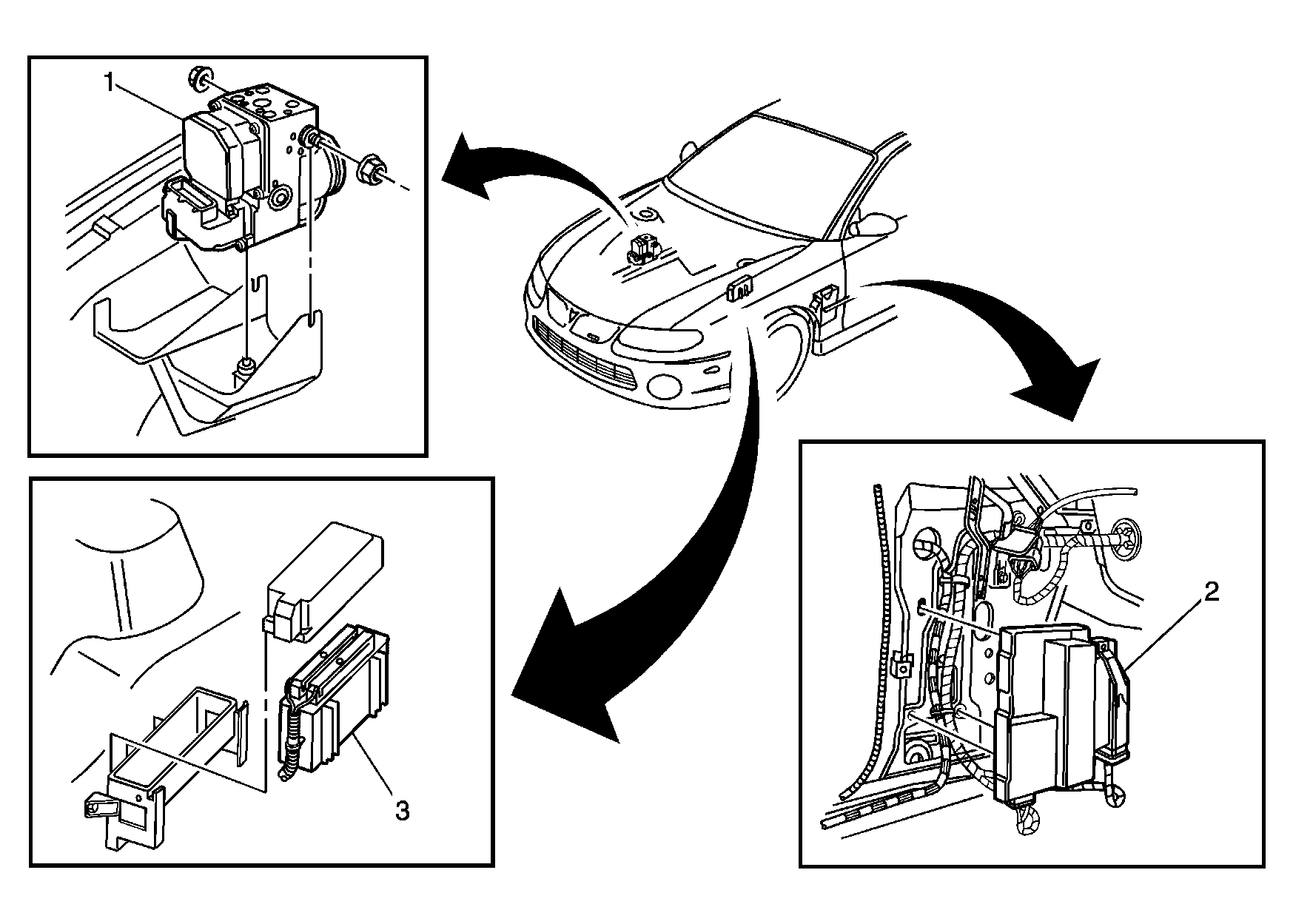

Fig 2: Throttle Relaxer Assembly, Powertrain Control Module (PCM) & Electronic Brake Control Module (EBCM) Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Relaxer Assembly
2	Powertrain Control Module (PCM)
3	Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly

Fig 3: Front Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Main Wiring Harness
2	RF Connector Retaining Clip
3	RF Wheel Speed Sensor Jumper Harness
4	Front Wheel Speed Sensor Jumper Harness
5	Front Wheel Speed Sensor
6	Main Wiring Harness
7	LF Connector Retaining Clip
8	LF Wheel Speed Sensor Jumper Harness

Fig 4: Rear Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LH Rear Wheel Speed Sensor Ring
2	LH Rear Wheel Speed Sensor
3	RH Rear Wheel Speed Sensor
4	RH Rear Wheel Speed Sensor Ring
