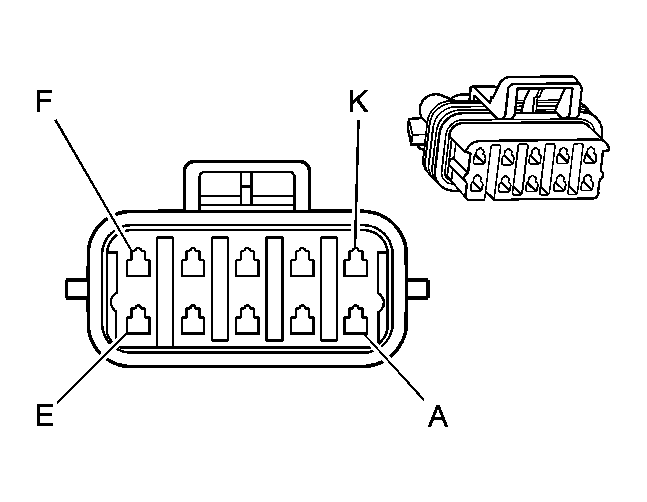

Cruise Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7223-9301-30 10-Way (BK)
Pin	Wire Color	Circuit No.	Function
A	GY/GN	397	Cruise Control On Switch Signal
B	BU	84	Cruise Control Set/Coast Switch Signal
C	GY/BK	87	Cruise Control Resume/Accel Switch Signal
D	BN	86	Cruise Control Release Signal
E	BK	150	Ground
F	PK	139	Ignition 1 Voltage
G	BU/RD	20	Stop Lamp Signal
H	GY	85	Cruise Control Engaged Signal
J	WH	396	Cruise Control Engaged Signal
K	PU/WH	5197	Cruise Control I/P Speed Signal
