Cooling System Component Views

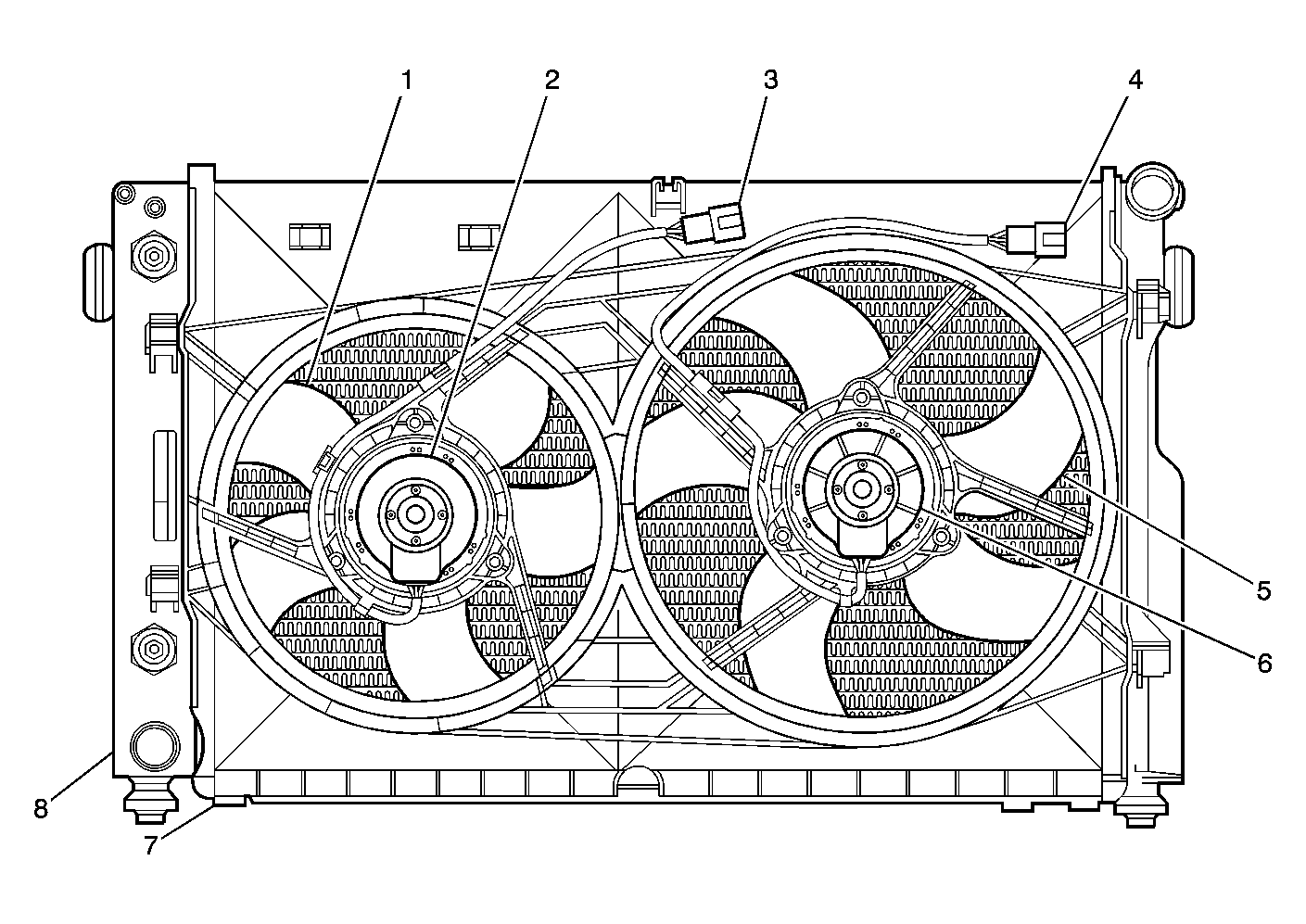

Fig 1: Cooling Fan Component Views
GM1319381Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Fan
2 Left Fan Motor
3 Left Fan Motor Electrical Connector
4 Left And Right Fan Motor Electrical Connector
5 Right Fan
6 Right Fan Motor
7 Fan Shroud
8 Radiator
Fig 2: Cooling Fan Relay Component View
GM1281330Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan Relay No. 1
2 Cooling Fan Relay No. 2
