Installation Procedure

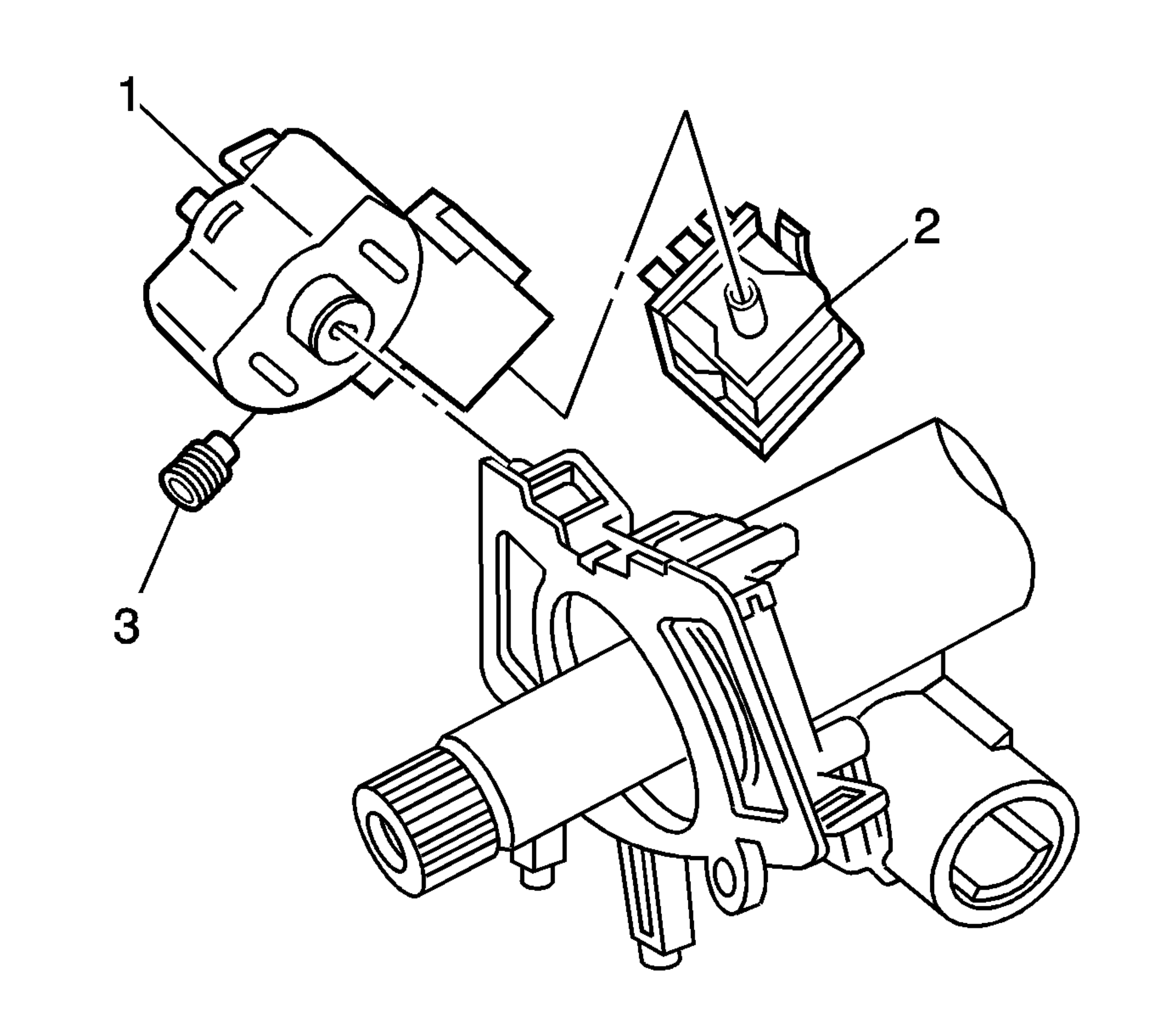

    Fig 1: View Of Ignition Switch & Ignition Lock Cylinder Solenoid
    GM1381625Courtesy of GENERAL MOTORS CORP.
  1. If the vehicle has an automatic transmission, install the ignition lock cylinder solenoid (2) to the ignition switch (1). Engage the 2 clips in order to retain the solenoid to the switch.
  2. If equipped, install the washers to the ignition switch.
  3. Align the ignition switch with the roll pin in the ignition housing.
  4. Install the ignition switch to the ignition housing.
  5. Hold the ignition switch on the roll pin in order to properly align the switch with the housing.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: The ignition and start switch bolt (3), the roll pin, and the washers, if equipped, align the ignition switch with the ignition lock cylinder.
  6. Use a TTX8 bit in order to install the bolt to the ignition switch.

    Tighten:  Tighten the bolt to 1.2 N.m (10.6 lb in).

  7. Connect the connector to the ignition switch. Ensure the clip engages the connector housing.
  8. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement  .
