Installation Procedure

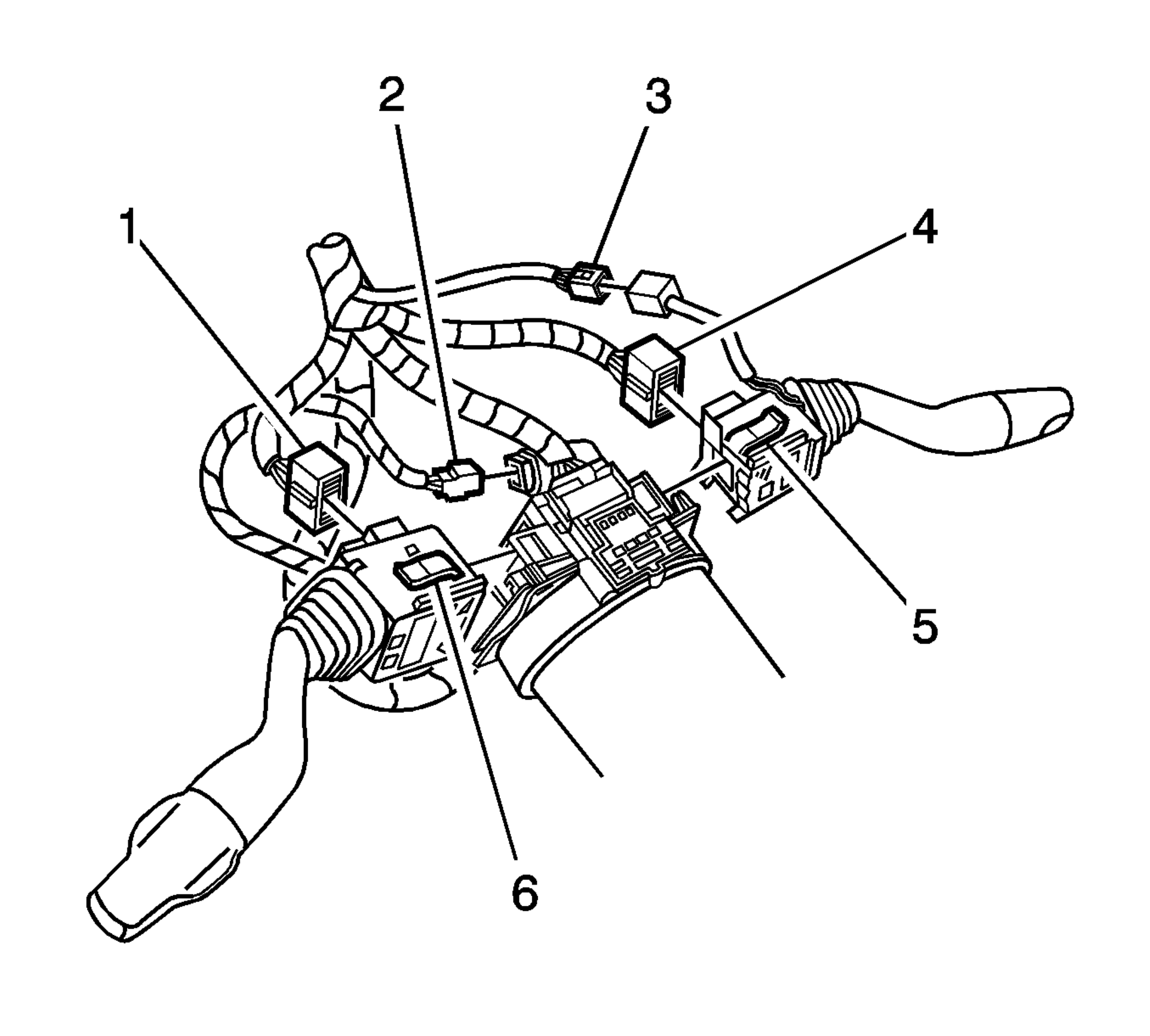

    Fig 1: Multifunction & Turn Signal Switch Assembly
    GM1413337Courtesy of GENERAL MOTORS CORP.
  1. Connect the turn signal switch connector (1).
  2. Connect the cruise control switch connector (2).
  3. Install the turn signal switch to the steering column.
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement  .
  5. Install the lighting fusible link to the engine compartment fuse block.
