Component Locator
Component Locator

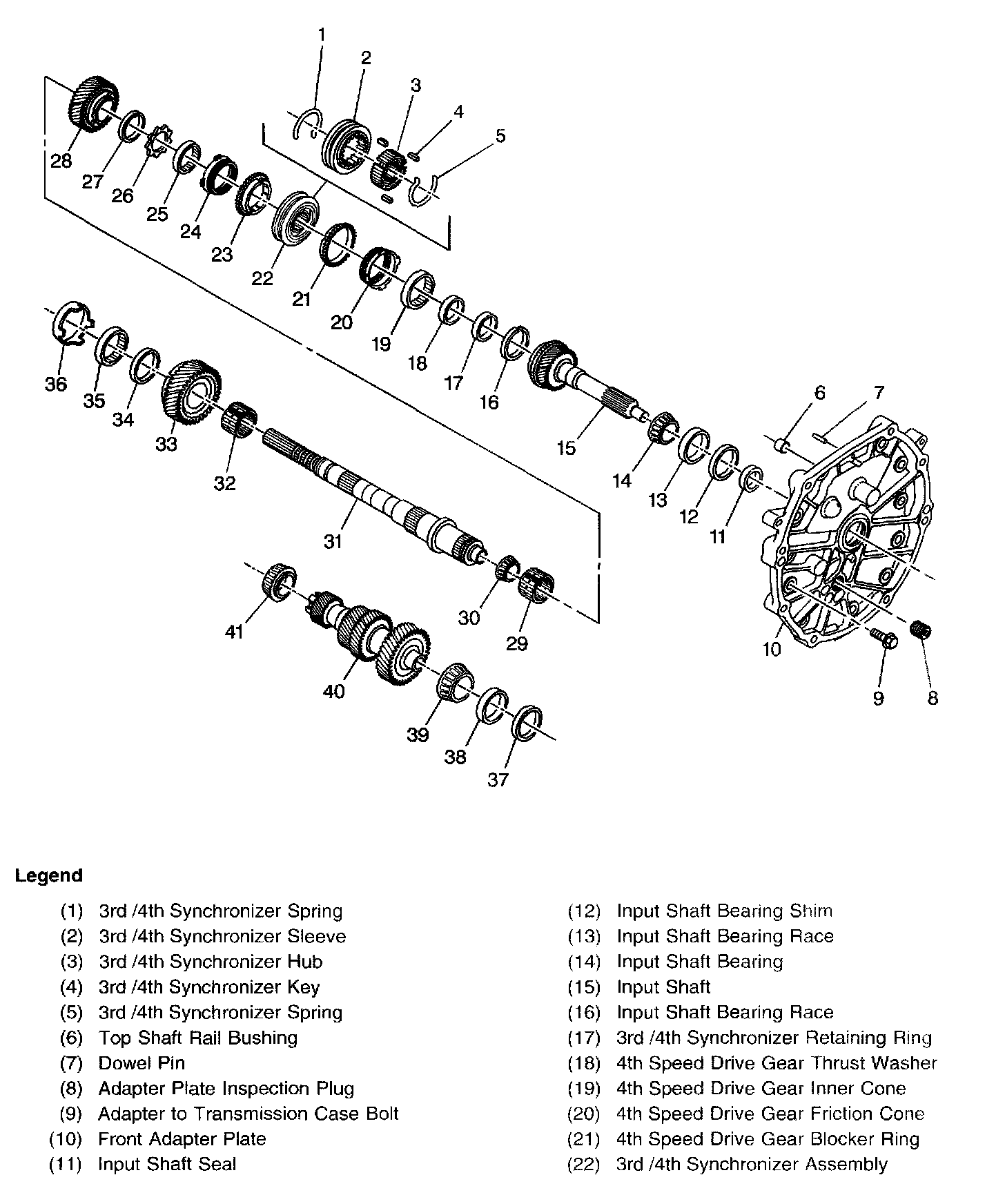

Adapter Plate and Gears

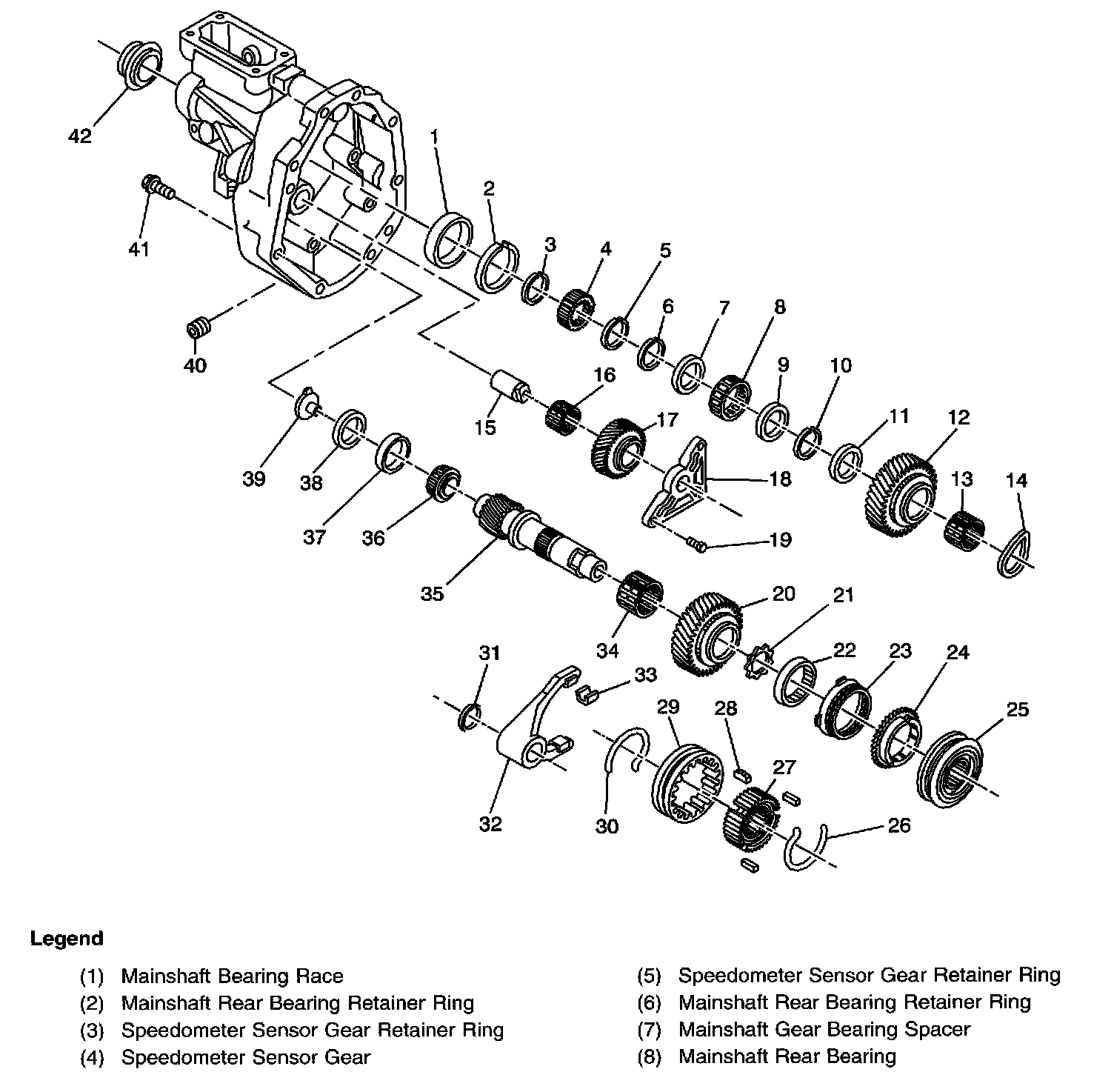

Extension Housing

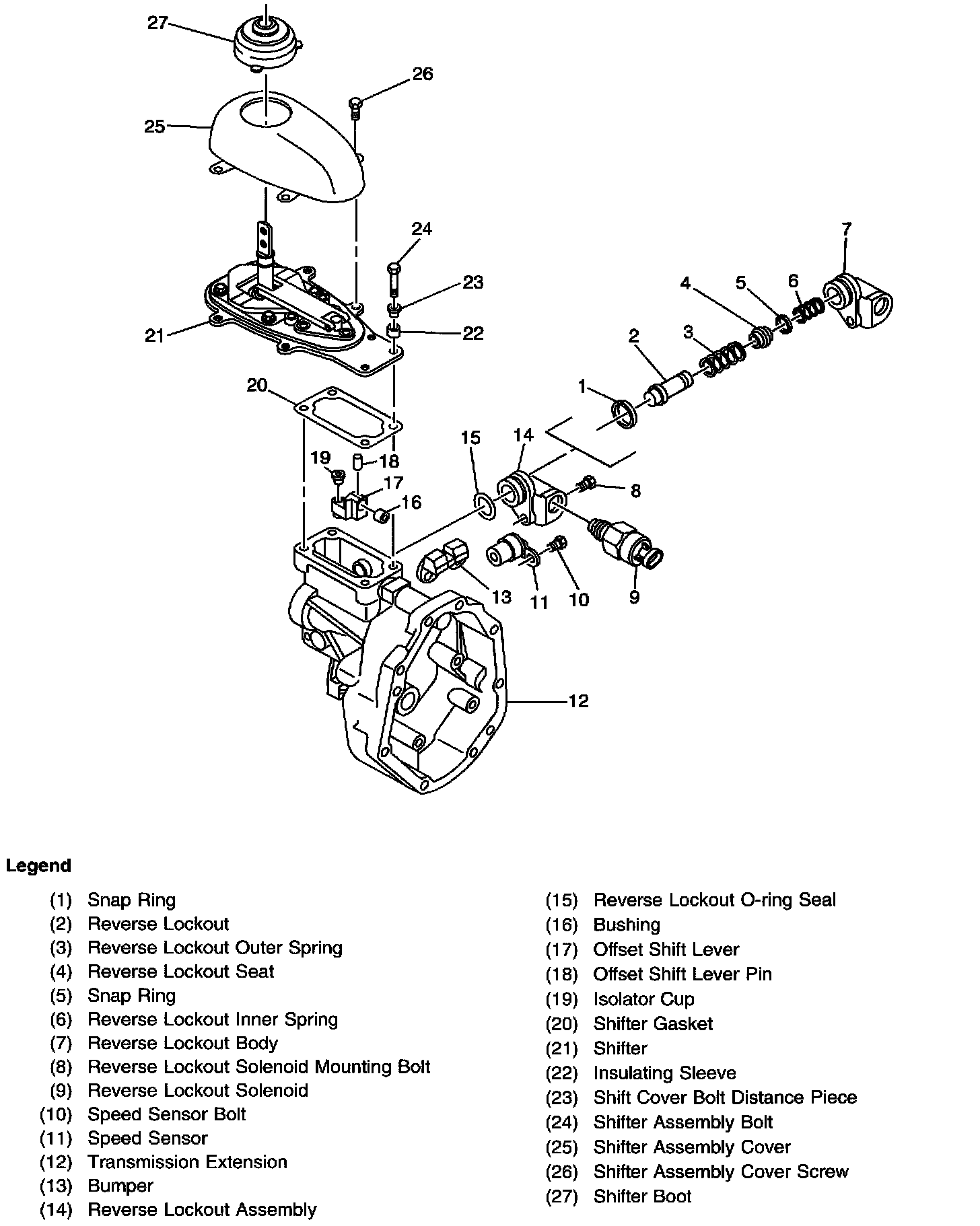

Reverse Lockout

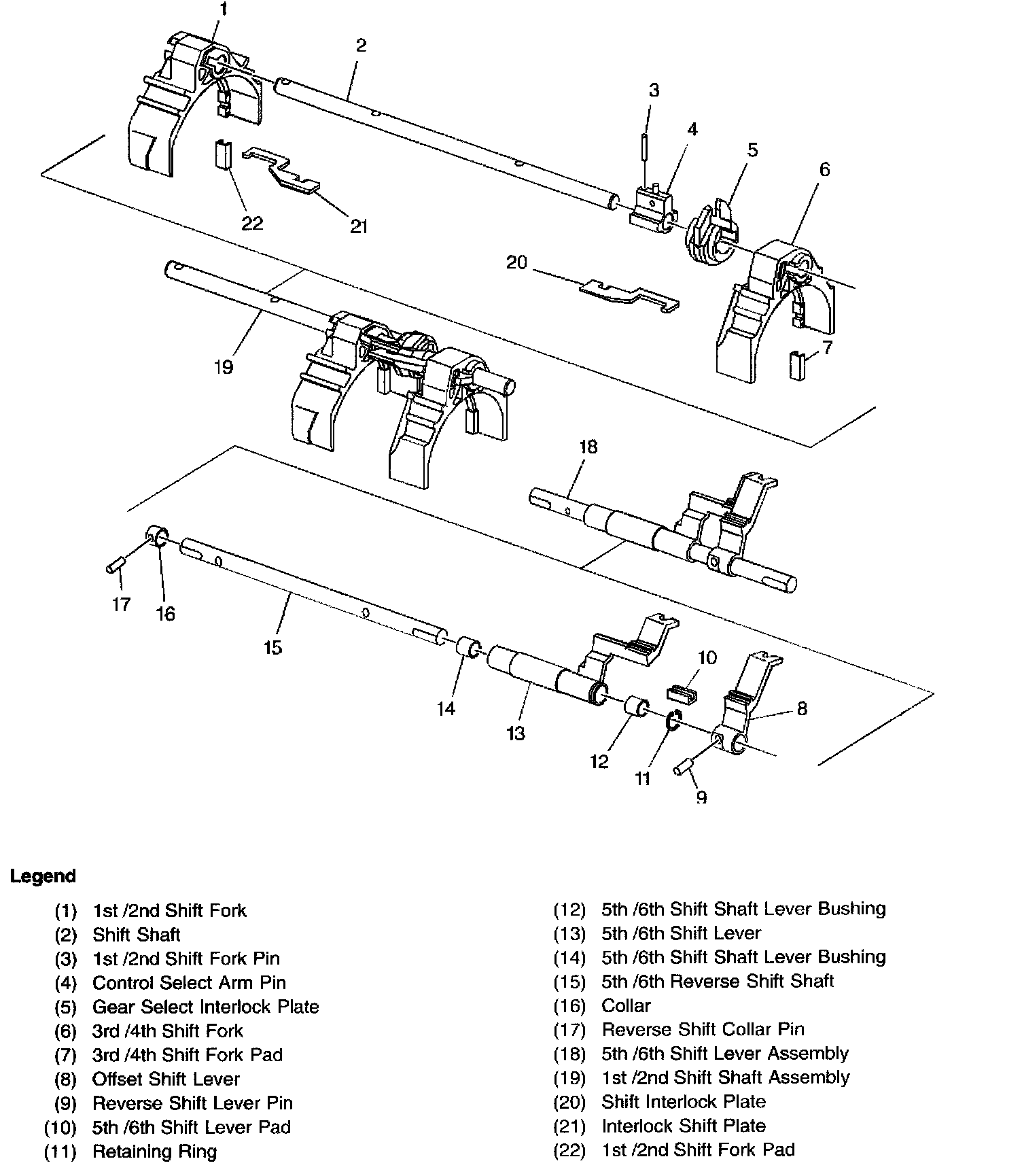

Shift Shafts
