Connector Views

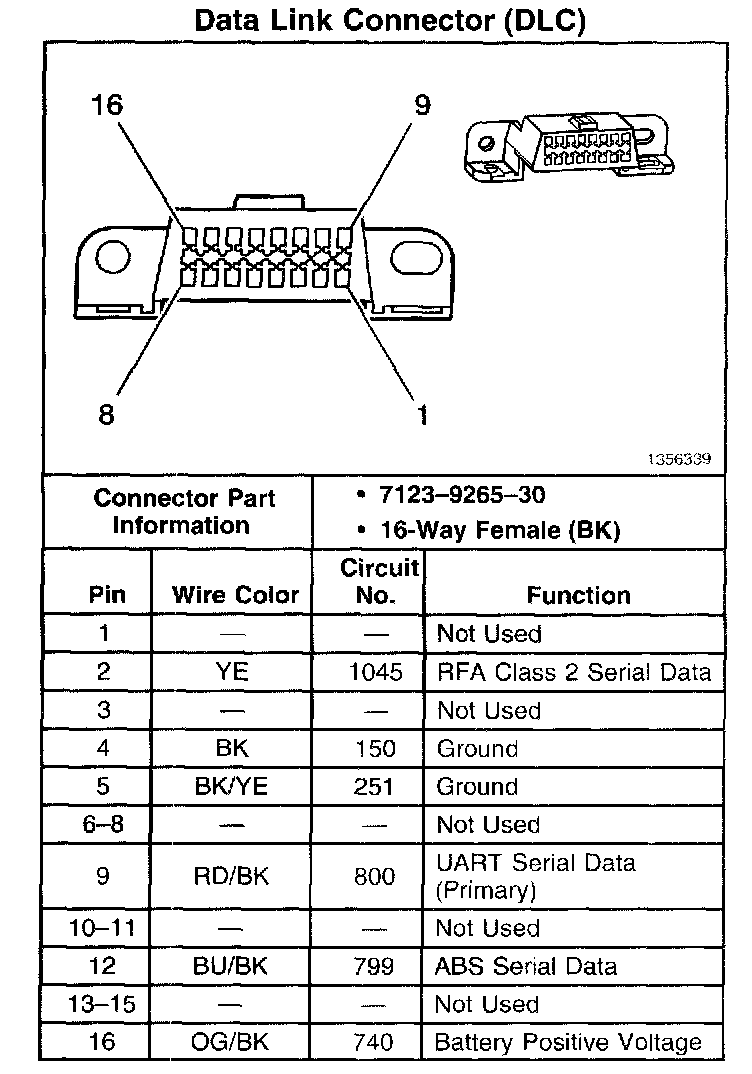

Data Link Connector (DLC):

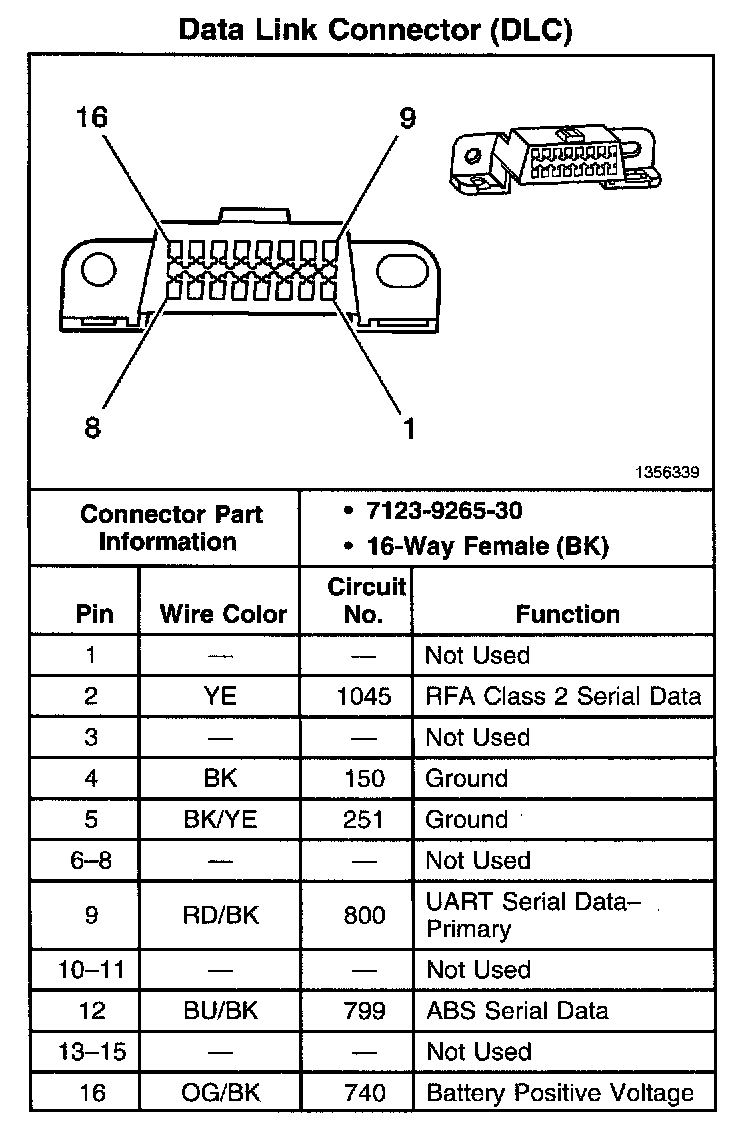

Data Link Connector (DLC):
Powertrain Interface Module (PIM):

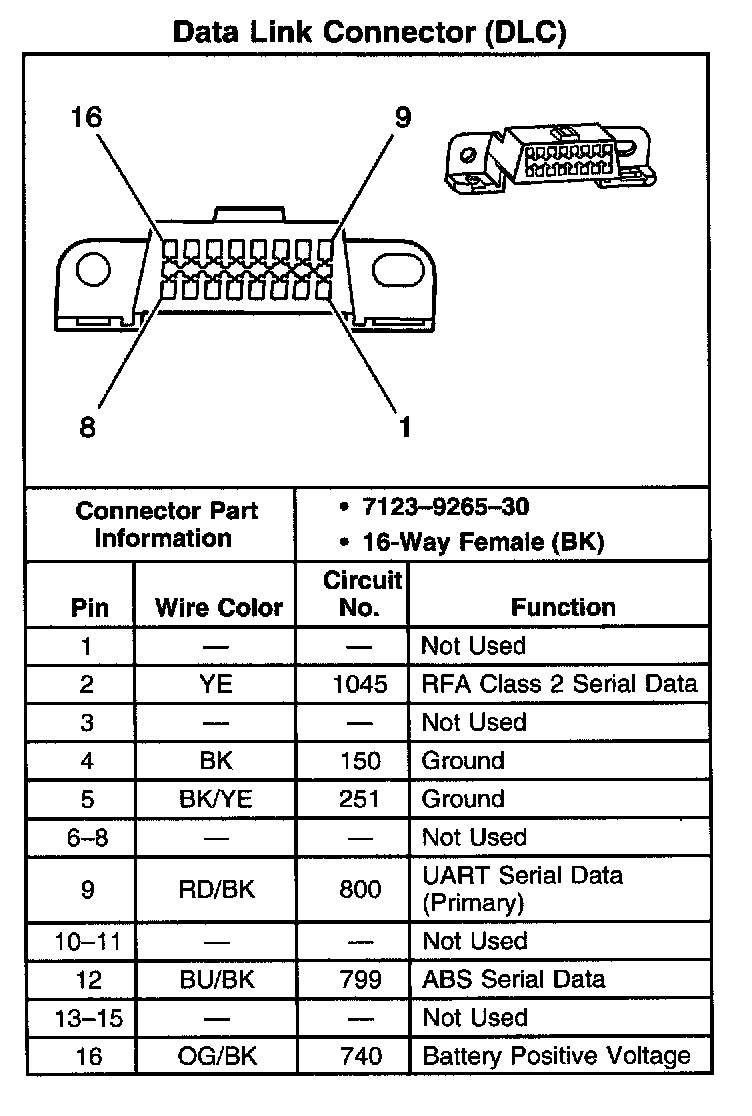

Data Link Connector:
