Connector Locations

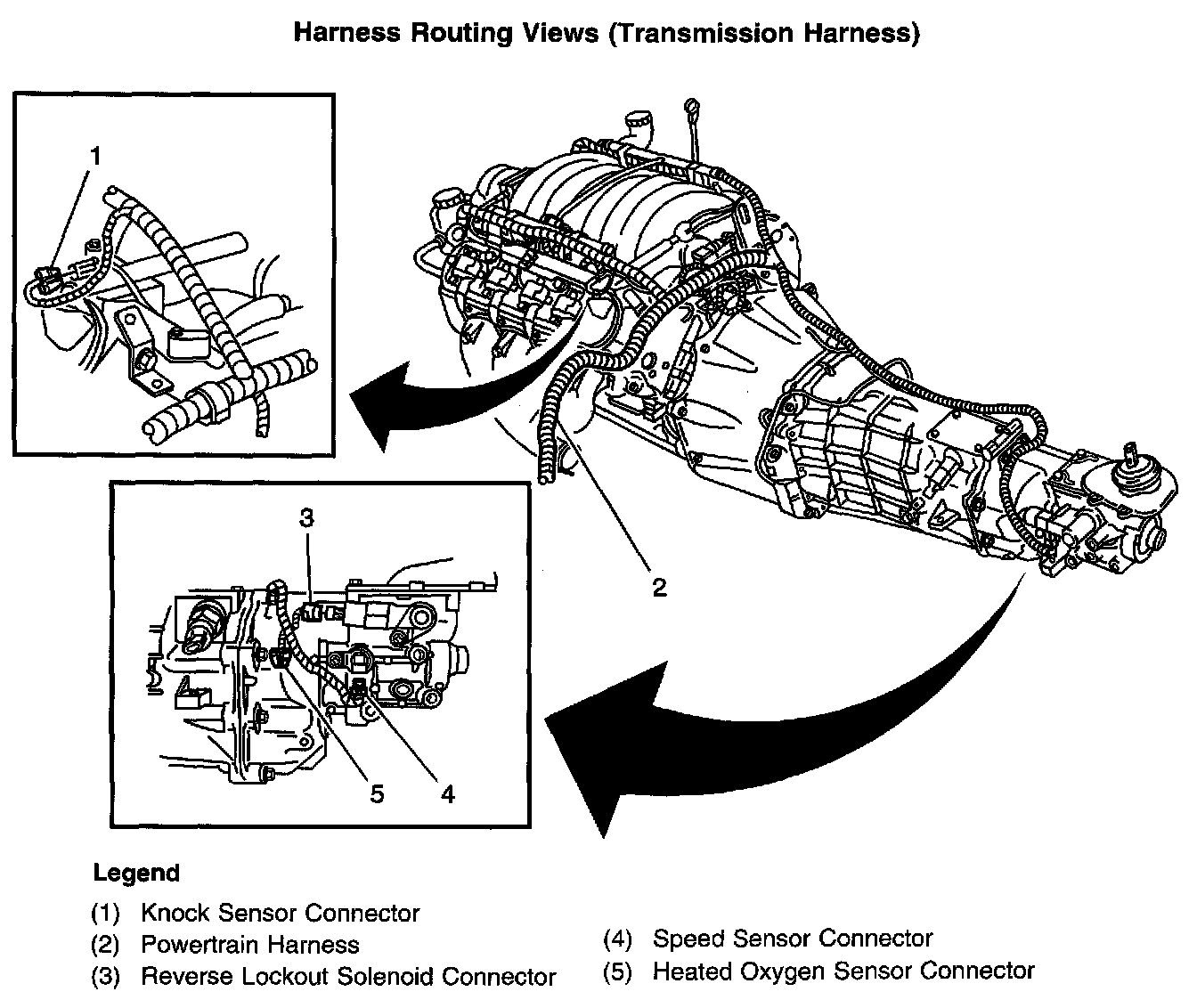

Harness Routing Views (Transmission Harness):

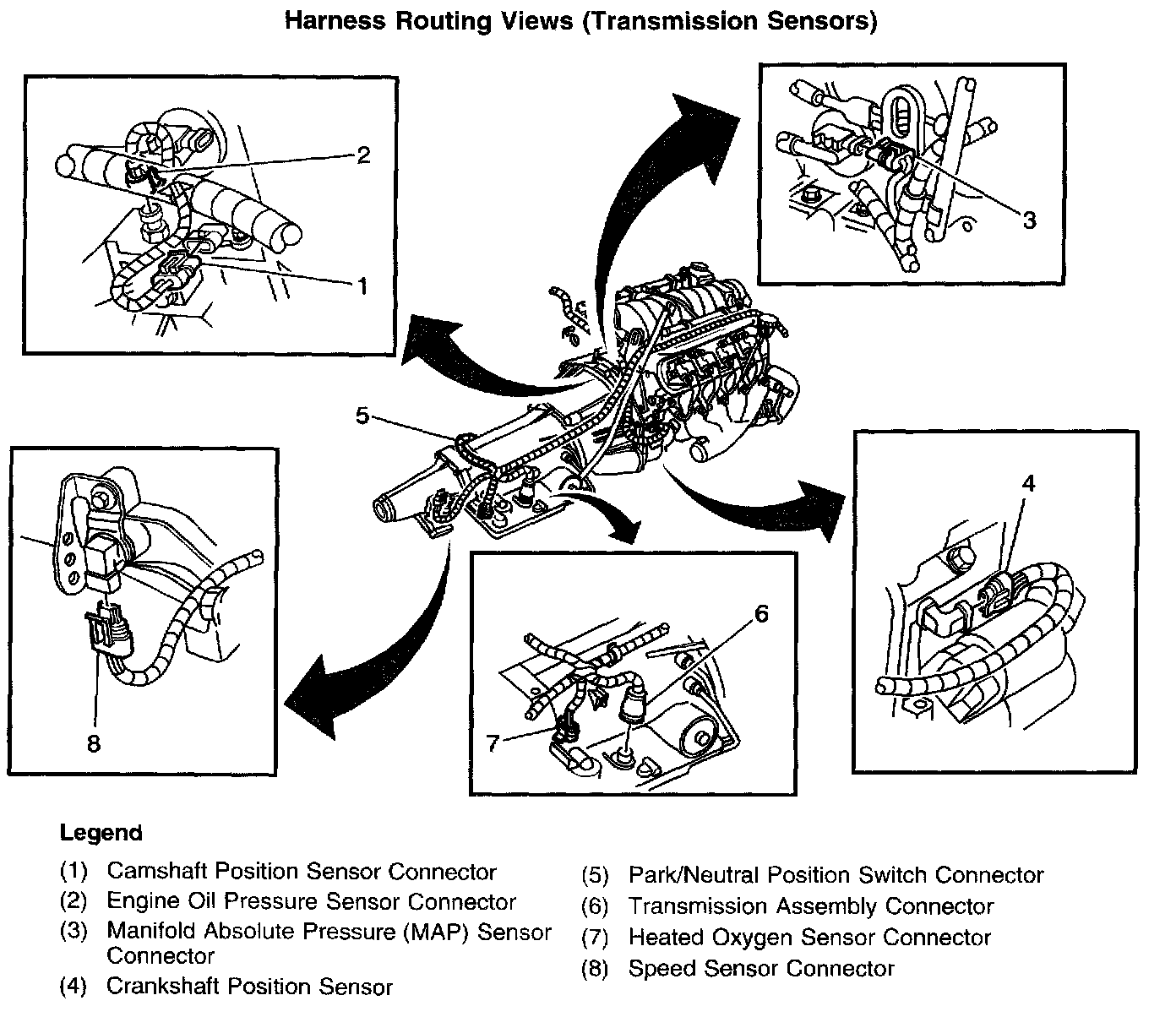

Harness Routing Views (Transmission Sensors):

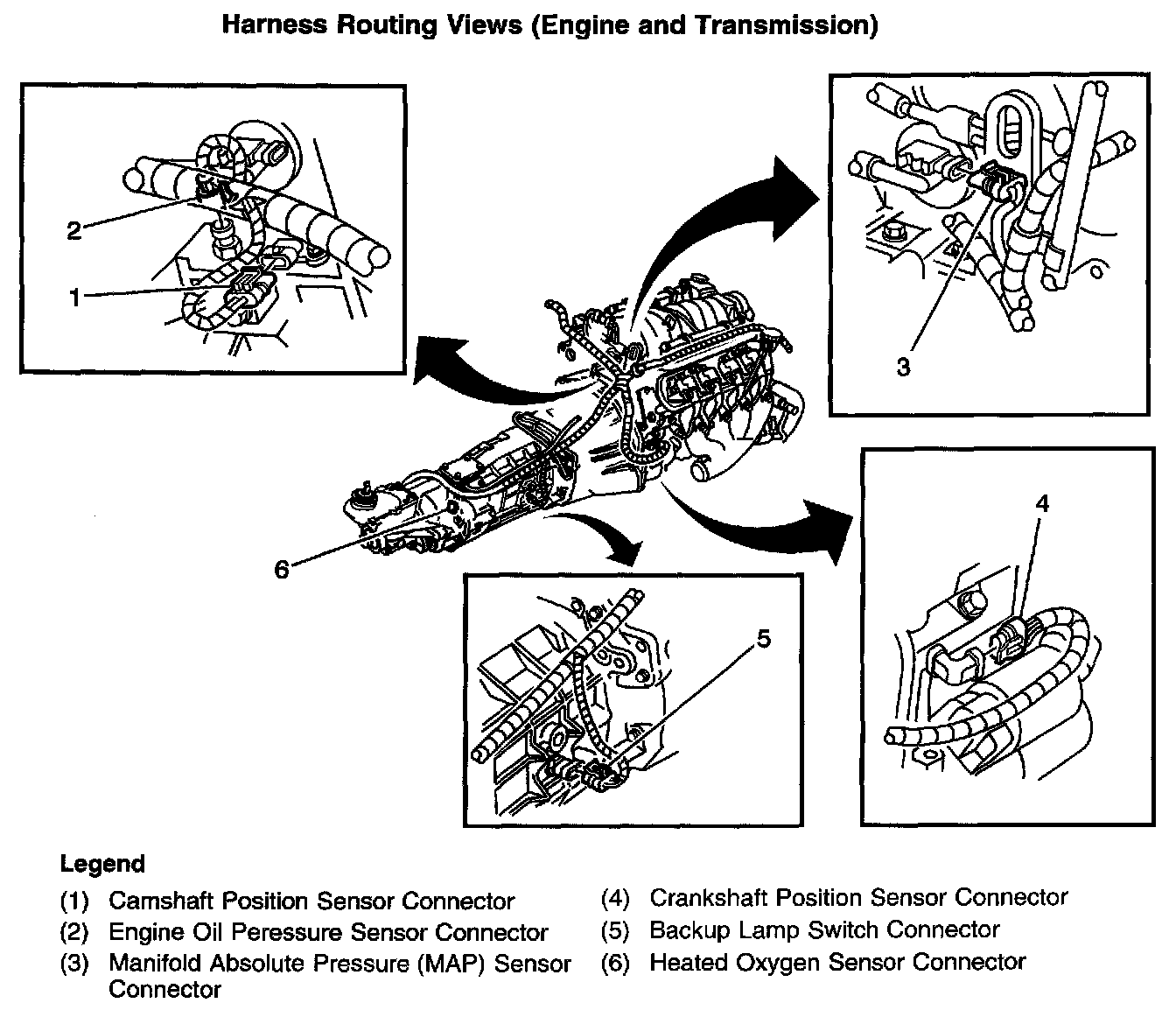

Harness Routing Views (Engine And Transmission):

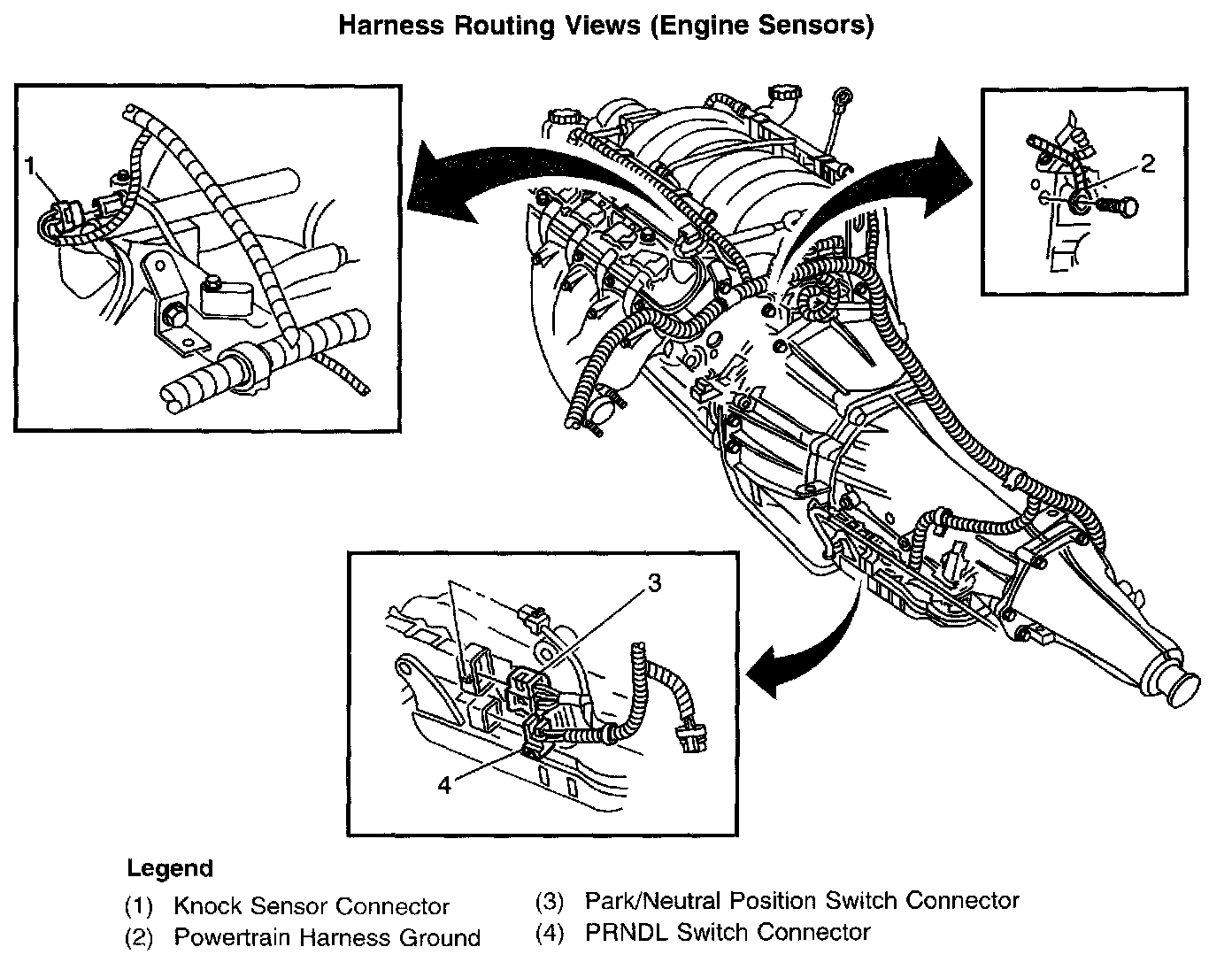

Harness Routing Views (Engine Sensors):
