Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor Replacement

Removal Procedure

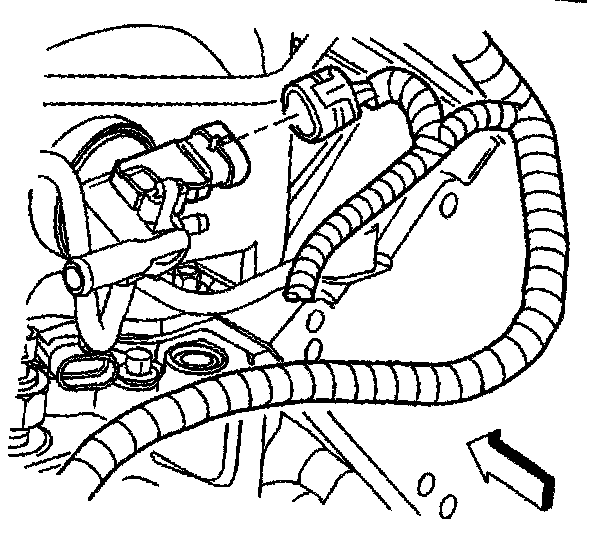

Disconnect the MAP sensor electrical Connector.

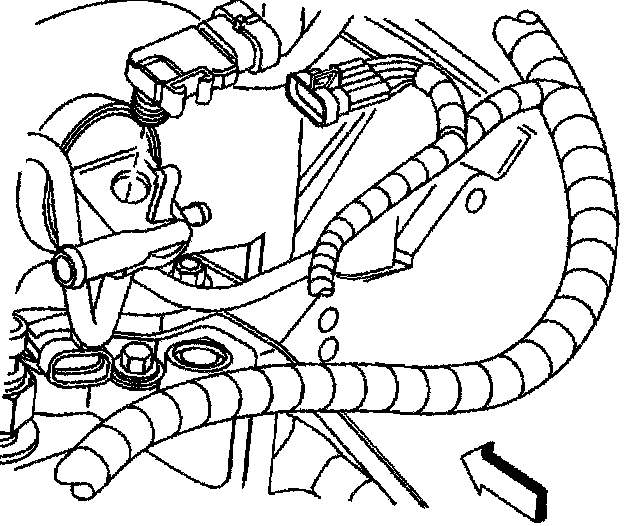

2. Twist the MAP sensor forward in order to release the sensor from the retainer.

3. Pull the sensor upward.





Installation Procedure

Important: Before You install the MAP sensor seal with Clean engine oil.

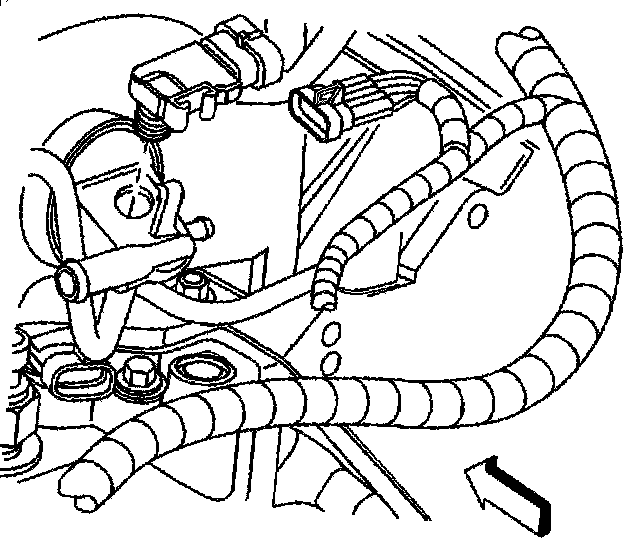

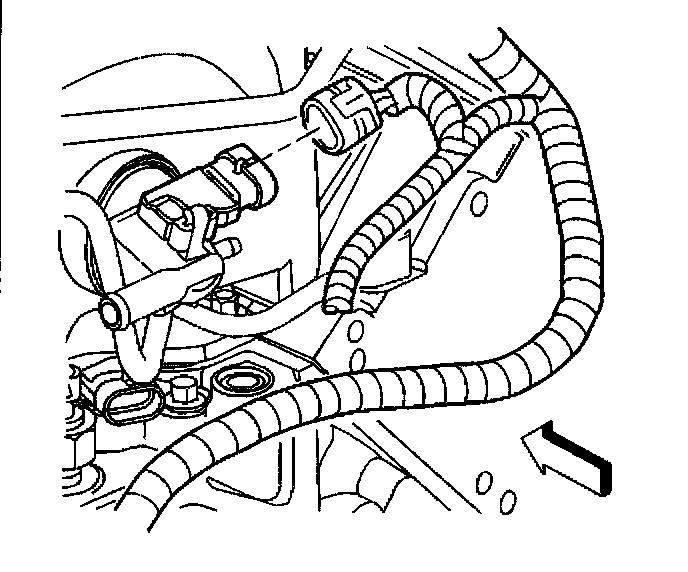

1. Install the MAP sensor. Push the MAP sensor down in order to engage the sensor into the retainer.
