Steering Column

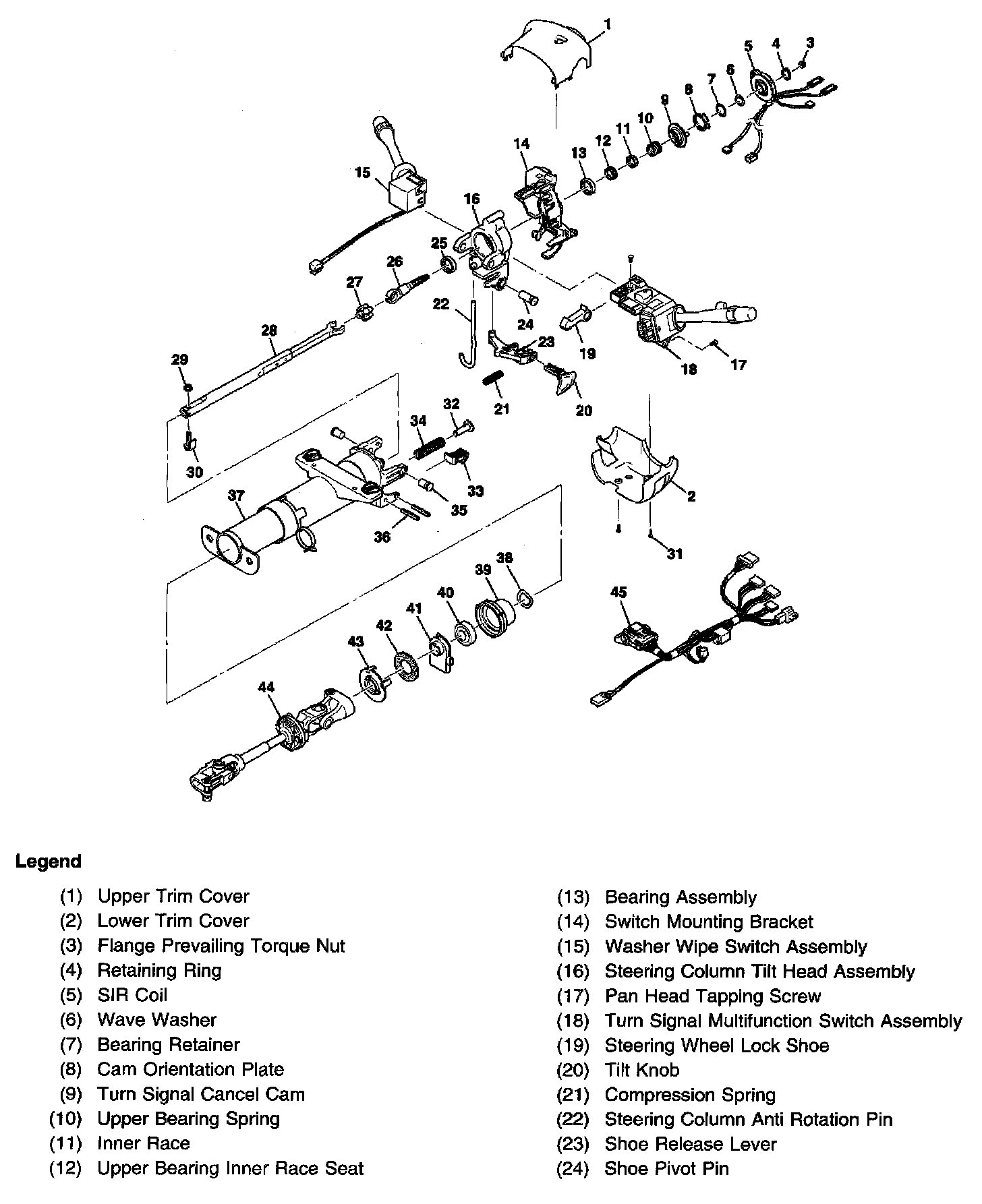

Steering Column Disassembled View (Part 1 Of 2):



Steering Column Disassembled View (Part 2 Of 2):
