Impact Sensor

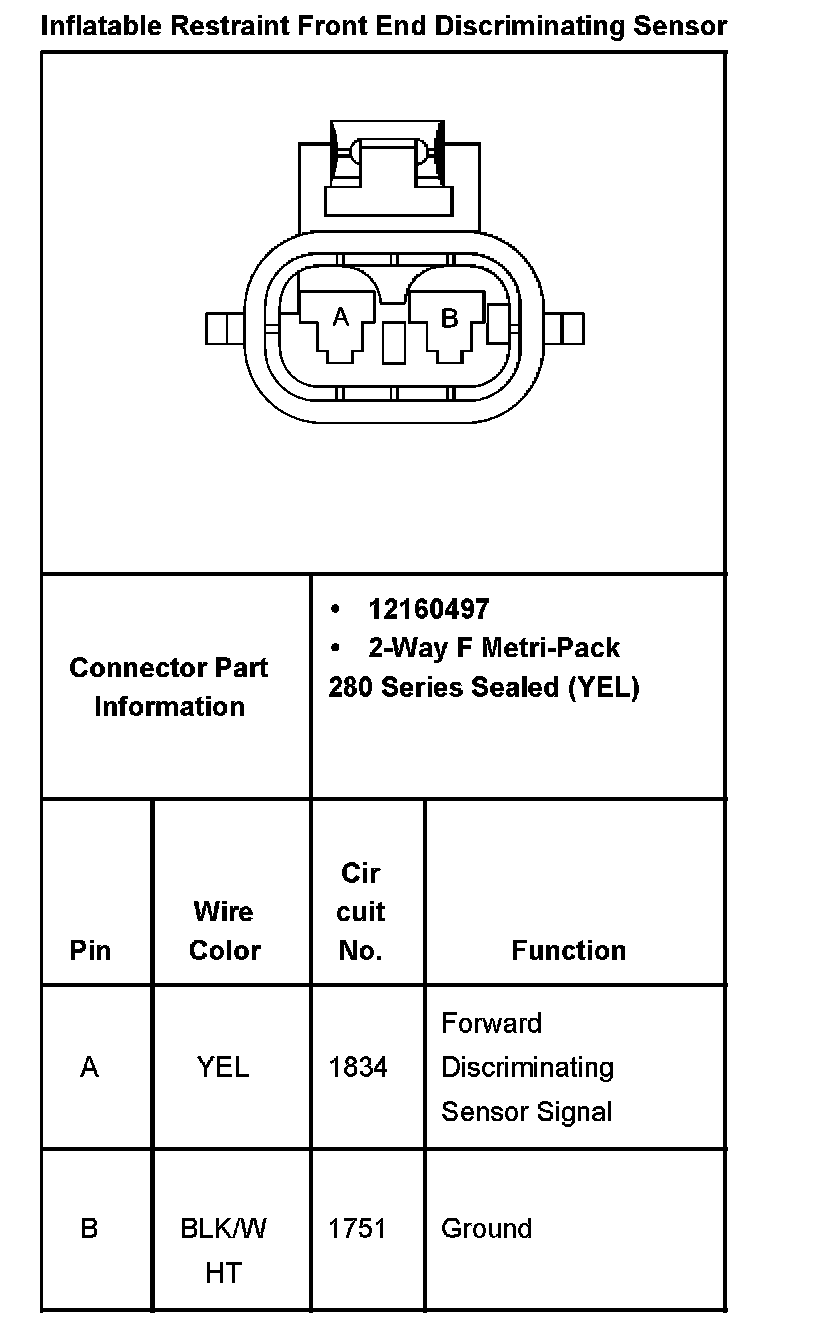

Inflatable Restraint Front End Discriminating Sensor:

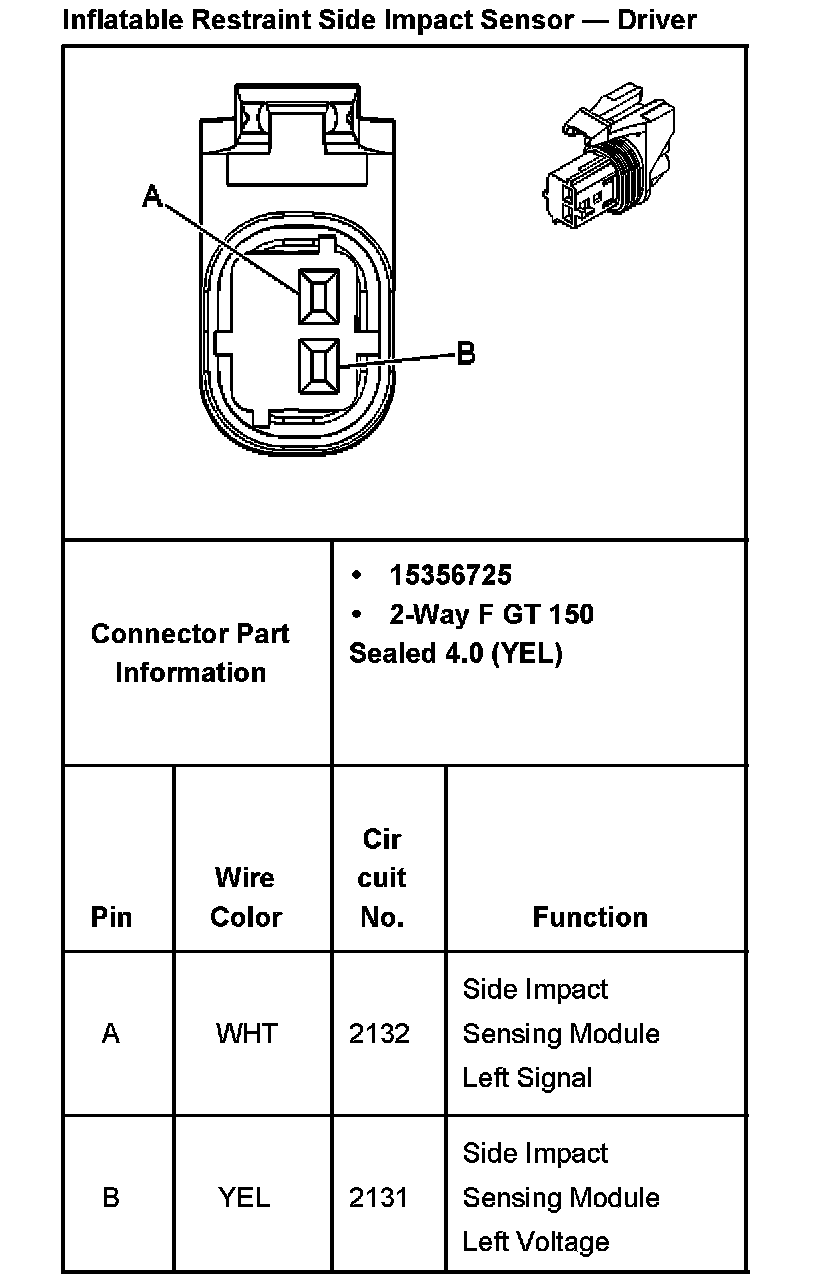

Inflatable Restraint Side Impact Sensor - Driver:

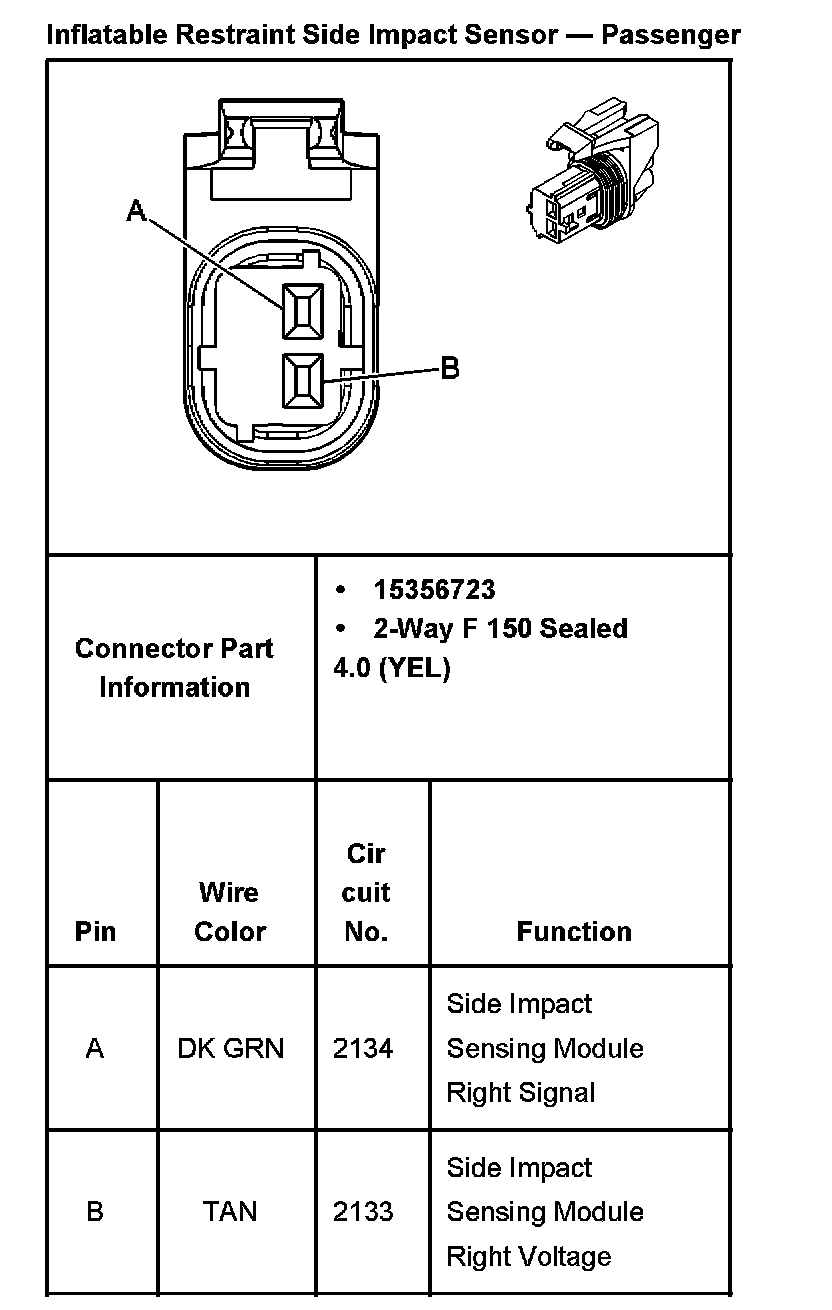

Inflatable Restraint Side Impact Sensor - Passenger:
