Manual Transmission/Transaxle

Transmission Component Location

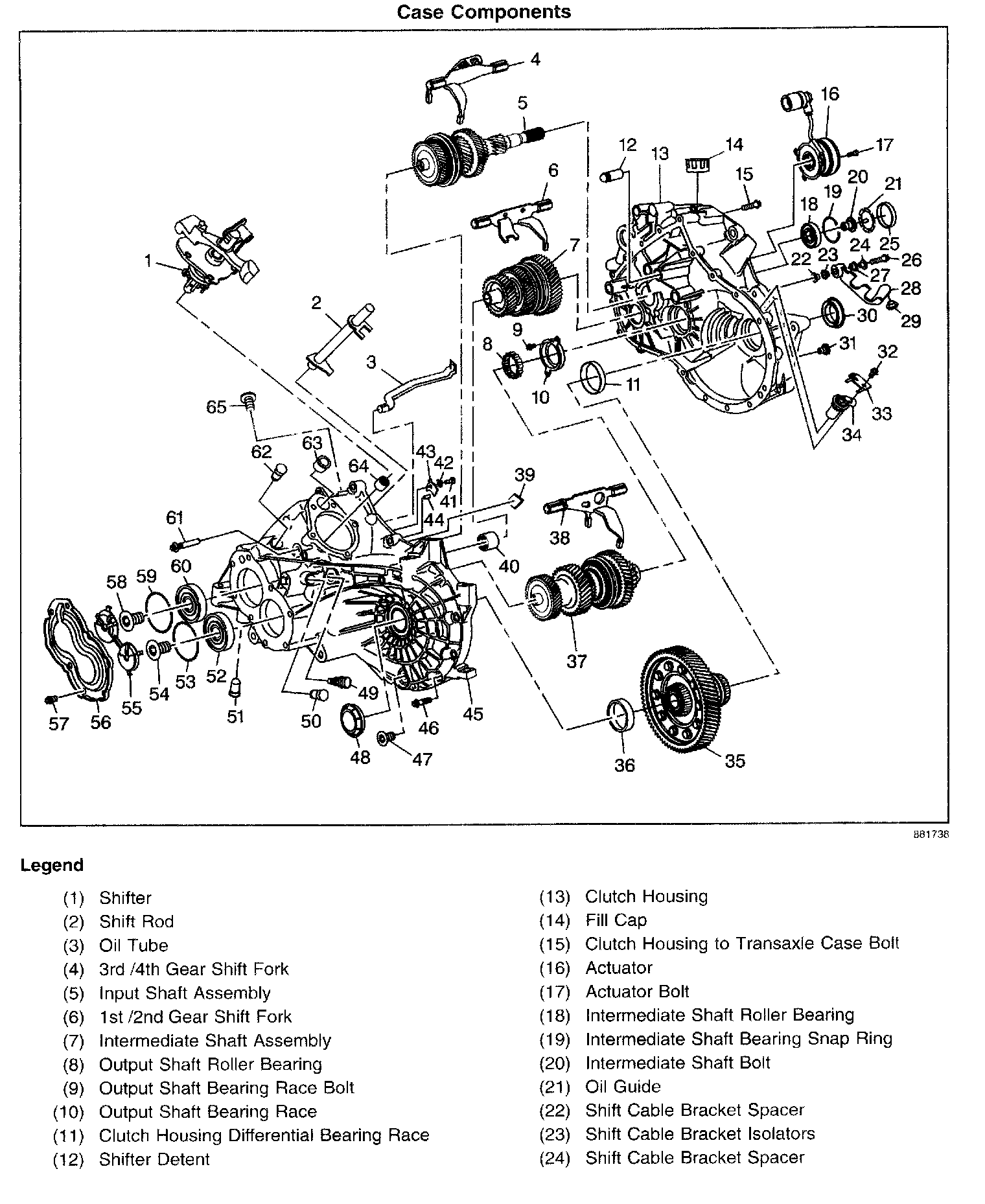

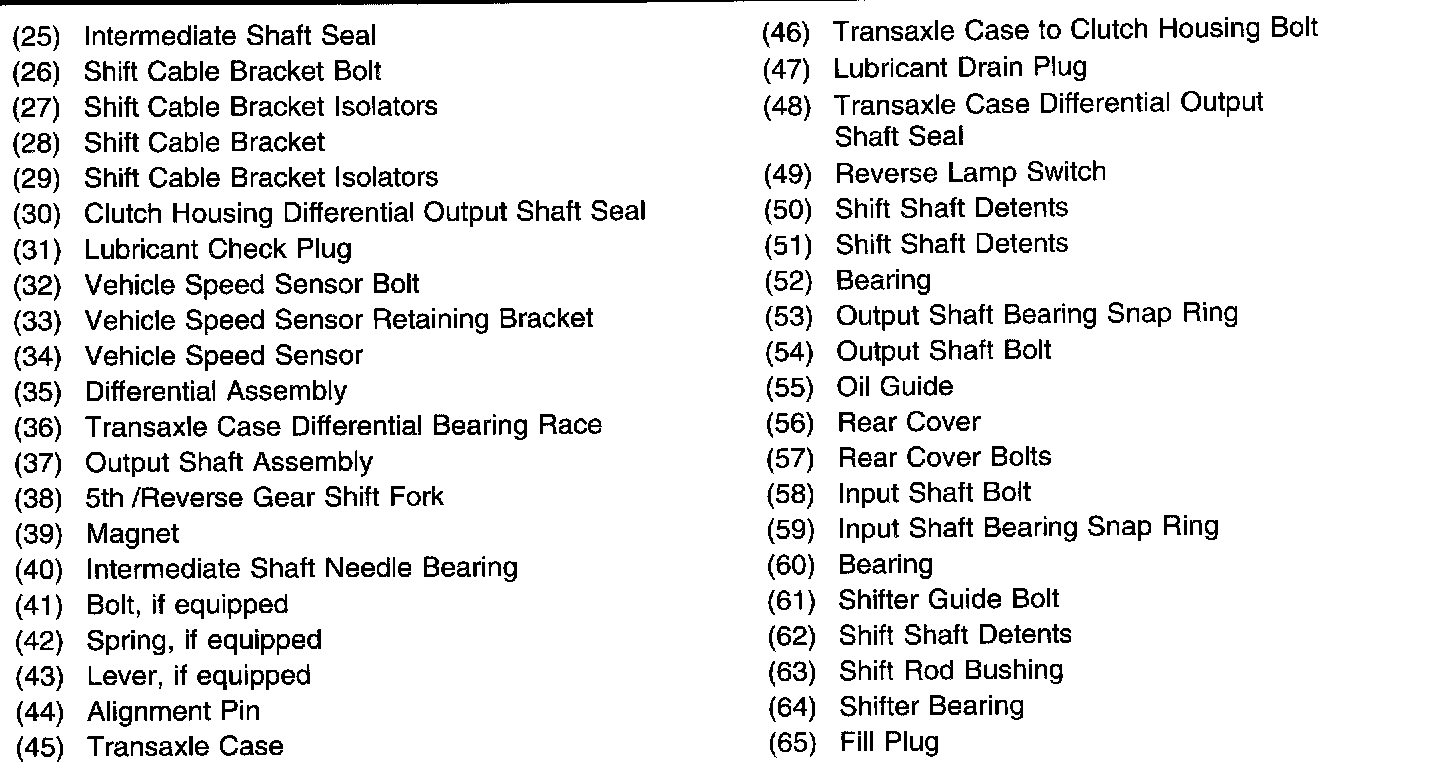

Case Components

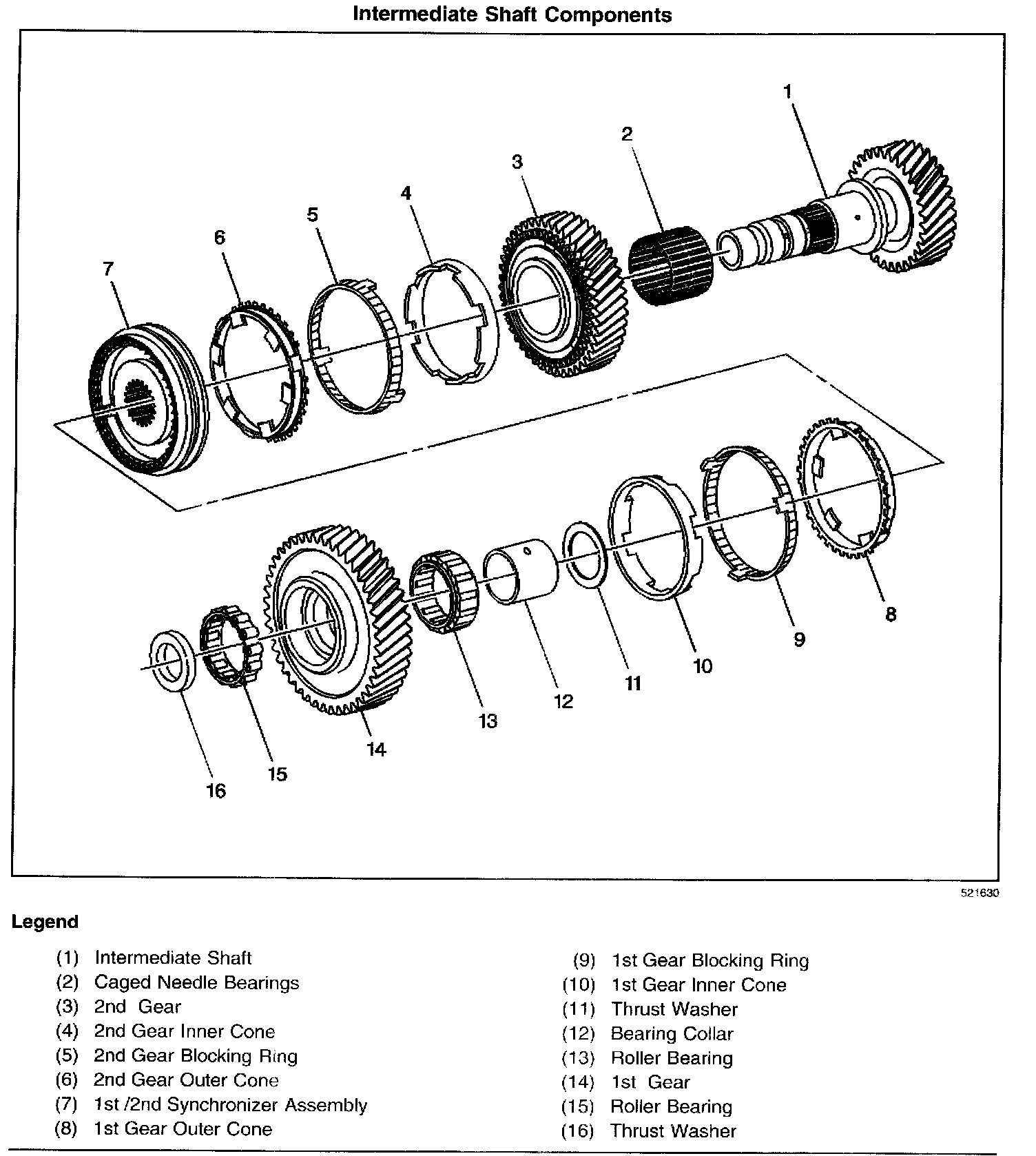

Intermediate Shaft Components

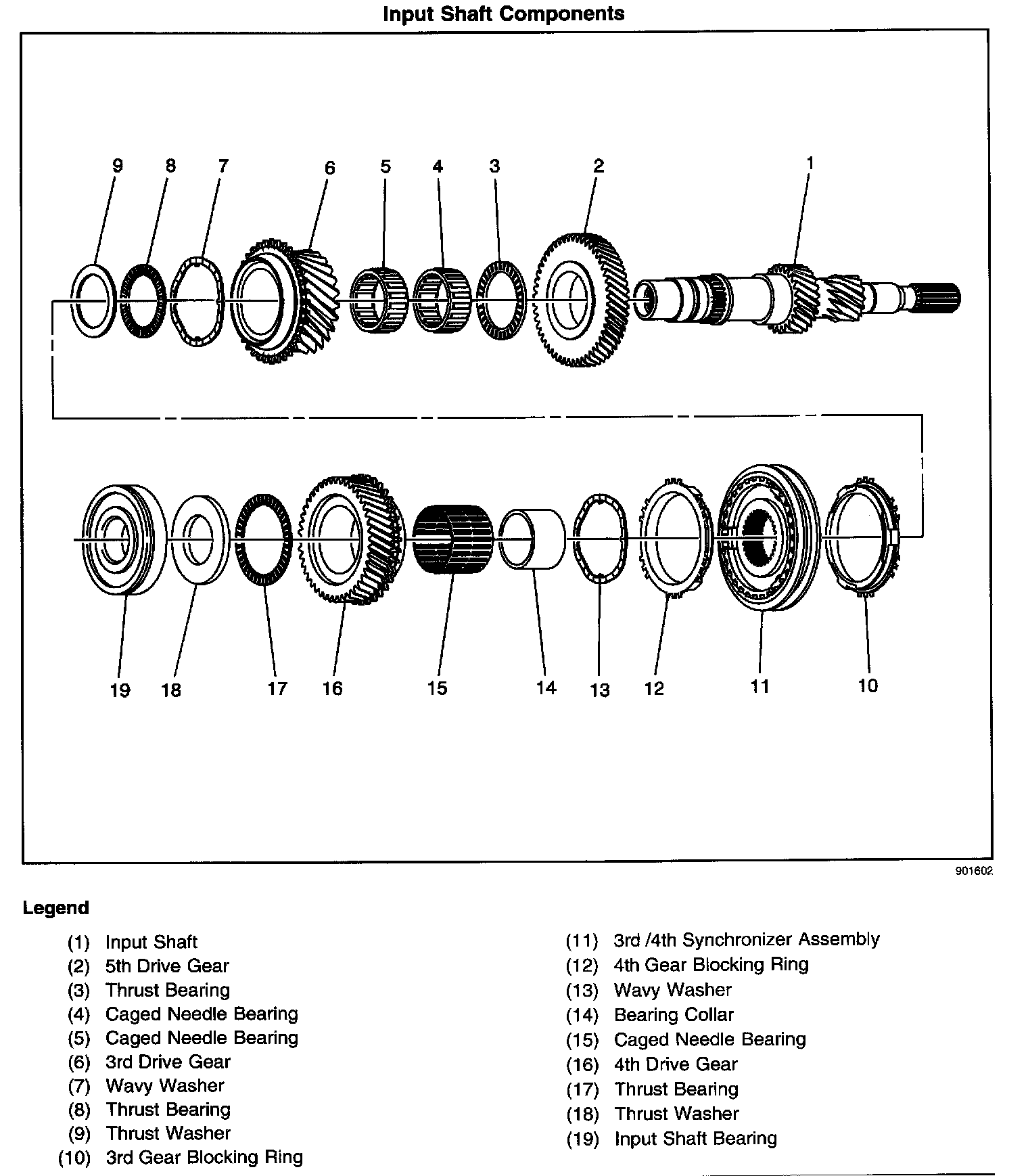

Input Shaft Components

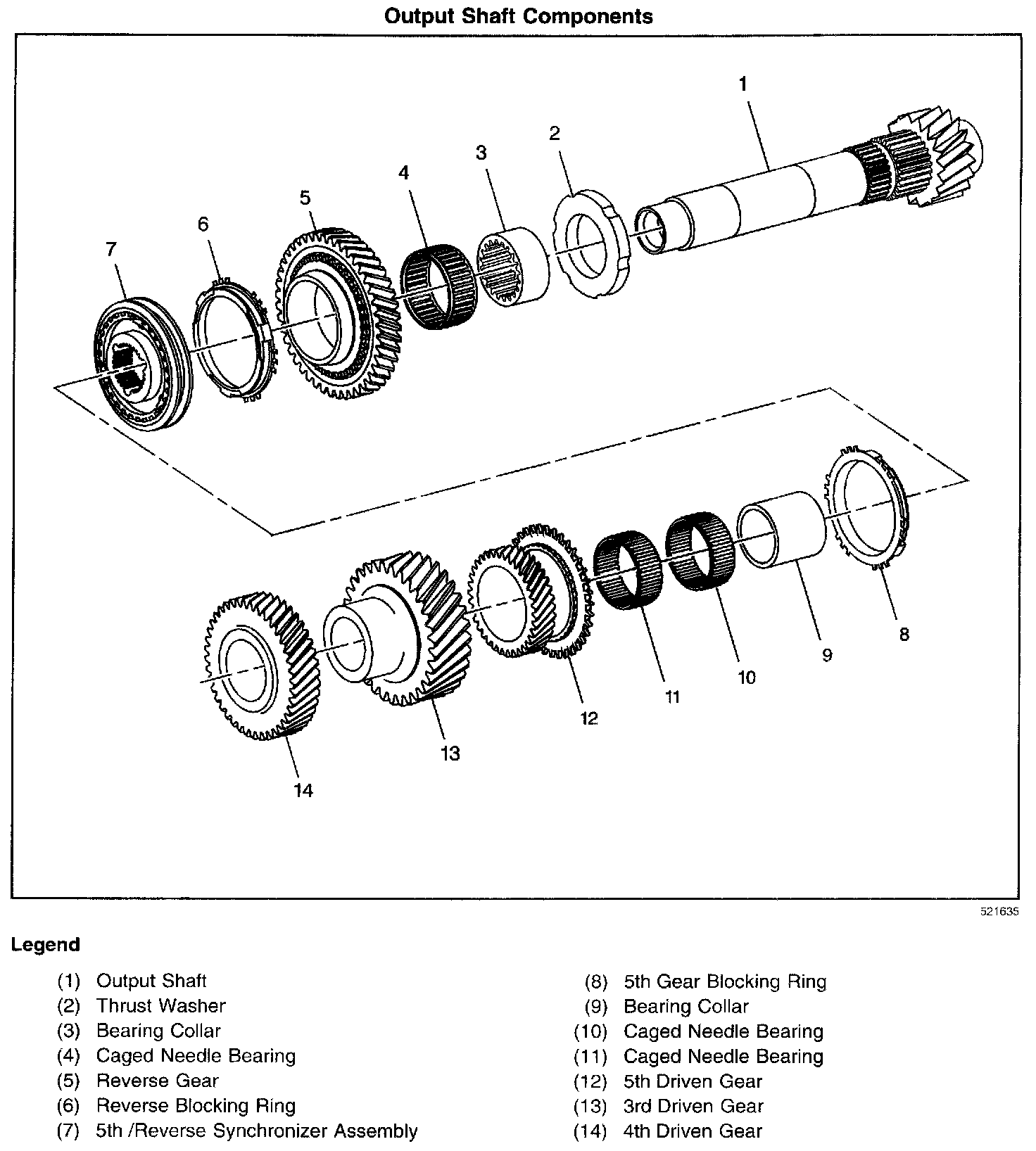

Output Shaft Components

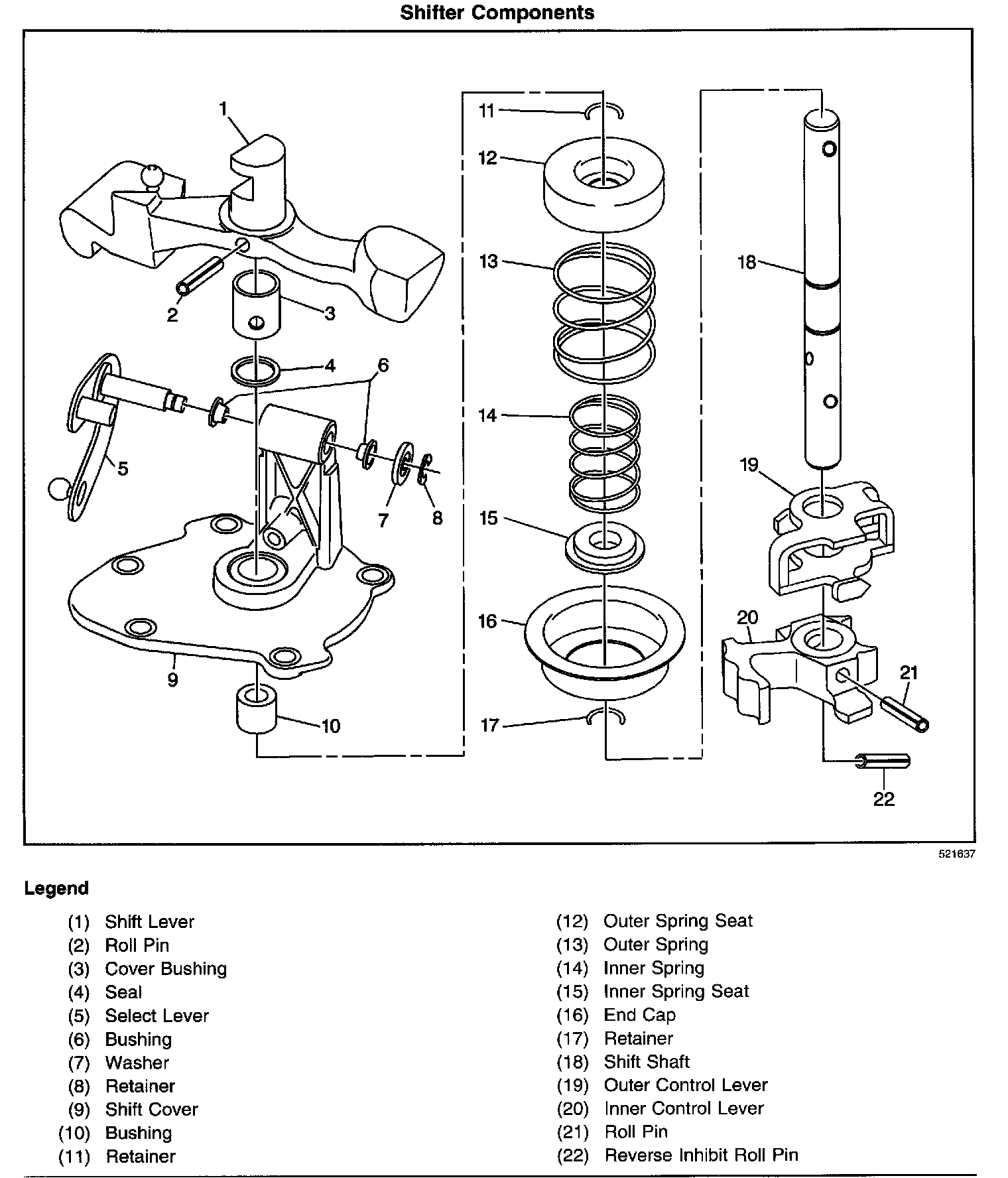

Shifter Components

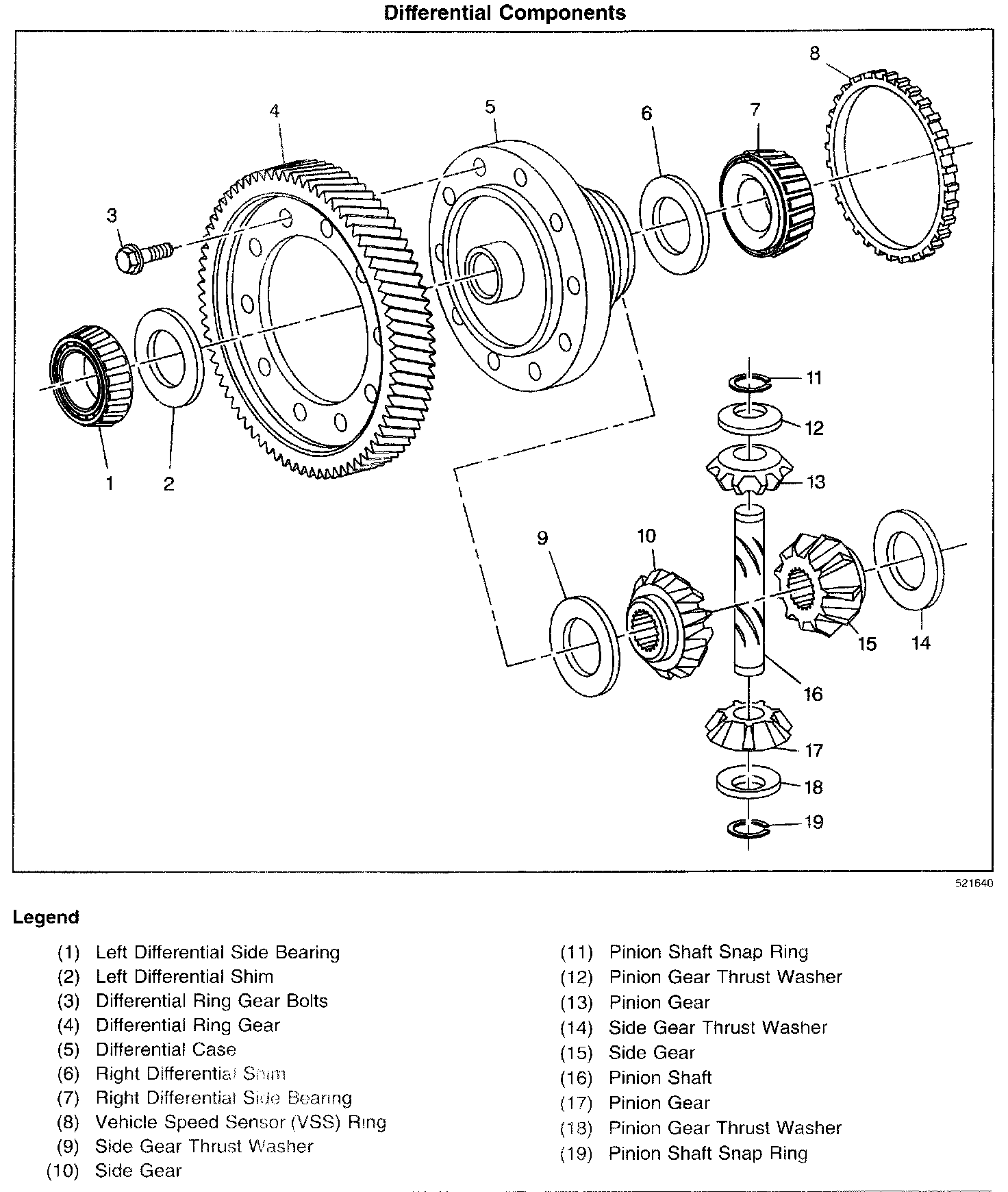

Differential Components
