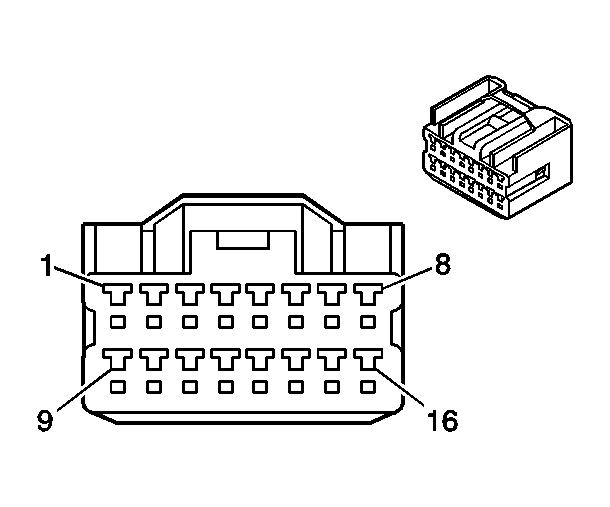

Cruise Control Module Connector End View
Cruise Control Module Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | - | Not Used |
| 2 | BK/WH | Cruise Control Module Feed Circuit |
| 3 | GN/WH | Brake Signal |
| 4 | BU | PNP Switch Signal |
| 5 | GN/RD | Cruise Indicator Control |
| 6 | BU | Cruise Interrupt Signal |
| 7 | RD/BU | Servo Control |
| 8 | GN/OR | Magnetic Clutch Control |
| 9 | - | Not Used |
| 10 | PK/BK | Serial Data |
| 11 | GN/YE | Cruise On-Off Signal |
| 12 | PU/WH | VSS Input |
| 13 | BU/WH | Idle Signal |
| 14 | RD/YE | Overdrive Signal |
| 15 | RD/GR | Servo Control |
| 16 | WH/BK | Ground |
