SIR Driver Inflatable Module Connector End View C2

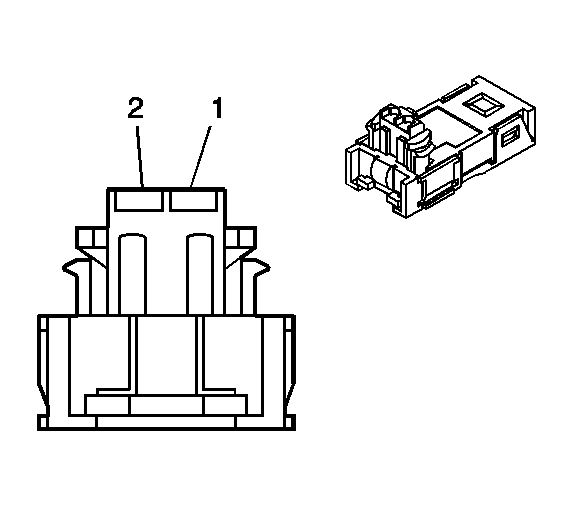

SIR Driver Inflatable Module Connector End View C2
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
90980-12138
BLK
Pin
Wire Color
Function
1
YEL/BLK
Driver Side High
2
YEL/PPL
Driver Side Low
Courtesy of GENERAL MOTORS CORP.
