SIR Instrument Panel Module Connector End View

SIR Instrument Panel Module Connector End View

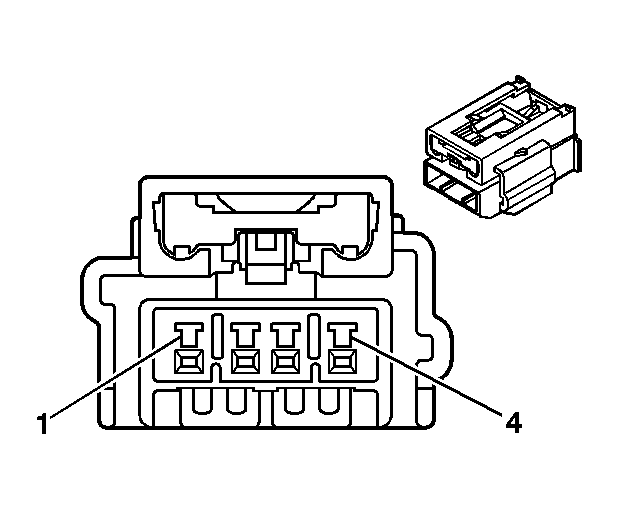

GM820245Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12160
  • YEL
Pin Wire Color Function
1 YEL/RED Passenger Side High
2 YEL/GRN Passenger Side Low
3 YEL/GRY Redundant Passenger Side High
4 YEL/PNK Redundant Passenger Side Low
