SIR Left Front Discriminating Sensor Connector End View

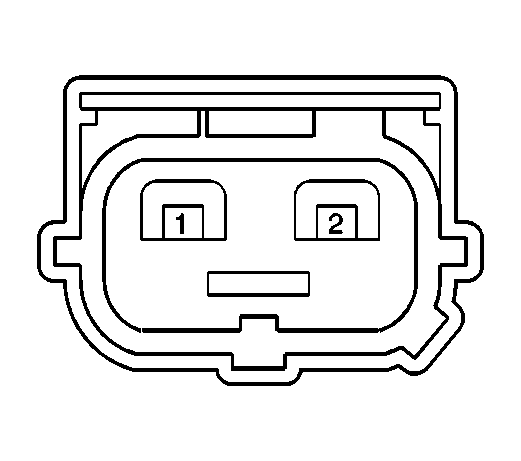

SIR Left Front Discriminating Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
90980-11898
YEL
Pin
Wire Color
Function
1
BRN
Driver Sensor Low
2
WHT/RED
Driver Sensor High
Courtesy of GENERAL MOTORS CORP.
