Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

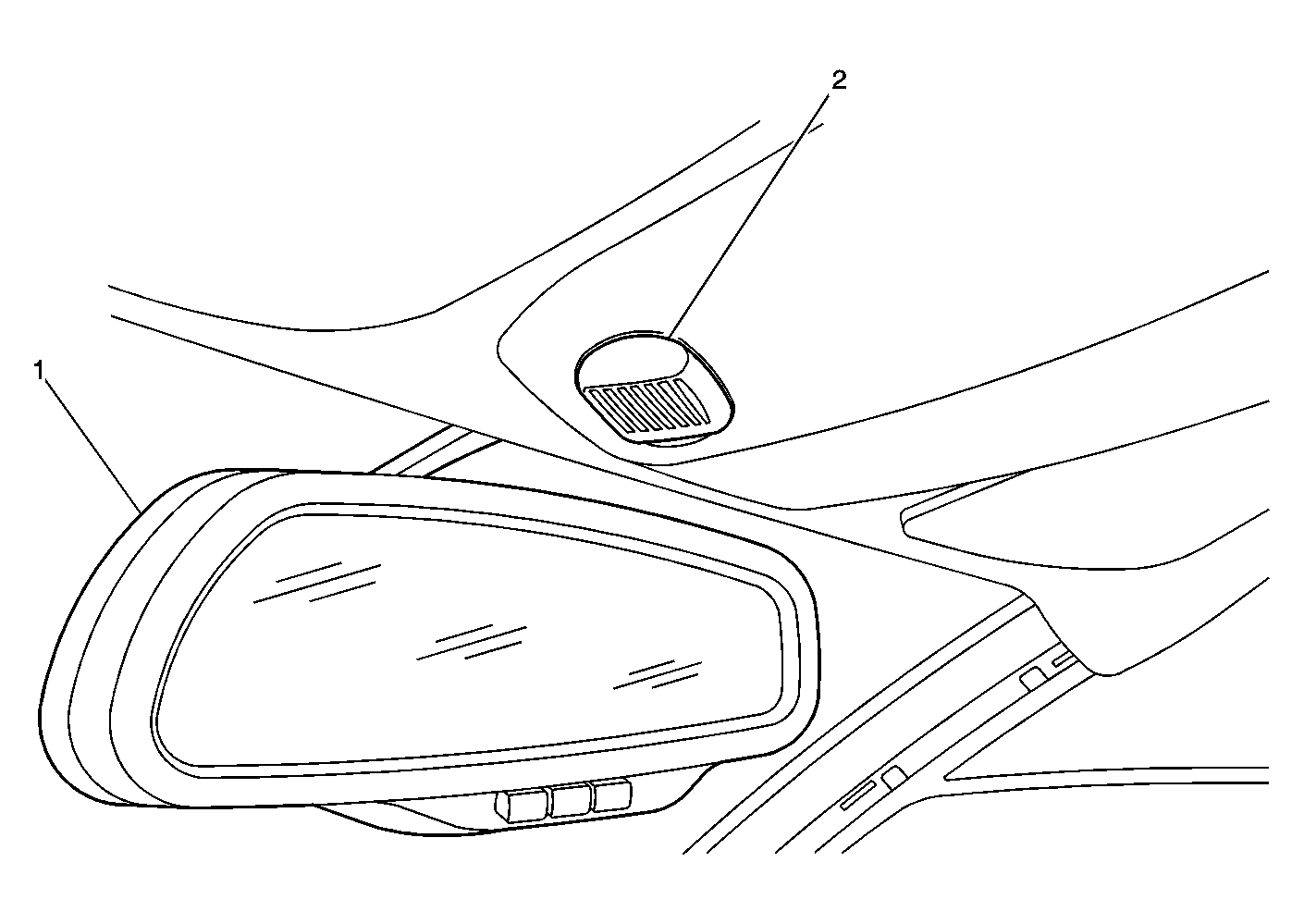

| Callout | Component Name |
|---|---|
| 1 | Inside Rearview Mirror w/UE1 |
| 2 | OnStar Microphone |

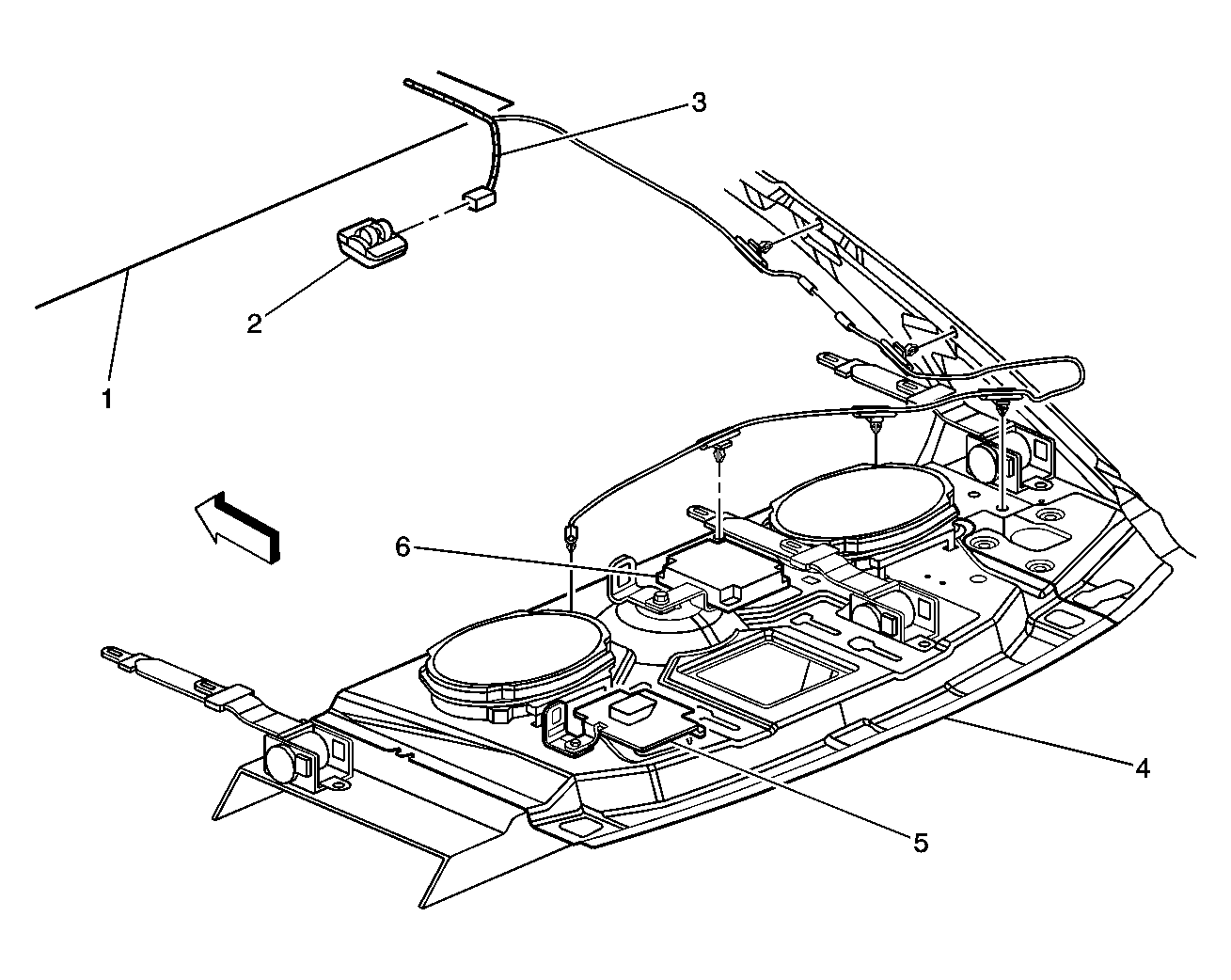

| Callout | Component Name |
|---|---|
| 1 | Headliner |
| 2 | OnStar Cellular Antenna |
| 3 | Headliner Wiring Harness |
| 4 | Shelf Panel |
| 5 | Navigation Antenna |
| 6 | Digital Radio Receiver |

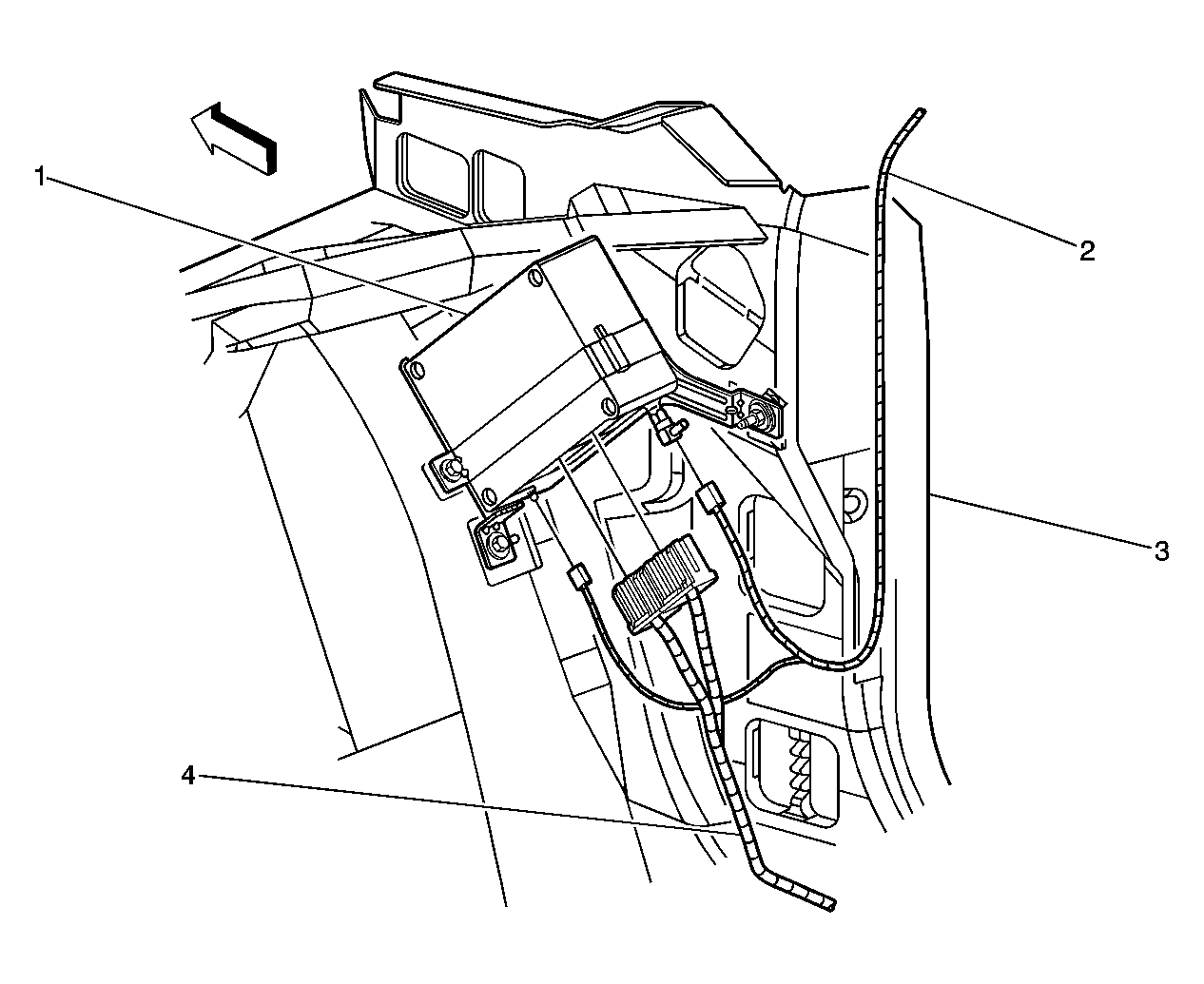

| Callout | Component Name |
|---|---|
| 1 | Vehicle Communication Interface Module (VCIM) |
| 2 | Headliner Harness |
| 3 | Body Hinge Pillar |
| 4 | Body Wiring Harness |
