System Operation

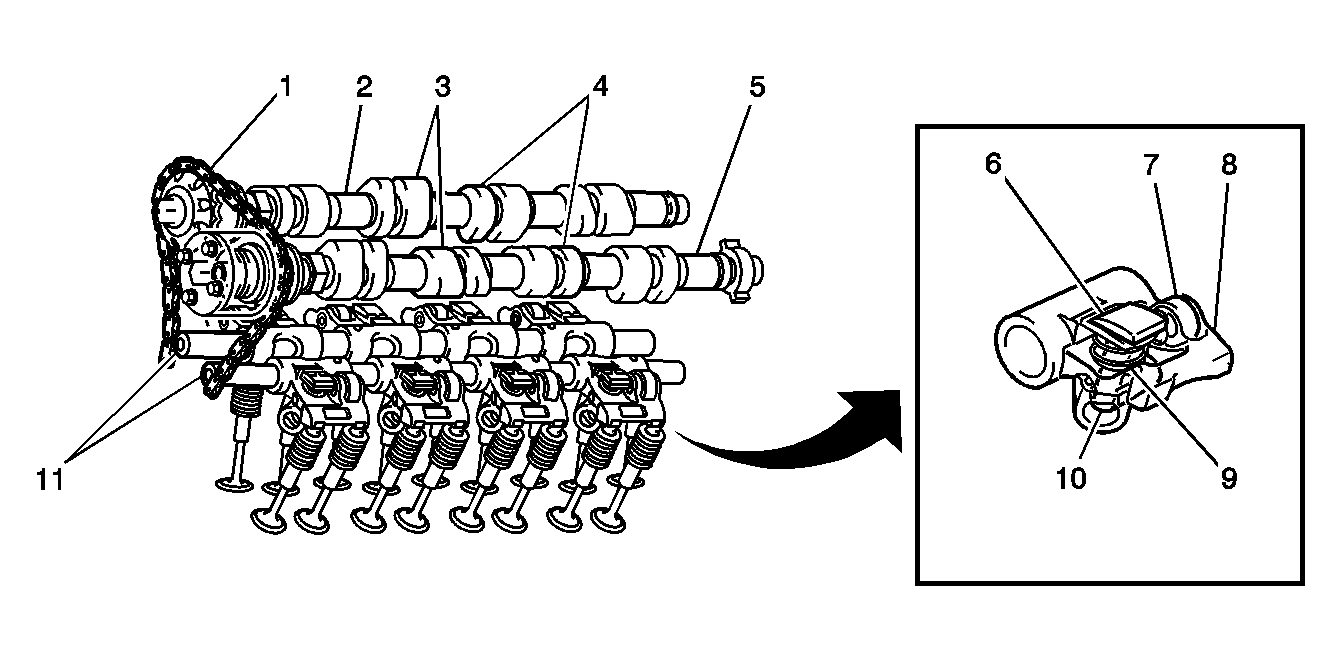

Fig 1: 1.8L RPO - LNK Engine Valve Train Component View

Courtesy of GENERAL MOTORS CORP.

During engine operation below 6,000 RPM, the rocker arms (8) follow the low/medium speed cam lobes (4). When engine oil is allowed to flow unobstructed to the rocker arms, the arms follow the high speed cam lobes (3), increasing valve lift. The flow of engine oil to the rocker arms is controlled by the rocker arm oil control solenoid valve. The solenoid is pulse width modulated (PWM) by the powertrain control module (PCM). The rocker arm oil pressure switch detects oil pressure when the rocker arm oil control solenoid is ON. The oil pressure switch input enables the PCM to monitor the operation of the rocker arm oil control solenoid. The rocker arm oil filter removes dirt and debris from the supply of engine oil to the rocker arm shafts.

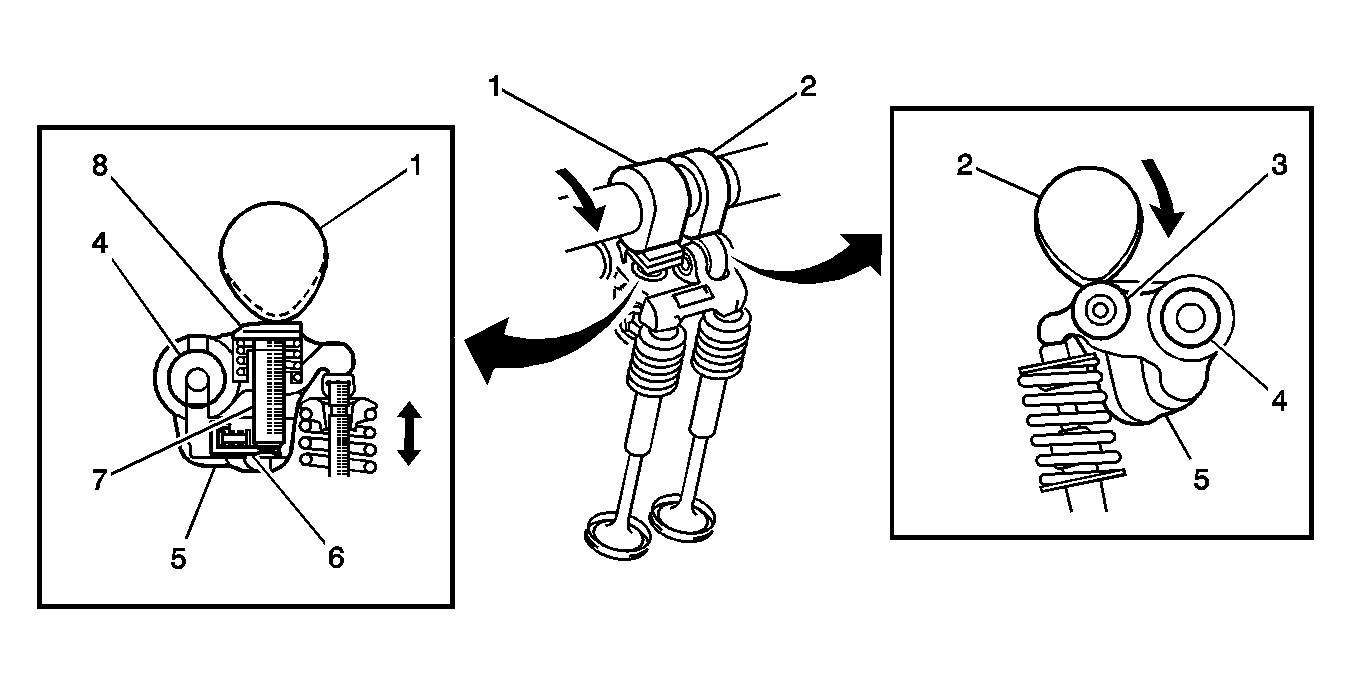

Fig 2: Rocker Arm Operation Component View

Courtesy of GENERAL MOTORS CORP.

Each rocker arm opens and closes both intake or exhaust valves simultaneously. The rocker arms also follow both the low/medium speed camshaft lobes (2) and high speed camshaft lobes (1) at all times. The low/medium speed cam lobe (2) rides on a hardened steel roller (3). The high speed cam lobe (1) rides on a steel pad follower (8). The steel pad (8) sits on top of a piston (7) that is normally supported by a spring and is free to move up and down against the cam lobe (1). Because the follower piston spring is weaker than the valve springs, the cam follower (8) moves away from the cam lobe (1) instead of the rocker arm (5). Therefore, with no oil pressure applied to the rocker arm, the low/medium speed cam lobe (2) opens and closes the valves.

When the rocker arm oil control solenoid turns ON, oil flows from the rocker arm shaft into an oil passage in the rocker arm. The oil passage leads to a spring loaded lock pin (6) that is normally resting beyond the travel of the piston (7). With the solenoid ON, oil flow creates pressure within the rocker arm oil passage and moves the lock pin (6) underneath the piston (7). The piston and cam follower (8) can no longer move away from the cam lobe (1) and the rocker arm now moves with the high lift cam lobe (1).

Fig 3: Low-Medium Speed Cam Operation Component View

Courtesy of GENERAL MOTORS CORP.

The rocker arm oil control solenoid (6) is commanded OFF by the PCM (5) at engine speeds below 6,000 RPM. With the solenoid OFF, oil that flows into the oil supply passage (8) easily flows out through the solenoid (6) and the return oil passage (7). There is adequate oil for lubrication of the rocker arms and shafts (9), but because the flow is unrestricted there is no increase in oil pressure. Without significant oil pressure in the rocker arms (1) the low/medium speed cam followers (2) operate the valve train. The rocker arm oil pressure switch (4) is closed.

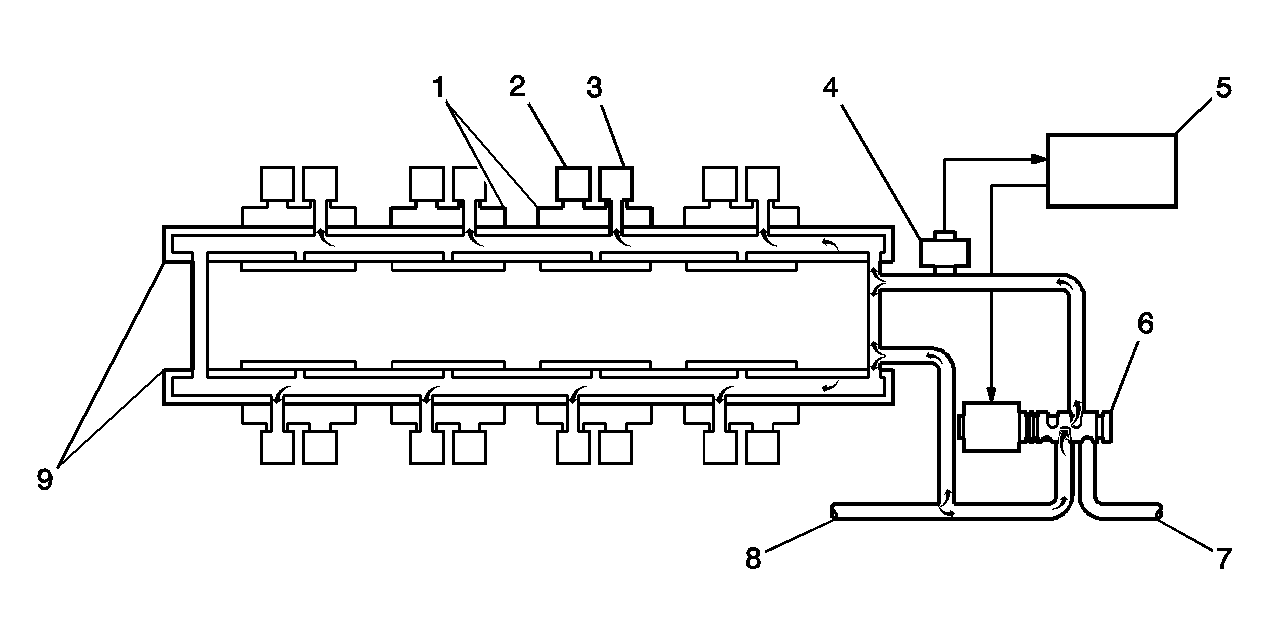

Fig 4: High Speed Cam Operation Component View

Courtesy of GENERAL MOTORS CORP.

The rocker arm oil control solenoid (6) is commanded ON by the PCM (5) at engine speeds above 6,000 RPM. With the solenoid ON, oil that flows into the oil supply passage (8) is blocked by the solenoid (6) from the return oil passage (7). This creates significant oil flow to the rocker shafts (9) and the rocker arms (1). Oil pressure increases in the rocker arms (1) and the high speed cam followers (3) operate the valve train. The rocker arm oil pressure switch (4) is open.
