Entertainment Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

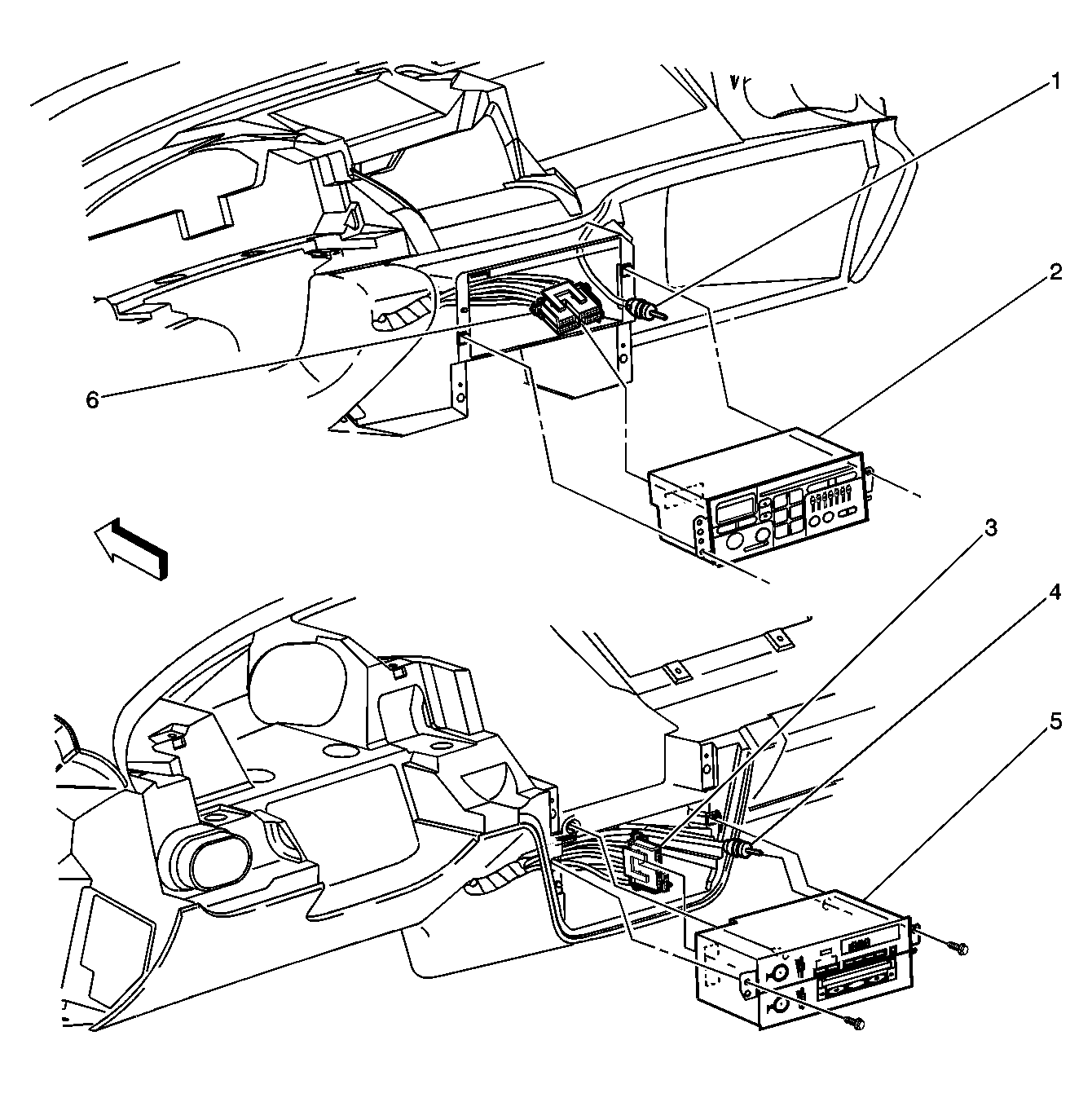

| Callout | Component Name |
|---|---|
| 1 | Antenna Lead (Pontiac) |
| 2 | Radio (Pontiac) |
| 3 | Radio Connector (Chevrolet) |
| 4 | Antenna Lead (Chevrolet) |
| 5 | Radio (Chevrolet) |
| 6 | Radio Connector (Pontiac) |
| Callout | Component Name |
|---|---|
| 1 | Headliner |
| 2 | OnStar Cellular Antenna |
| 3 | Headliner Wiring Harness |
| 4 | Shelf Panel |
| 5 | Navigation Antenna |
| 6 | Digital Radio Receiver |
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Side Impact Sensor - LF (Sedan) |
| 2 | Door Lock Connector - LF |
| 3 | Outside Rearview Mirror Switch - LF |
| 4 | Outside Rearview Mirror - LF Connector |
| 5 | Outside Rearview Mirror Switch Connector - LF |
| 6 | Window Motor Connector |
| 7 | Speaker - LF |
| 8 | Speaker Connector - LF |
| 9 | Door Lock Switch Connector - LF |
| 10 | Inflatable Restraint Side Impact Sensor - LF (Coupe) |
| 11 | Door Jamb Switch - LF |
| 12 | Center Pillar - Left (Sedan) |

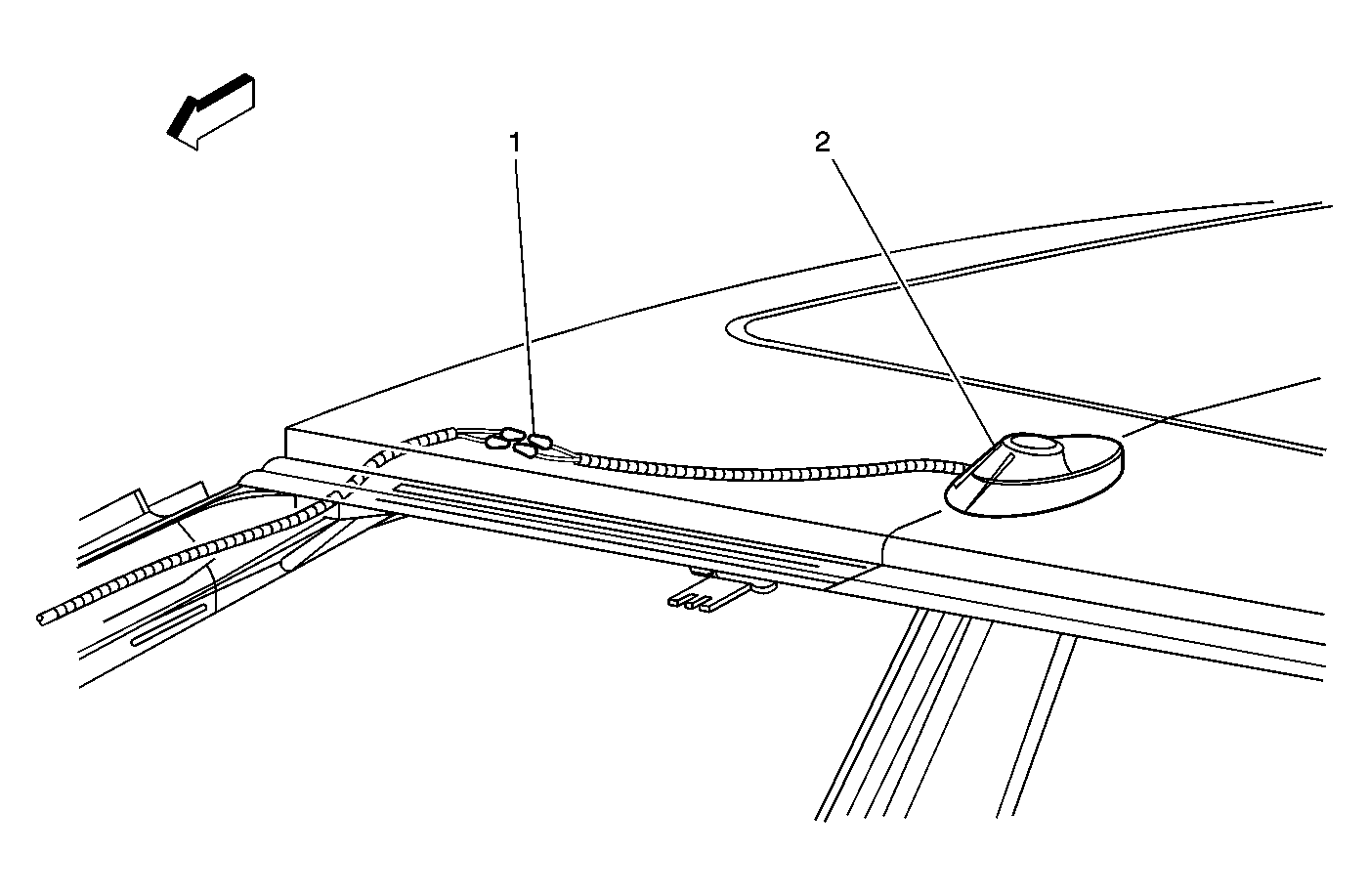

| Callout | Component Name |
|---|---|
| 1 | Pigtail Connector |
| 2 | Digital Radio Antenna |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror Switch Connectors |
| 2 | Inflatable Restraint Side Impact Sensor - RF (Sedan) |
| 3 | Door Lock Connector |
| 4 | Center Pillar - Right (Sedan) |
| 5 | Door Jamb Switch - Passenger |
| 6 | Inflatable Restraint Side Impact Sensor - RF (Coupe) |
| 7 | Door Lock Switch Connector |
| 8 | Speaker Connector |
| 9 | Speaker |
| 10 | Window Motor Connector |

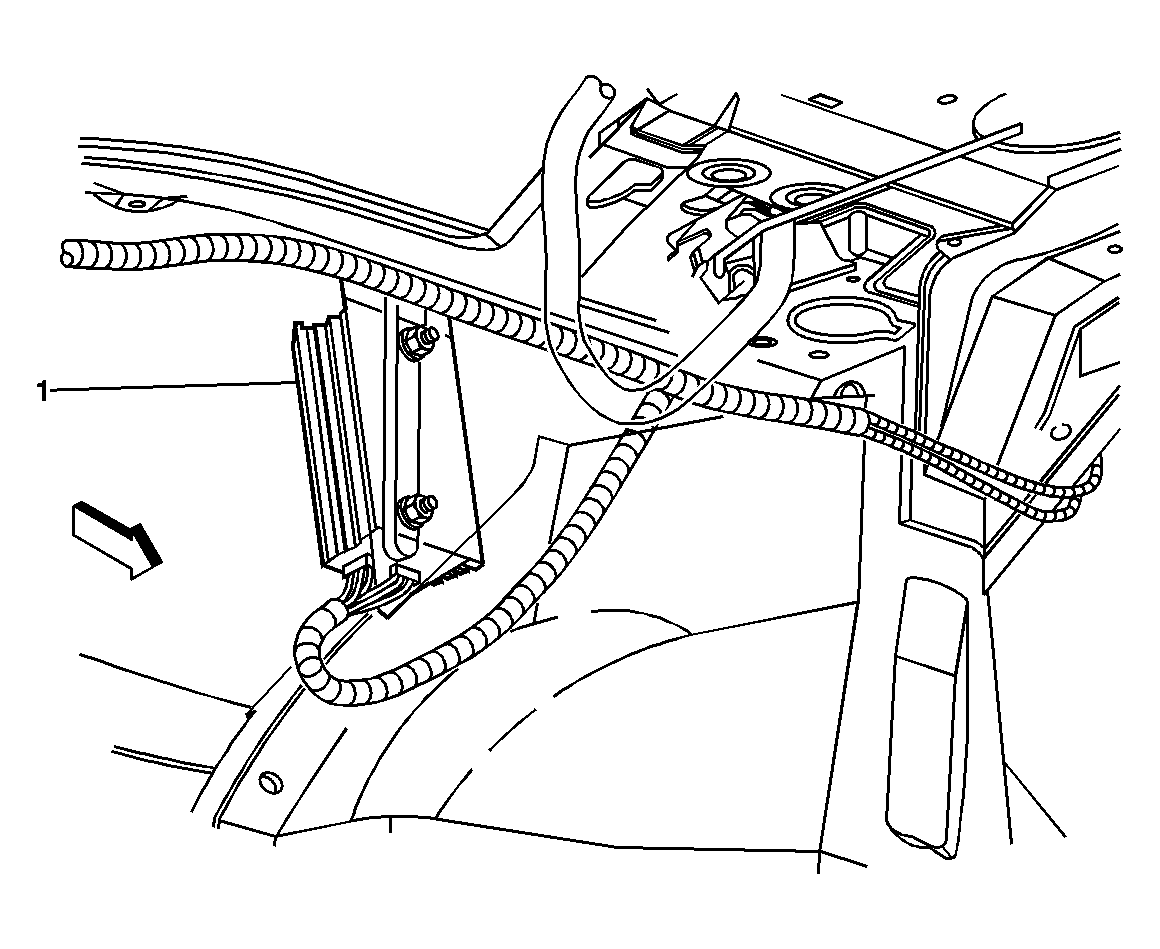

| Callout | Component Name |
|---|---|
| 1 | Audio Amplifier (U85) |
| Callout | Component Name |
|---|---|
| 1 | Left Rear Speaker |
| 2 | Right Rear Speaker |
| 3 | Center High Mounted Stop Lamp-Chevrolet (-T43) |
