Power Seat Systems Connector End Views

I/P Switch Assembly C2

GM73235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047976
  • 8-Way F Metri-Pack 280 Series (BU)
Pin Wire Color Circuit No. Function
A GY 8 Instrument Panel Lamp Supply Voltage - 1
B BK 150 Ground
C L-GN 911 Rear Defog Relay Coil Supply Voltage
D L-BU 1462 Driver Heated Seat Switch Signal
E L-BU/BK 1505 Front Passenger Heated Seat Switch Signal
F-H - - Not Used
Memory Seat and Mirror Module C1 (A43)

GM38596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020557
  • 3-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BK 550 Ground
C OG 1140 Battery Positive Voltage
Memory Seat and Mirror Module C2 (A43)

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A GY 286 Driver Seat Front Vertical Motor Up Control
B WH 287 Driver Seat Front Vertical Motor Down Control
C L-BU 283 Driver Seat Rear Vertical Motor Down Control
D YE 282 Driver Seat Rear Vertical Motor Up Control
E L-GN 284 Driver Seat Horizontal Motor Rearward Control
F TN 285 Driver Seat Horizontal Motor Forward Control
G-H - - Not Used
Memory Seat and Mirror Module C3 (A43)

GM130690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110206
  • 24-Way F Micro-Pack 100 Series (L-BU)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 D-BU 672 5-Volt Reference
A3 GY 786 Driver Mirror Horizontal Position Sensor Signal
A4 D-GN 784 Driver Mirror Vertical Position Sensor Signal
A5 L-BU/BK 785 Passenger Mirror Horizontal Position Sensor Signal
A6 BN 787 Passenger Mirror Vertical Position Sensor Signal
A7 OG 917 5-Volt Reference
A8 BK 918 Low Reference
A9 - - Not Used
A10 L-GN 921 Driver Seat Horizontal Position Sensor Signal
A11 TN 920 Driver Seat Rear Vertical Position Sensor Signal
A12 BN/WH 919 Driver Seat Front Vertical Position Sensor Signal
B1 - - Not Used
B2 BN 673 Low Reference
B3 - - Not Used
B4 RD/WH 881 Passenger Mirror Motor Right Control
B5 GY 90 Passenger Mirror Motor Left Control
B6 PU/WH 889 Passenger Mirror Motor Down Control
B7-B9 - - Not Used
B10 WH 81 Driver Mirror Motor Right Control
B11 L-BU 82 Driver Mirror Motor Left Control
B12 L-GN 89 Driver Mirror Motor Down Control
Memory Seat and Mirror Module C4 (A43)

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 PU 616 Memory 2 Switch Signal
A3 WH 615 Memory 1 Switch Signal
A4-A5 - - Not Used
A6 L-GN 911 Driver Seat Horizontal Rearward Switch Signal
A7 TN 912 Driver Seat Horizontal Forward Switch Signal
A8 L-BU 910 Driver Seat Rear Vertical Down Switch Signal
A9 YE 909 Driver Seat Rear Vertical Up Switch Signal
A10 WH 950 Driver Seat Front Vertical Down Switch Signal
A11 GY 913 Driver Seat Front Vertical Up Switch Signal
A12 - - Not Used
B1 BN/WH 1048 Class 2 Serial Data
B2-B3 - - Not Used
B4 TN/WH 915 Mirror Switch Supply Voltage
B5 OG 908 Driver Seat Switch Supply Voltage
B6 - - Not Used
B7 RD/WH 1513 Passenger Mirror Switch Right Signal
B8 WH 1512 Driver Mirror Switch Right Signal
B9 PU/WH 1515 Passenger Mirror Switch Down Signal
B10 L-GN 1514 Driver Mirror Switch Down Signal
B11 YE 1496 Mirror Motor Left/Up Control
B12 - - Not Used
Memory Seat and Mirror Switch (A43)

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 615 Memory 1 Switch Signal
B PU 616 Memory 2 Switch Signal
C BK 550 Ground
D GY 8 Instrument Panel Lamp Supply Voltage
Seat Adjuster Motor Assembly - Driver (AG1)

GM62456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A TN 285 Driver Seat Horizontal Motor Forward Control
B L-GN 284 Driver Seat Horizontal Motor Rearward Control
C GY 286 Driver Seat Front Vertical Motor Up Control
D WH 287 Driver Seat Front Vertical Motor Down Control
E YE 282 Driver Seat Rear Vertical Motor Up Control
F L-BU 283 Driver Seat Rear Vertical Motor Down Control
Seat Adjuster Motor Assembly - Front Passenger (AG2)

GM62456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A TN 285 Driver Seat Horizontal Motor Forward Control
B L-GN 284 Driver Seat Horizontal Motor Rearward Control
C D-GN 286 Driver Seat Front Vertical Motor Up Control
D D-BU 287 Driver Seat Front Vertical Motor Down Control
E YE 282 Driver Seat Rear Vertical Motor Up Control
F L-BU 283 Driver Seat Rear Vertical Motor Down Control

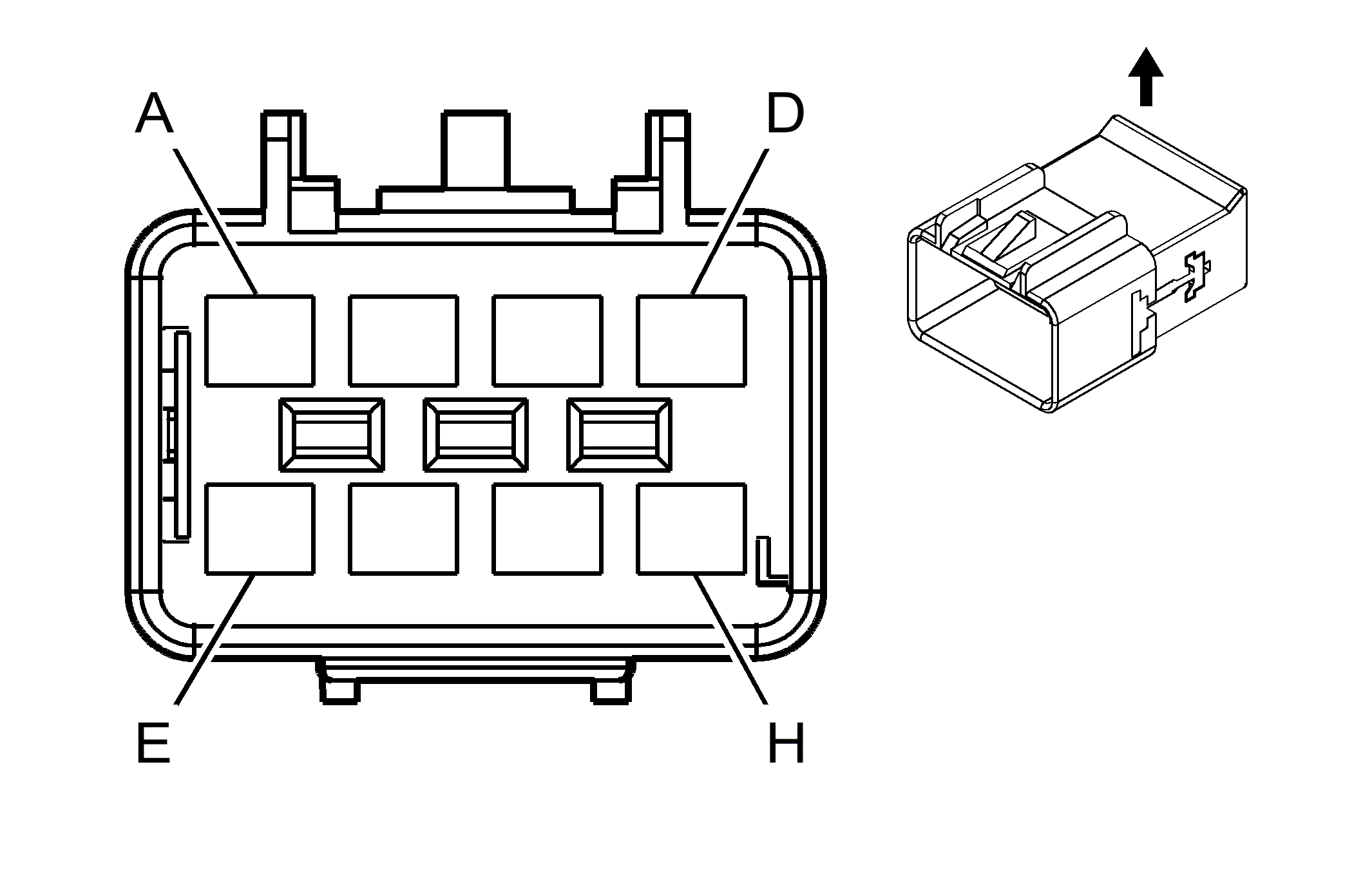

Seat Adjuster Switch - Driver (w/o A43)

GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326928
  • 8-Way M 280 GT (BK)
Pin Wire Color Circuit No. Function
A OG 1140 Battery Positive Voltage
B YE 282 Driver Seat Rear Vertical Up Switch Signal
C L-BU 283 Driver Seat Rear Vertical Down Switch Signal
D L-GN 284 Driver Seat Horizontal Rearward Switch Signal
E TN 285 Driver Seat Horizontal Forward Switch Signal
F D-GN 286 Driver Seat Front Vertical Up Switch Signal
G D-BU 287 Driver Seat Front Vertical Down Switch Signal
H BK 550 Ground
Seat Adjuster Switch - Driver (A43)

GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326928
  • 8-Way M 280 GT (BK)
Pin Wire Color Circuit No. Function
A OG 908 Battery Positive Voltage
B YE 909 Driver Seat Rear Vertical Up Switch Signal
C L-BU 910 Driver Seat Rear Vertical Down Switch Signal
D L-GN 911 Driver Seat Horizontal Rearward Switch Signal
E TN 912 Driver Seat Horizontal Forward Switch Signal
F GY 913 Driver Seat Front Vertical Up Switch Signal
G WH 950 Driver Seat Front Vertical Down Switch Signal
H - - Not Used
Seat Adjuster Switch - Front Passenger

GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326928
  • 8-Way M 280 GT (BK)
Pin Wire Color Circuit No. Function
A OG 1140 Battery Positive Voltage
B YE 282 Driver Seat Rear Vertical Motor Down
C L-BU 283 Driver Seat Rear Vertical Motor Up
D L-GN 284 Driver Seat Horizontal Motor Rearward
E TN 285 Driver Seat Horizontal Motor Forward
F D-GN 286 Driver Seat Front Vertical Motor Up
G D-BU 287 Driver Seat Front Vertical Motor Down
H BK 550 Ground
Seat Front Vertical Motor Position Sensor - Driver (A43)

GM900006Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 104257-2
  • 3-Way F Amp (BK)
Pin Wire Color Circuit No. Function
A BK - 5-Volt Reference
B BN/WH - Front Vertical Seat Motor Position Sensor Signal
C OG - Low Reference
Seat Horizontal Motor Position Sensor - Driver (A43)

GM900006Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 104257-2
  • 3-Way F Amp (BK)
Pin Wire Color Circuit No. Function
A BK - 5-Volt Reference
B L-GN - Horizontal Seat Motor Position Sensor Signal
C OG - Low Reference
Seat Rear Vertical Motor Position Sensor - Driver (A43)

GM900006Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 104257-2
  • 3-Way F Amp (BK)
Pin Wire Color Circuit No. Function
A BK - 5-Volt Reference
B TN - Front Vertical Seat Motor Position Sensor Signal
C OG - Low Reference
