Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: Two similar modules were used in 2004. Refer to the parts catalog for the correct replacement.
  1. Position the antenna amplifier to the inner upper panel of the left rear window. Install the antenna amplifier bolt.

    Tighten:  Tighten the bolt to 3 N.m (27 lb in).

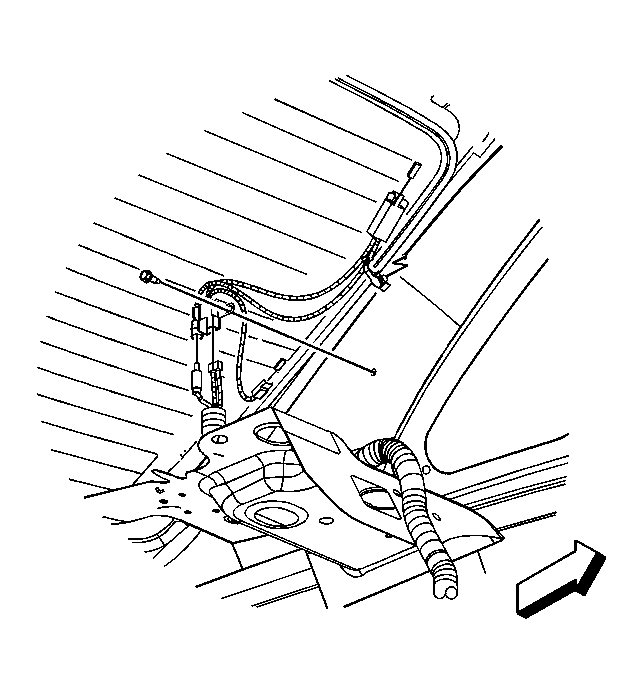

    2. Fig 1: Antenna Amplifier & Bolt
    GM1507201Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The antenna coaxial cable uses a sliding snap-lock. Holding the sliding lock feature will prevent installation.
  2. Connect the antenna amplifier electrical connectors:
    1. Position the antenna coaxial cable behind the sliding lock feature.
    2. Install the antenna coaxial cable to the sliding lock feature.
    3. IMPORTANT: If the wiring clip is faulty, replace the wiring clip prior to installation.
  3. Install the antenna leads to the rear window terminals. Push the wiring clip on the upper lead into the hex hole in the metal.
  4. Install the upper trim panel at the left rear quarter. Refer to Trim Panel Replacement - Rear Quarter Upper (Impala) or Trim Panel Replacement - Rear Quarter Upper (Monte Carlo) in Interior Trim.

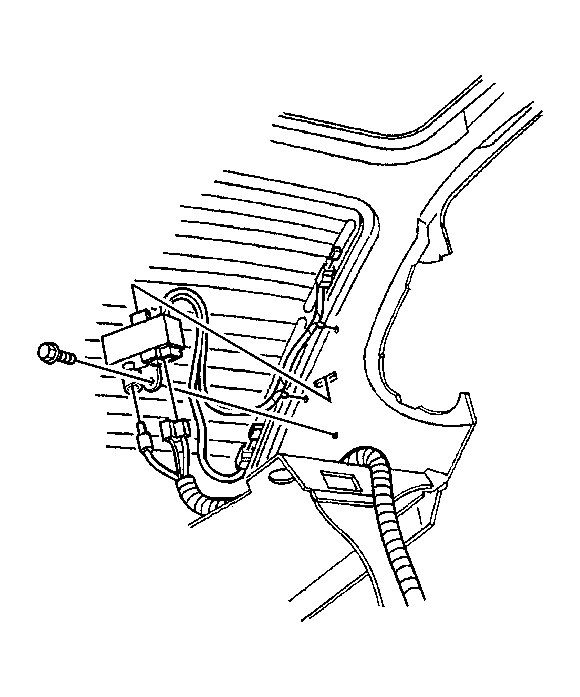

    5. Fig 2: Antenna Module
    GM443678Courtesy of GENERAL MOTORS CORP.
