Theft Deterrent System Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Speaker - Center (U87) |
| 2 |
Remote Control Door Lock Receiver (RCDLR) |
| 3 |
Ambient Light Sensor |
| 4 |
Theft LED |

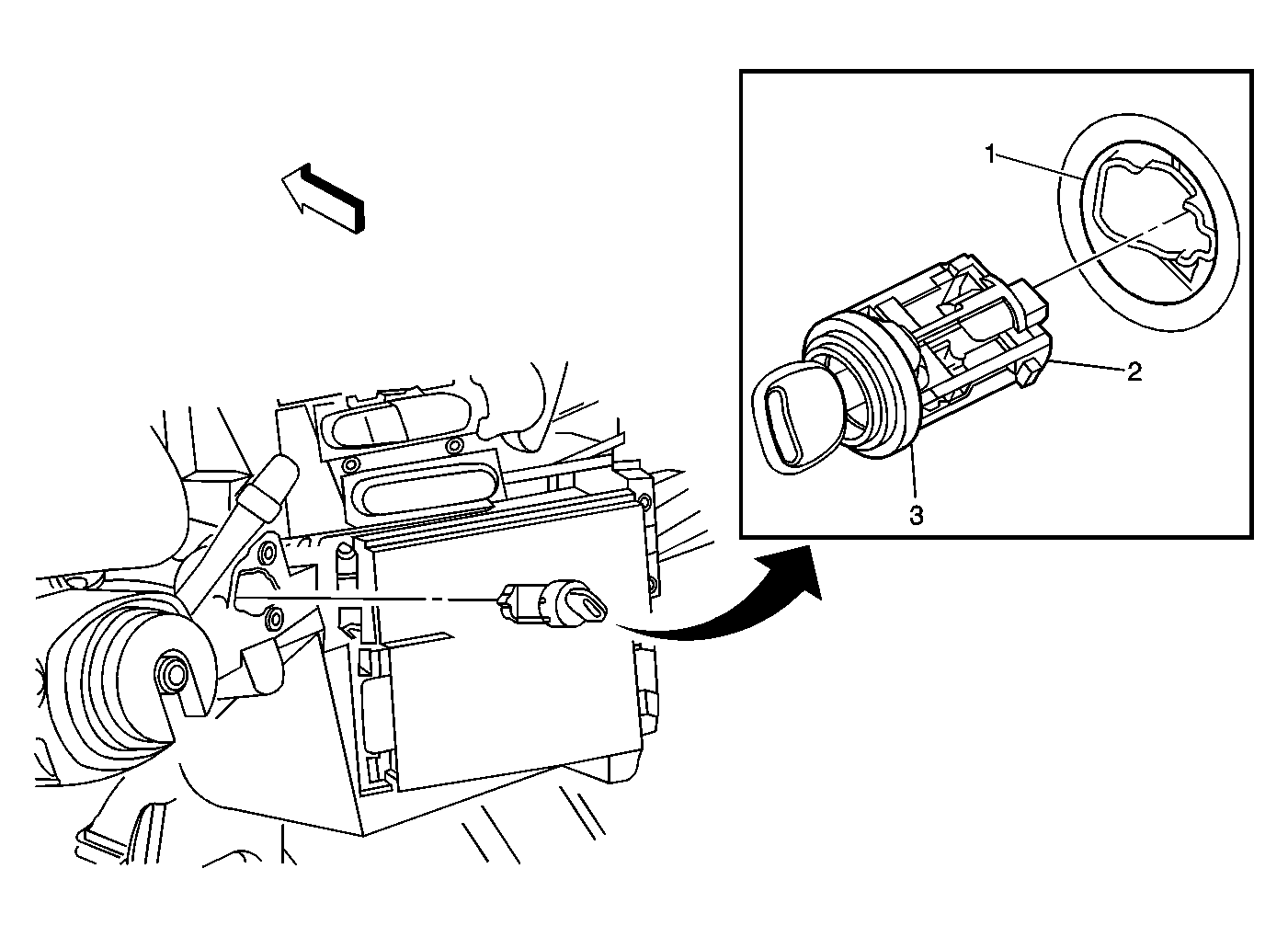

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Ignition Cylinder Housing |
| 2 |
Ignition Lock Cylinder |
| 3 |
Theft Deterrent Exciter Module |
