Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

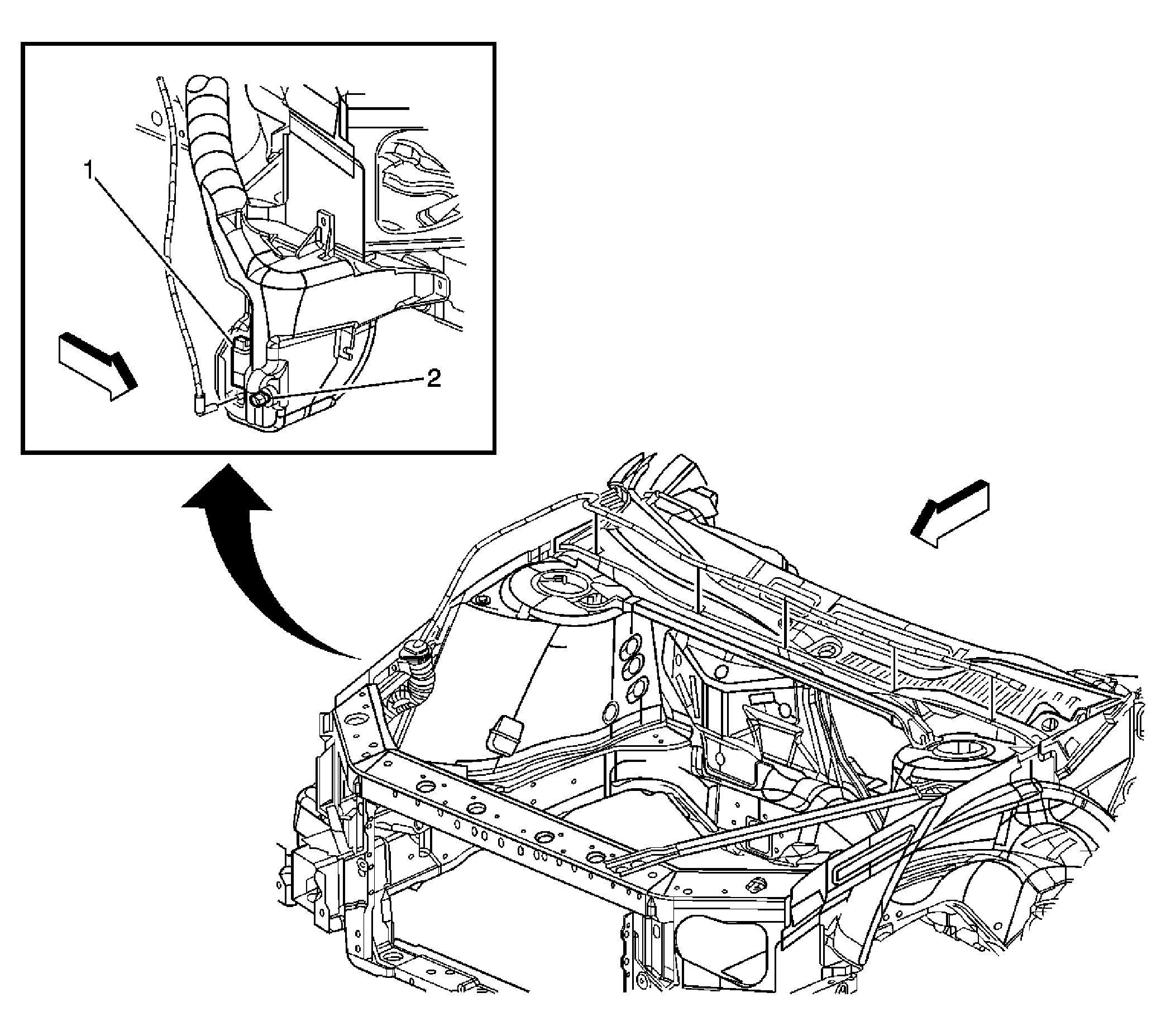

Fig 1: Right Front Of The Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Washer Fluid Level Switch

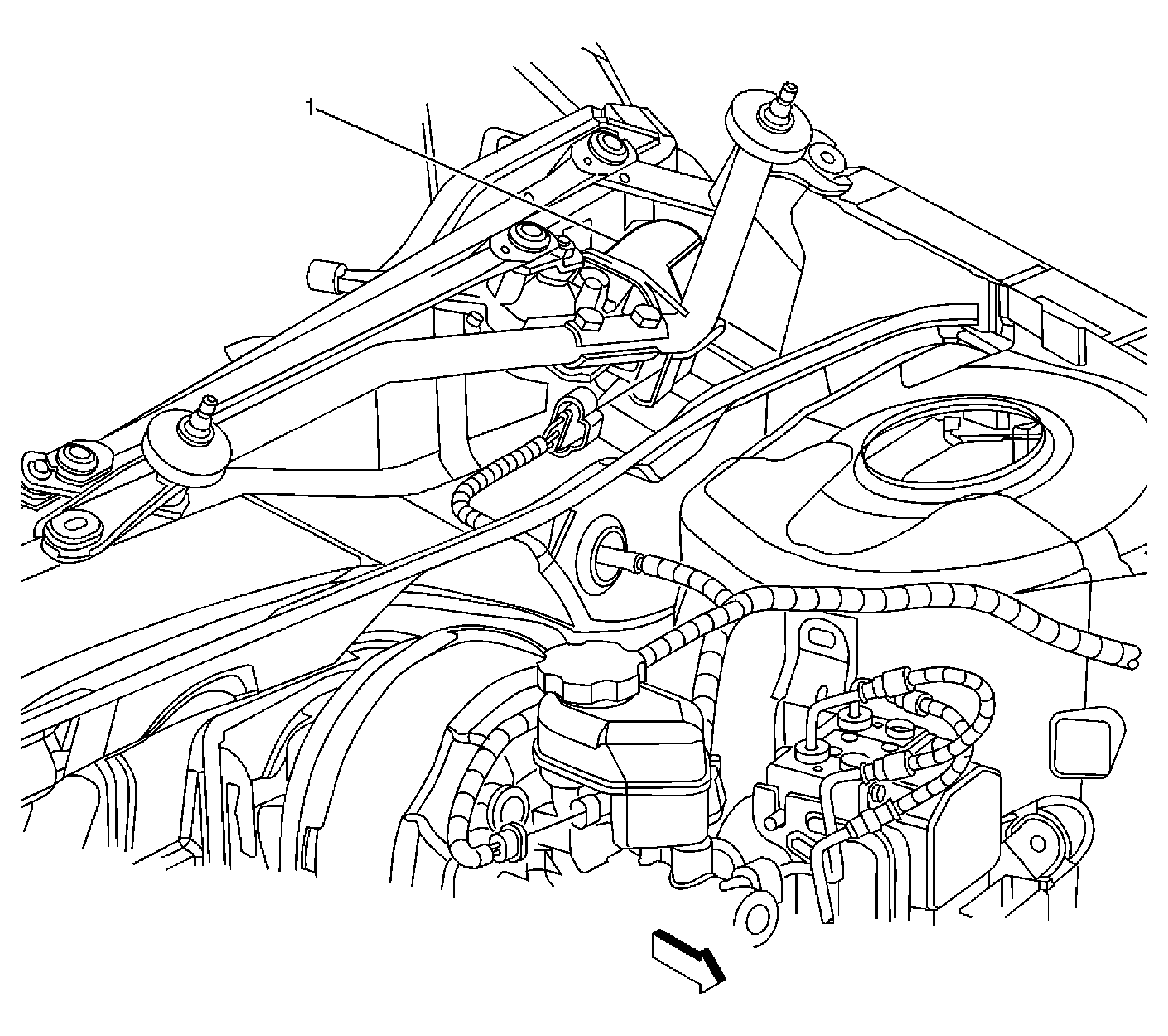

Fig 2: Left Rear Of The Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

Fig 3: Left Side Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Cruise Control Switch
16	Inflatable Restraint Steering Wheel Module
17	Tilt Steering Wheel Lever
18	Steering Wheel Controls - Left
19	Interior Lamp Switch
